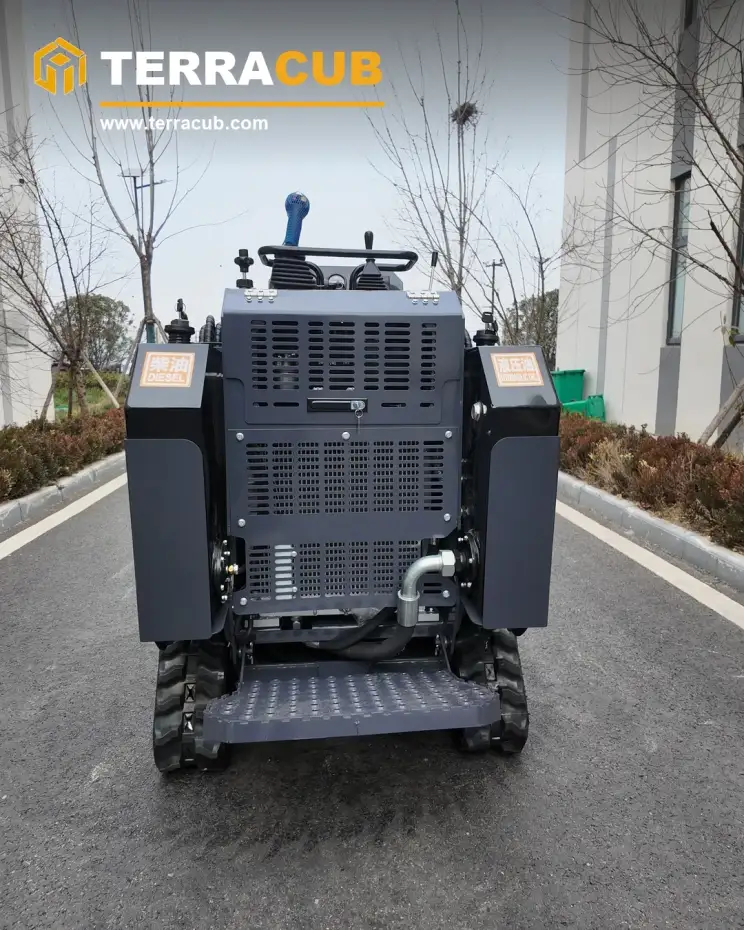

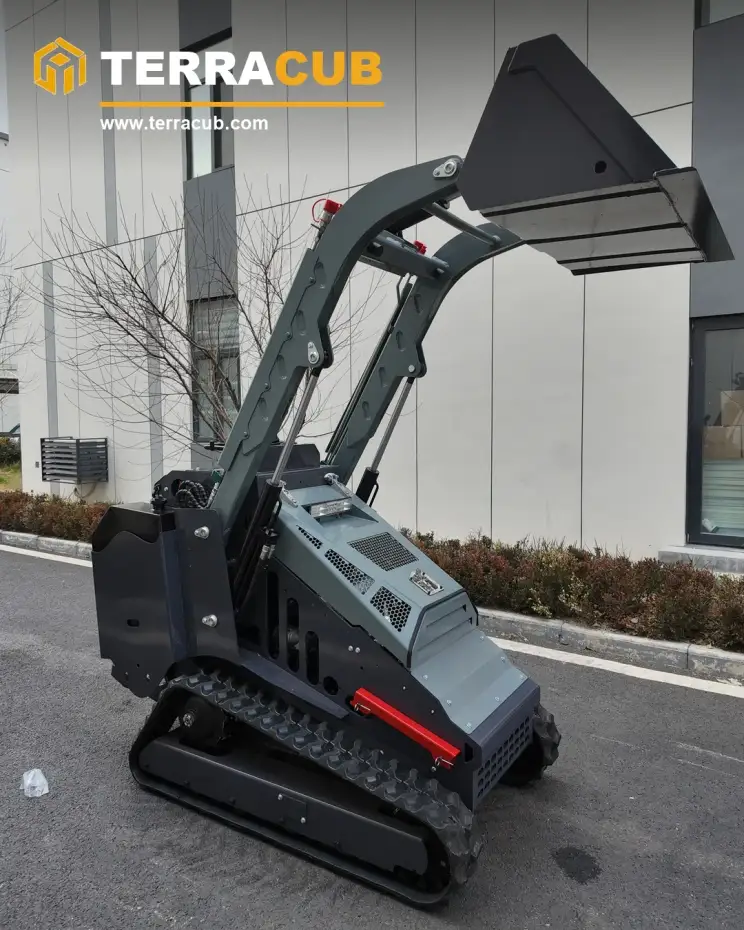

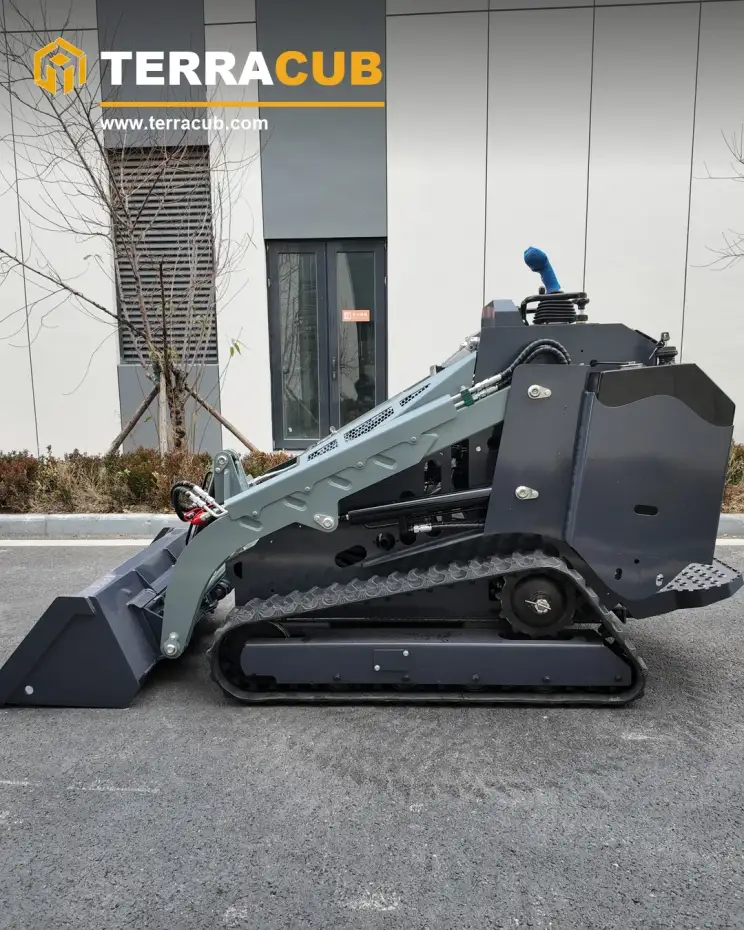

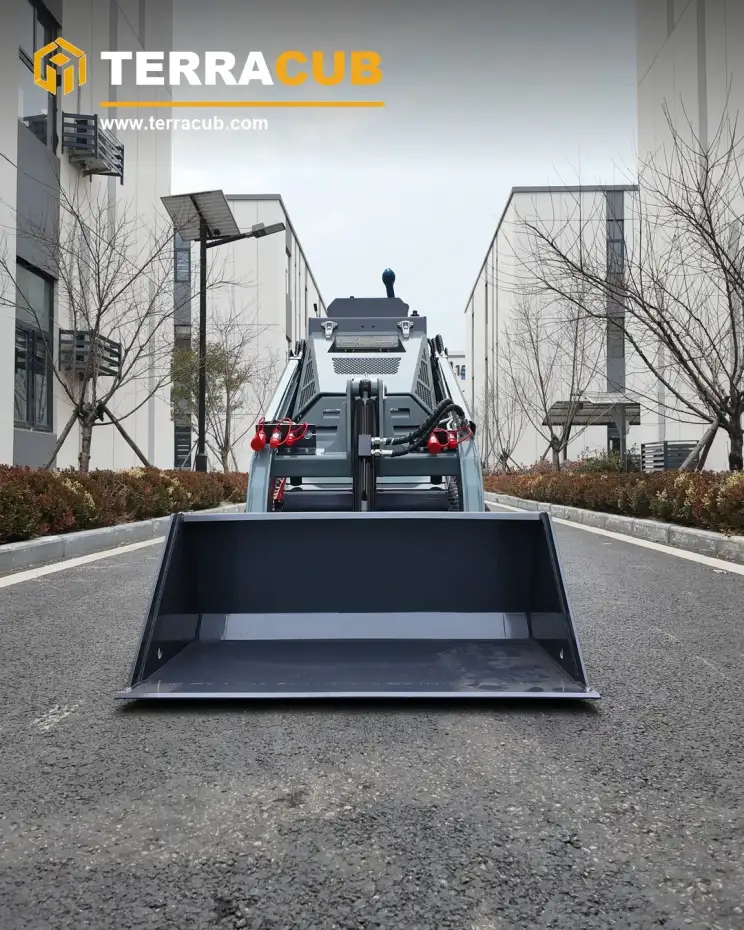

Compact Track Skid Steer Loader V800
Compact track loader with Kubota-backed positioning, stronger rated load, and a heavier-duty tracked platform for dealers and contractor buyers.
Where it works
Compact Loading Use Cases
Heavier Compact Loading
Higher-capacity tracked models fit serious contractor work, heavier material handling, and repeated loading cycles where smaller compact loaders fall short.
Farm, Yard, and Utility Support
A larger tracked platform helps with cleanup, feed or bulk handling, ground prep, and daily support tasks on sites with mixed surfaces.
Premium Dealer Lineups
These heavier track loaders give dealers a stronger top-end offering for buyers comparing payload, chassis size, and loading height.
Key points
What Buyers Usually Check
V800 steps up the compact track class with a larger bucket, stronger rated load, and a heavier-duty chassis profile.
The specification profile clearly positions it as a contractor-grade tracked loader instead of an entry compact unit.
A strong fit for buyers who want more than the small T-series without jumping all the way to the biggest V-platforms.
Full specifications
V800
| Operating weight | 1728 kg |
| Bucket capacity | 0.15 m3 |
| Climbing ability | 25 deg |
| Maximum breakout force | 4.5 kN |
| Rated load | 420 kg |
| Maximum load | 500 kg |
| Travel speed | 0-4 km/h |
| Max loading height | 2000 mm |
| Max dumping height | 1704 mm |
| Overall dimensions | 2651 x 1020 x 1573 mm |
Other models
Skid Steer Loader Range
450 kg | 0.22 m3
Skid Steer Loader 25
Small enclosed skid steer with solid tires, compact width, and light loading support for paved yards and confined sites.
886 kg | 0.4 m3
Skid Steer Loader S55
Closed-cab wheel loader with 0.4 m3 bucket, higher rated load, and faster travel for daily support work.
Track | High Tip
Compact Track Skid Steer Loader C1200
Red compact track loader media set with high-tip action, narrow-access framing, and general loading support positioning.
Mixer Setup | C1200
Skid Steer Loader C1200 Mixing Attachment
C1200 mixing configuration for compact batching, material prep, and narrow-access concrete workflows.
200 kg | 0.1 m3
Mini Skid Steer S360
Compact wheeled mini skid steer with reinforced tires, light rated load, and simple small-site support positioning.
180 kg | 0.07 m3
Mini Skid Steer S370
Wheeled loader with 0.07 m3 bucket, easy-control positioning, and higher travel speed for small-site work.
Quote
Quote V800
Email info@terracub.com or send a WhatsApp message with your quantity, project region, and application details.
