Ride-On Tandem Rollers

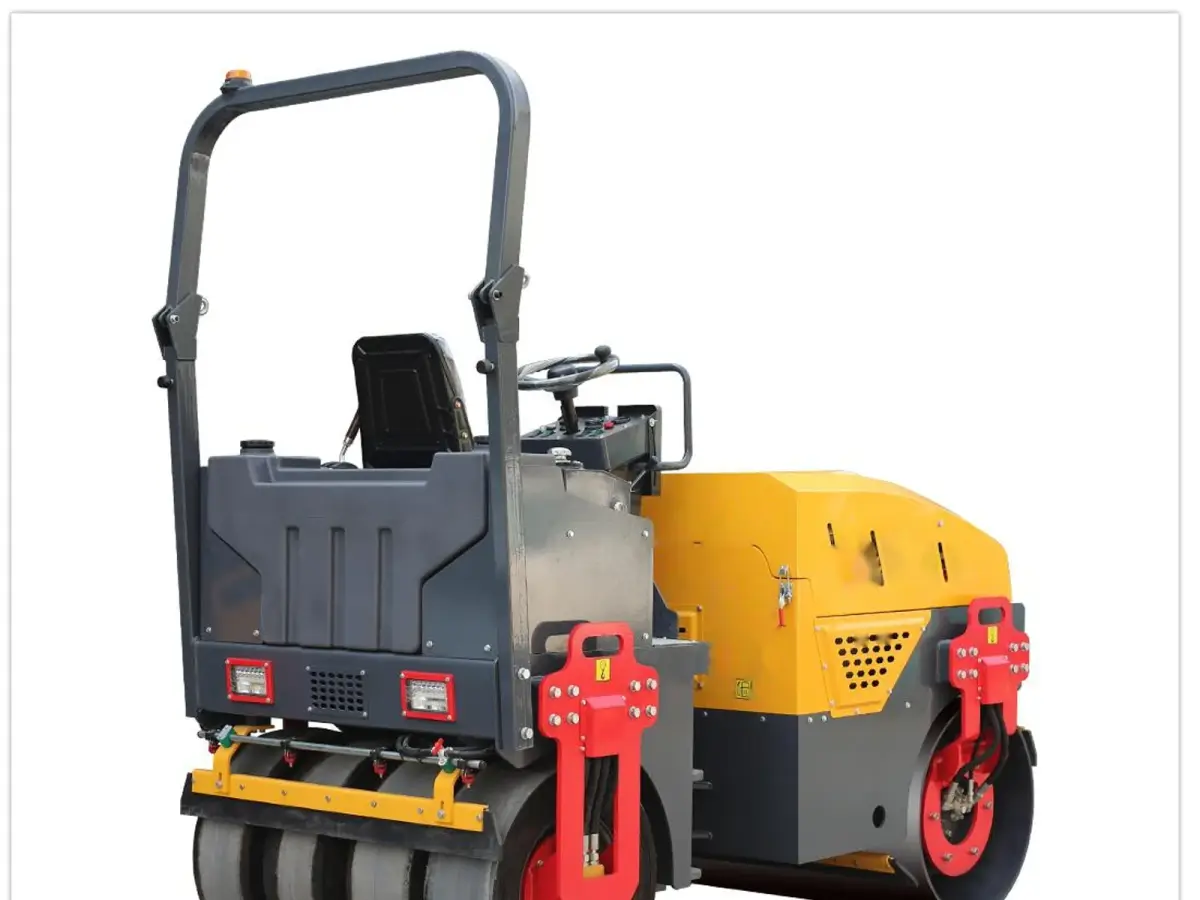

3-Ton Combination Road Roller (Steel Front / Rubber Rear) TC-JS1200T

TC-JS1200T

3-ton combination roller (steel drum front, rubber tyres rear), mainly used for asphalt rolling, lime-soil compaction and stabilised-base hardening. Changchai 390 diesel engine — excellent performance and strong power.

2840 kg
Operating weight
2620 kg
Net weight
39 hp / 2600 rpm
Engine

Applications

Where This Model Fits

01

Asphalt and Base Compaction

Ride-on tandem rollers in this class fit asphalt paving support, gravel-base compaction, and municipal maintenance with stronger daily output.

02

Paving Contractors and Road Crews

These models suit contractors who need hydraulic drive, stable vibration performance, and compact transport dimensions for recurring site work.

03

Dealer, Rental, and Municipal Supply

A strong category for dealers and fleet buyers adding compact road-construction equipment with clear model progression by weight and drum width.

Highlights

What Buyers Usually Check

3-ton combination roller (steel drum front, rubber tyres rear), mainly used for asphalt rolling, lime-soil compaction and stabilised-base hardening.

Changchai 390 diesel engine — excellent performance and strong power.

Brand-name variable piston pump builds a stable hydraulic system with stepless travel speed.

Brand-name piston motors with built-in neutral self-locking drive both axles for strong grade travel.

Front-drum hydraulic vibration with stable performance; four rear rubber tyres knead the surface for a denser, tighter finish.

Articulated frame with large oscillation angle resists tipping; hydraulic power steering is light and easy.

Large-capacity roto-moulded water tank — never rusts; electronically controlled pressure spray for even sprinkling.

Specifications

TC-JS1200T

Travel

Travel speed0–12 km/h
Turning radius3000 mm
Gradeability30%

Compaction

Static linear load (front/rear)125 / 87 N/cm
Nominal amplitude0.5 mm
Vibration frequency70 Hz
Exciting force45 kN

Operation

Drive typeHydraulic drive, front drum + rear wheels
VibrationHydraulic vibration, front drum
SteeringHydraulic steering
Water sprayElectronically controlled atomised water/oil spray
Water tank materialRoto-moulded tank
Water tank capacity180 L
Hydraulic oil tank40 L + 56 L
Parking brakeHydraulic self-locking

Engine

ModelChangchai 390
TypeDiesel, vertical 3-cylinder, water-cooled
Power39 hp / 2600 rpm
Fuel tank capacity36 L
Optional engines (EPA / Euro V / China II / China IV)Changchai 390 / Kubota V1505 / Yanmar 386 — other engines on request

Dimensions

Drum width (front)1200 mm
Drum diameter (front)710 mm
Rubber tyres9.5/65-15 × 4
Overall length2700 mm
Overall width1320 mm
Overall height (excl. roll bar)1900 mm
Packing size2800 × 1350 × 1900 mm

Weight

Net weight2620 kg
Operating weight2840 kg
