Mini Ride-On Rollers

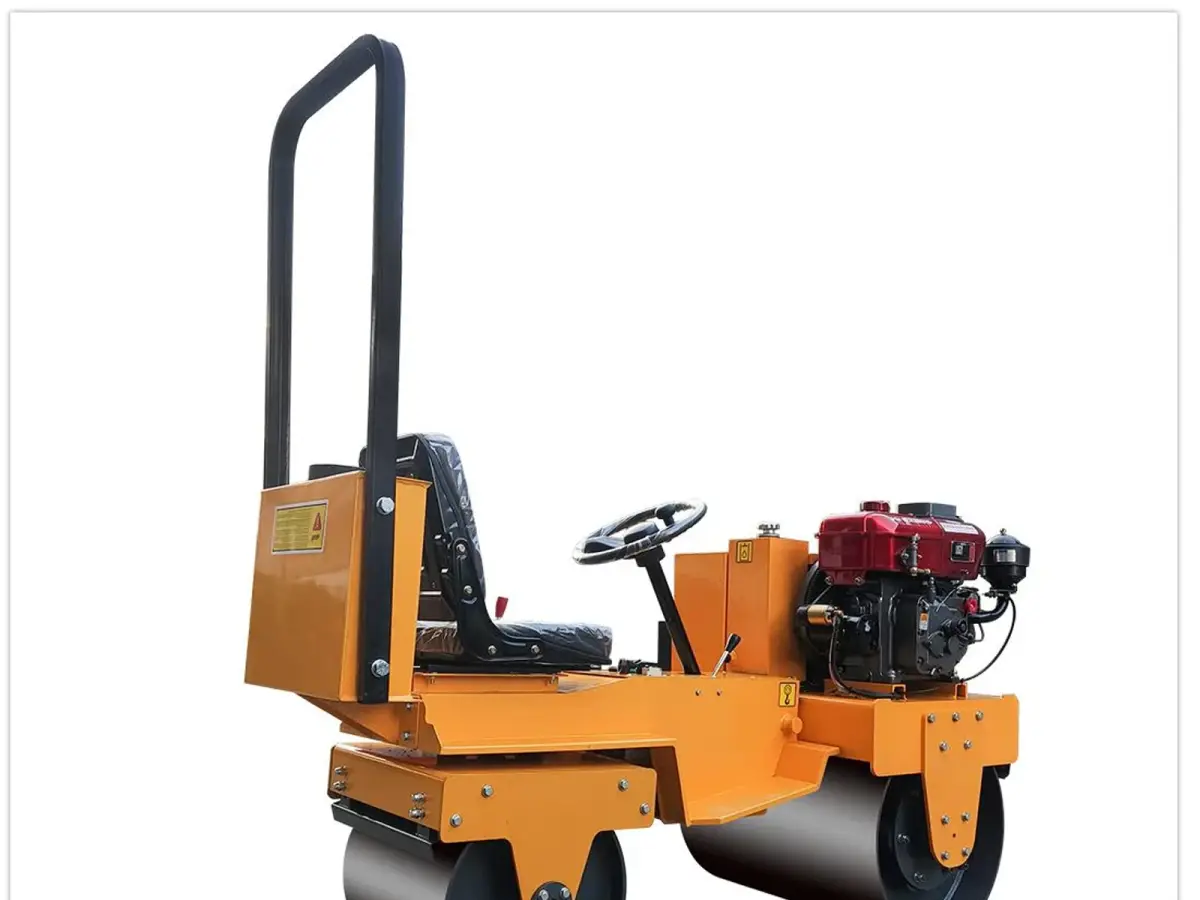

Mini Ride-On Road Roller (Water-Cooled) TC-JS700C

TC-JS700C

Mini ride-on roller widely used to compact asphalt surfaces, gravel and sandy engineering foundations; high performance, easy operation, long service life. Changchai water-cooled diesel engine with electric start — strong power, easy starting.

730 kg
Operating weight
630 kg
Net weight
700 mm
Drum width
8 hp / 2300 rpm
Engine
TerraCub Mini Ride-On Road Roller (Water-Cooled) TC-JS700C image 1

Applications

Where This Model Fits

01

Tight-Site Compaction

Mini ride-on rollers are useful on courtyards, estate paving, landscaping, and smaller asphalt jobs where walk-behind productivity is no longer enough.

02

Contractor Upgrade Path

They give smaller paving and maintenance teams a seated operator platform without stepping into much larger tandem-roller classes.

03

Compact Fleet Expansion

These models are a clean fit for buyers who want ride-on compaction equipment beside compact loaders, dumpers, and excavators.

Highlights

What Buyers Usually Check

Mini ride-on roller widely used to compact asphalt surfaces, gravel and sandy engineering foundations; high performance, easy operation, long service life.

Changchai water-cooled diesel engine with electric start — strong power, easy starting.

International-brand NSK high-precision self-aligning ball bearings ensure sound overall performance.

Bidirectional hydrostatic stepless travel; small working radius, easy control, agile steering and high working efficiency.

Powder-coated finish — good-looking, rust-proof and corrosion-resistant.

Specifications

TC-JS700C

Travel

Travel speed0–6 km/h
Gradeability25%
Turning radius1800 mm

Compaction

Nominal amplitude0.5 mm
Vibration frequency75 Hz
Exciting force25 kN

Operation

Drive typeHydraulic pump and motor
VibrationOne-touch vibration, electromagnetic clutch, front drum
SteeringRear-wheel steering

Weight

Net weight630 kg
Operating weight730 kg

Engine

ModelChangchai R180
TypeDiesel, water-cooled
Power8 hp / 2300 rpm
Fuel tank capacity5.5 L
Optional engines (EPA / Euro V / China II / China IV)Changfa 178 / Honda GX270 / Changchai R180 / KOOP 178 / Briggs & Stratton — other engines on request

Dimensions

Drum width700 mm
Drum diameter530 mm
Overall length1880 mm
Overall width860 mm
Overall height1250 mm
Fumigation-free wooden case1800 × 930 × 1300 mm
Stackable steel-frame packing1850 × 900 × 2260 mm

Other models

Mini Road Roller Range

660 kg | 560 kg

Mini Ride-On Road Roller TC-JS700B

Mini ride-on roller widely used to compact asphalt surfaces, gravel and sandy engineering foundations; high performance, easy operation, long service life.

1100 kg | 970 kg

1-Ton Tandem Vibratory Road Roller TC-JSY700

1-ton fully hydraulic tandem vibratory roller, mainly used for vibratory compaction of water-stabilised base courses, lime soil, sand & gravel, asphalt pavement and pipe-trench backfill.

1270 kg | 1070 kg

1.5-Ton Fully Hydraulic Tandem Road Roller TC-JS800

1.5-ton fully hydraulic tandem vibratory roller, mainly used for vibratory compaction of water-stabilised base courses, lime soil, sand & gravel, asphalt pavement and pipe-trench backfill.

1750 kg | 1580 kg

2-Ton Fully Hydraulic Tandem Road Roller TC-JS1000

2-ton fully hydraulic tandem vibratory roller, mainly used for vibratory compaction of water-stabilised base courses, lime soil, sand & gravel, asphalt pavement and pipe-trench backfill.

2100 kg | 1890 kg

2.5-Ton Fully Hydraulic Tandem Road Roller TC-JS1100

2.5-ton fully hydraulic tandem vibratory roller; versatile, high-performing, easy to operate and durable.

3140 kg | 2900 kg

3-Ton Fully Hydraulic Tandem Road Roller TC-JS1200

3-ton fully hydraulic tandem vibratory roller; versatile, high-performing, easy to operate and durable.
