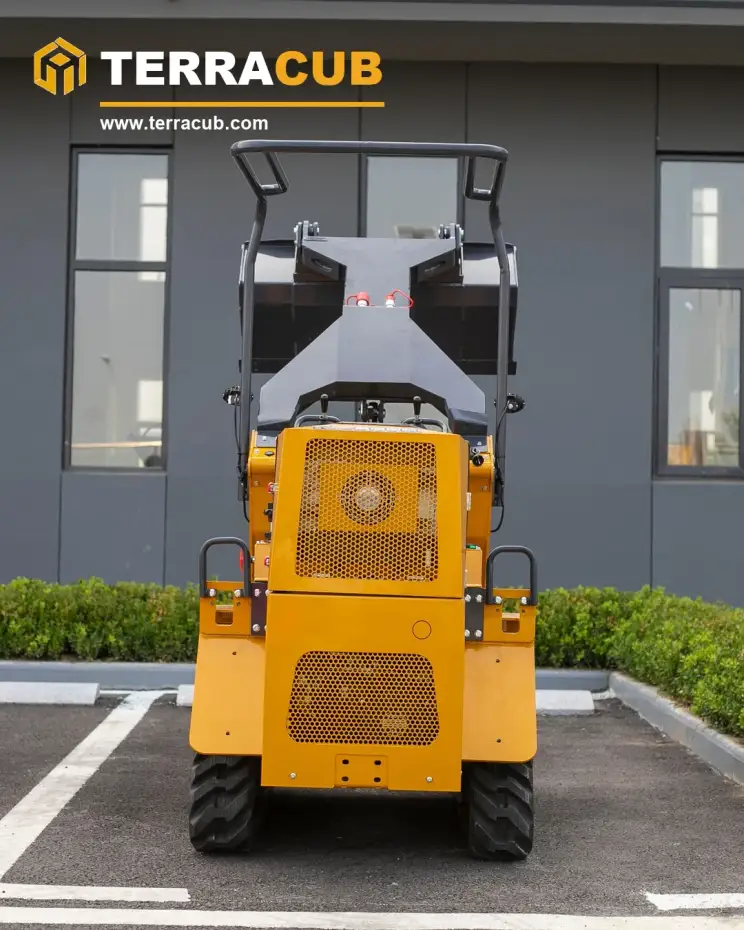

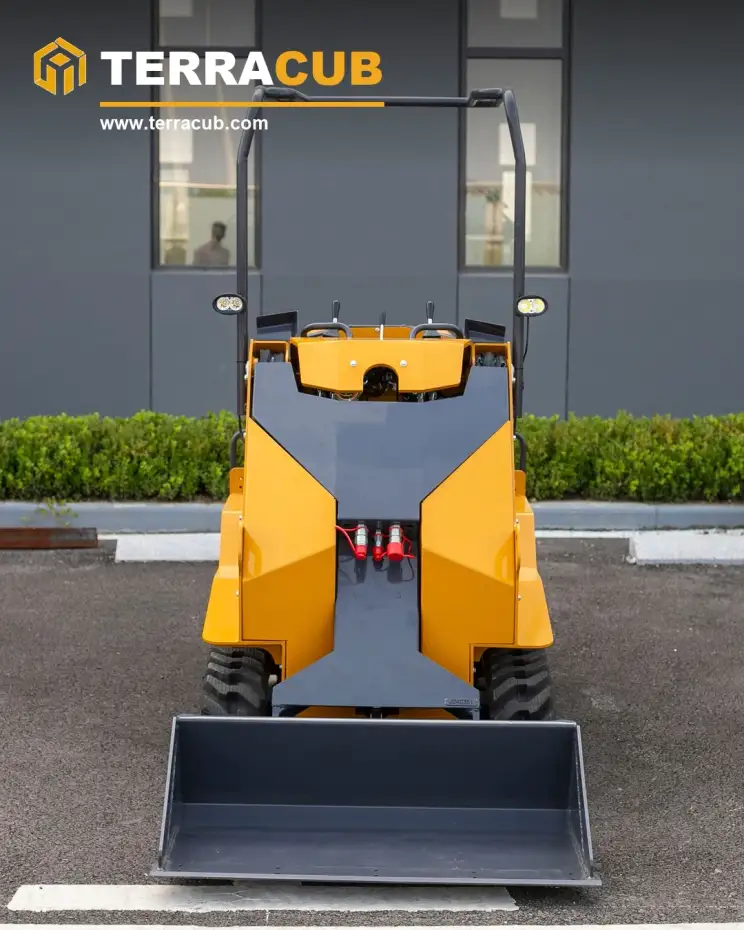

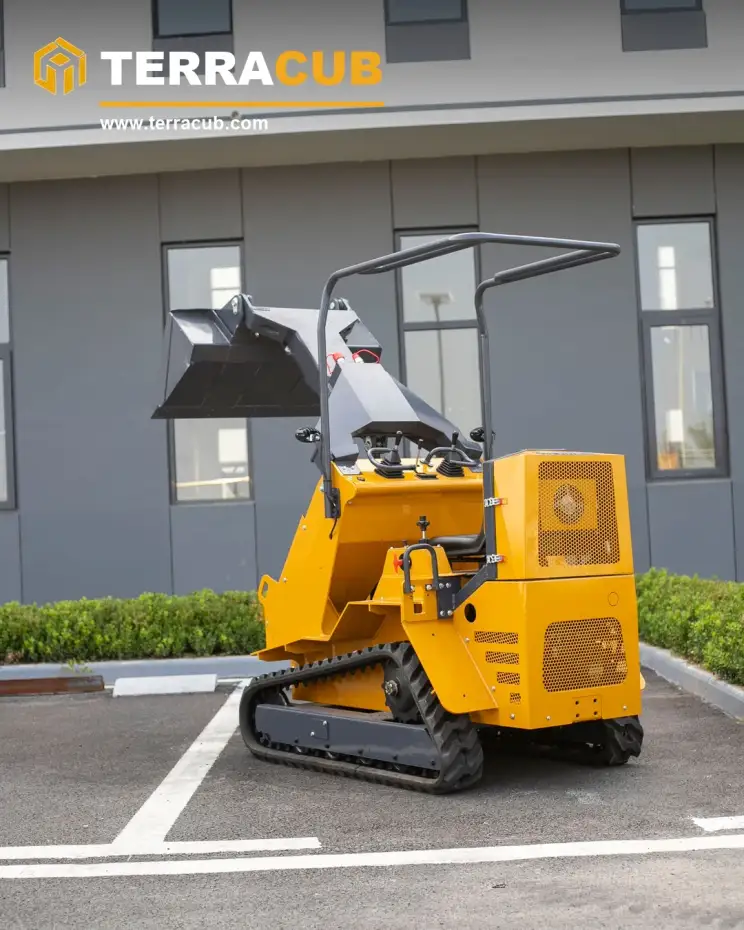

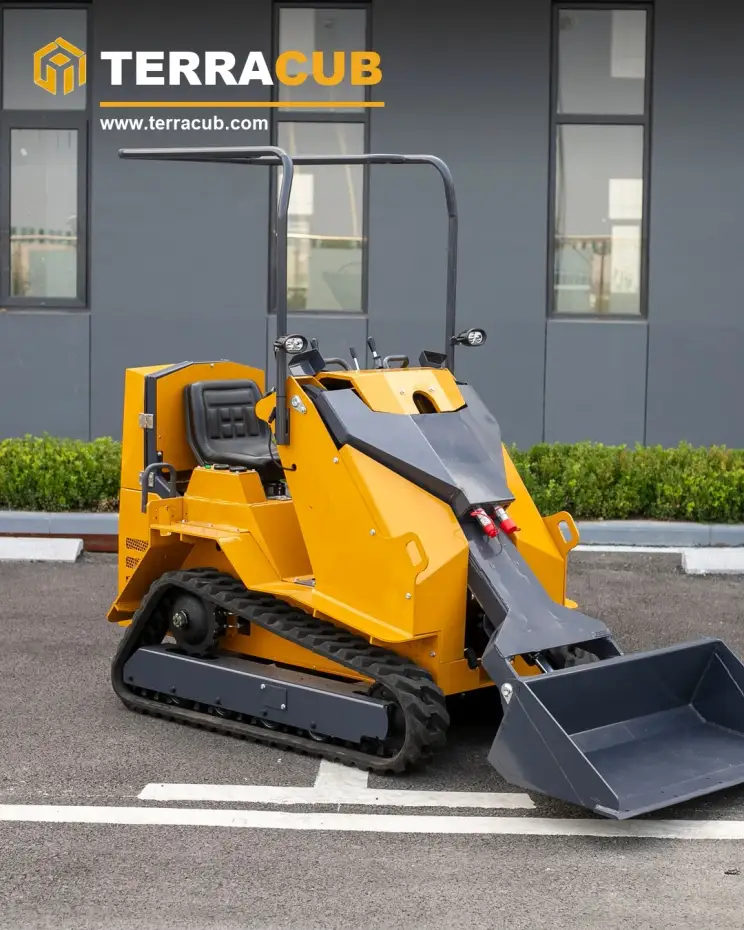

Mini Track Skid Steer Loader T390
Tracked mini loader with compact rider format, ergonomic seat positioning, and small-site loading support for landscaping and contractor work.
Where it works
Compact Loading Use Cases
Narrow-Access Site Work
Compact tracked loaders fit side lanes, service access, backyards, and contractor jobs where small width and good traction matter together.
Soft-Ground Loading Support
Rubber tracks help on loose fill, lawns, mud, and mixed terrain where wheeled units can lose grip or mark the surface more easily.
Compact Contractor Fleets
These machines work well for landscapers, property crews, and compact-equipment dealers building a broader tracked support range.
Key points
What Buyers Usually Check
The compact seated format gives T390 a different buyer fit from stand-on tracked units while staying narrow-access friendly.
The spec set and image coverage make it easy to pitch as a compact contractor or rental-fleet loader.
Useful for buyers who want tracked grip, a simple operator layout, and a lighter loader class than the V-series models.
Full specifications
T390
| Operating weight | 1070 kg |
| Bucket capacity | 0.1 m3 |
| Climbing ability | 25 deg |
| Maximum breakout force | 3.5 kN |
| Rated load | 250 kg |
| Maximum load | 300 kg |
| Travel speed | 0-5 km/h |
| Max loading height | 1830 mm |
| Max dumping height | 1400 mm |
| Overall dimensions | 2282 x 1050 x 1300 mm |
Other models
Skid Steer Loader Range
450 kg | 0.22 m3
Skid Steer Loader 25
Small enclosed skid steer with solid tires, compact width, and light loading support for paved yards and confined sites.
886 kg | 0.4 m3
Skid Steer Loader S55
Closed-cab wheel loader with 0.4 m3 bucket, higher rated load, and faster travel for daily support work.
Track | High Tip
Compact Track Skid Steer Loader C1200
Red compact track loader media set with high-tip action, narrow-access framing, and general loading support positioning.
Mixer Setup | C1200
Skid Steer Loader C1200 Mixing Attachment
C1200 mixing configuration for compact batching, material prep, and narrow-access concrete workflows.
200 kg | 0.1 m3
Mini Skid Steer S360
Compact wheeled mini skid steer with reinforced tires, light rated load, and simple small-site support positioning.
180 kg | 0.07 m3
Mini Skid Steer S370
Wheeled loader with 0.07 m3 bucket, easy-control positioning, and higher travel speed for small-site work.
