Ride-On Tandem Rollers

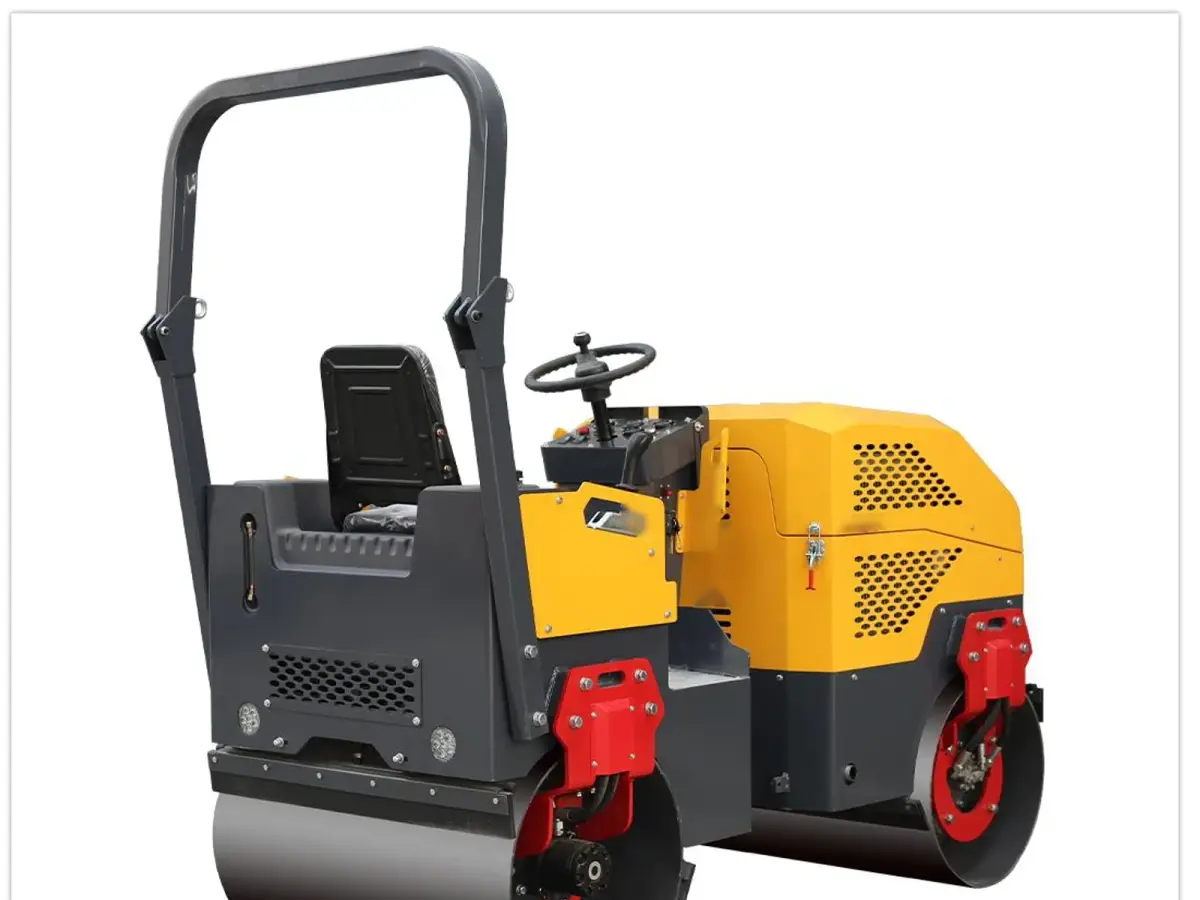

2-Ton Fully Hydraulic Tandem Road Roller TC-JS1000

TC-JS1000

2-ton fully hydraulic tandem vibratory roller, mainly used for vibratory compaction of water-stabilised base courses, lime soil, sand & gravel, asphalt pavement and pipe-trench backfill. Dual-drum hydraulic drive with strong gradeability; stepless speed control and hydraulic power steering make operation easy.

1750 kg
Operating weight
1580 kg
Net weight
1000 mm
Drum width
39 hp / 2600 rpm
Engine

Applications

Where This Model Fits

01

Asphalt and Base Compaction

Ride-on tandem rollers in this class fit asphalt paving support, gravel-base compaction, and municipal maintenance with stronger daily output.

02

Paving Contractors and Road Crews

These models suit contractors who need hydraulic drive, stable vibration performance, and compact transport dimensions for recurring site work.

03

Dealer, Rental, and Municipal Supply

A strong category for dealers and fleet buyers adding compact road-construction equipment with clear model progression by weight and drum width.

Highlights

What Buyers Usually Check

2-ton fully hydraulic tandem vibratory roller, mainly used for vibratory compaction of water-stabilised base courses, lime soil, sand & gravel, asphalt pavement and pipe-trench backfill.

Dual-drum hydraulic drive with strong gradeability; stepless speed control and hydraulic power steering make operation easy.

Brand-name orbital motor and variable-displacement piston pump form a stable, durable hydraulic system.

Japanese NSK high-precision self-aligning ball bearings extend the machine's service life.

Large-capacity roto-moulded water tank — never rusts; electronically controlled pressurised sprinkler sprays evenly.

Parking hand brake with anti-roll-away protection for safer parking.

Specifications

TC-JS1000

Travel

Travel speed0–12 km/h
Turning radius2300 mm
Gradeability30%

Compaction

Static linear load (front/rear)100 / 83 N/cm
Nominal amplitude0.5 mm
Vibration frequency70 Hz
Exciting force35 kN

Operation

Drive typeHydraulic dual-drum drive
VibrationHydraulic vibration, front drum
SteeringHydraulic steering
Water sprayElectronically controlled pressure spray
Water tank materialRoto-moulded tank
Water tank capacity108 L
Hydraulic oil tank26 L
Parking brakeHand brake

Engine

ModelChangchai 390
TypeDiesel, vertical 3-cylinder, water-cooled
Power39 hp / 2600 rpm
Fuel tank capacity26 L
Optional engines (EPA / Euro V / China II / China IV)Changchai 390 / Honda GX690 / Briggs & Stratton 3864 / Kubota D1105 — other engines on request

Dimensions

Drum width (front, rear)1000 mm
Drum diameter (front, rear)610 mm
Overall length2350 mm
Overall width1120 mm
Overall height (excl. roll bar)1600 mm
Fumigation-free wooden case2390 × 1220 × 1690 mm

Weight

Net weight1580 kg
Operating weight1750 kg
