Mini Dumper
1 Ton
The Lift 1000 carries 1,000 kg and lifts the bucket to 1,500 mm, the highest dump height in the TerraCub lineup. Briggs & Stratton 420 cc, 13.5 HP petrol engine. Built for steep slopes, concrete pours, and extended heavy-duty site work.
Where it works
Built for Steep Slopes & Heavy Lifts
Concrete Pours
Lift 1,000 kg of mixed concrete to 1,300 mm unload height and tip directly into elevated formwork or above retaining wall forms. Eliminates crane hire on smaller pours.
Terraced Gardens & Slopes
20-degree hillclimb rating and rubber tracks maintain grip on steep residential terraces and compacted slopes. Move heavy soil, aggregate, and stone without disturbing planted areas.
Basement & Civil Work
Excavate and clear basement floors, utility trenches, and confined civil sites. The 850 mm chassis accesses service corridors and internal ramps standard plant cannot navigate.
Key features
What Makes It Work

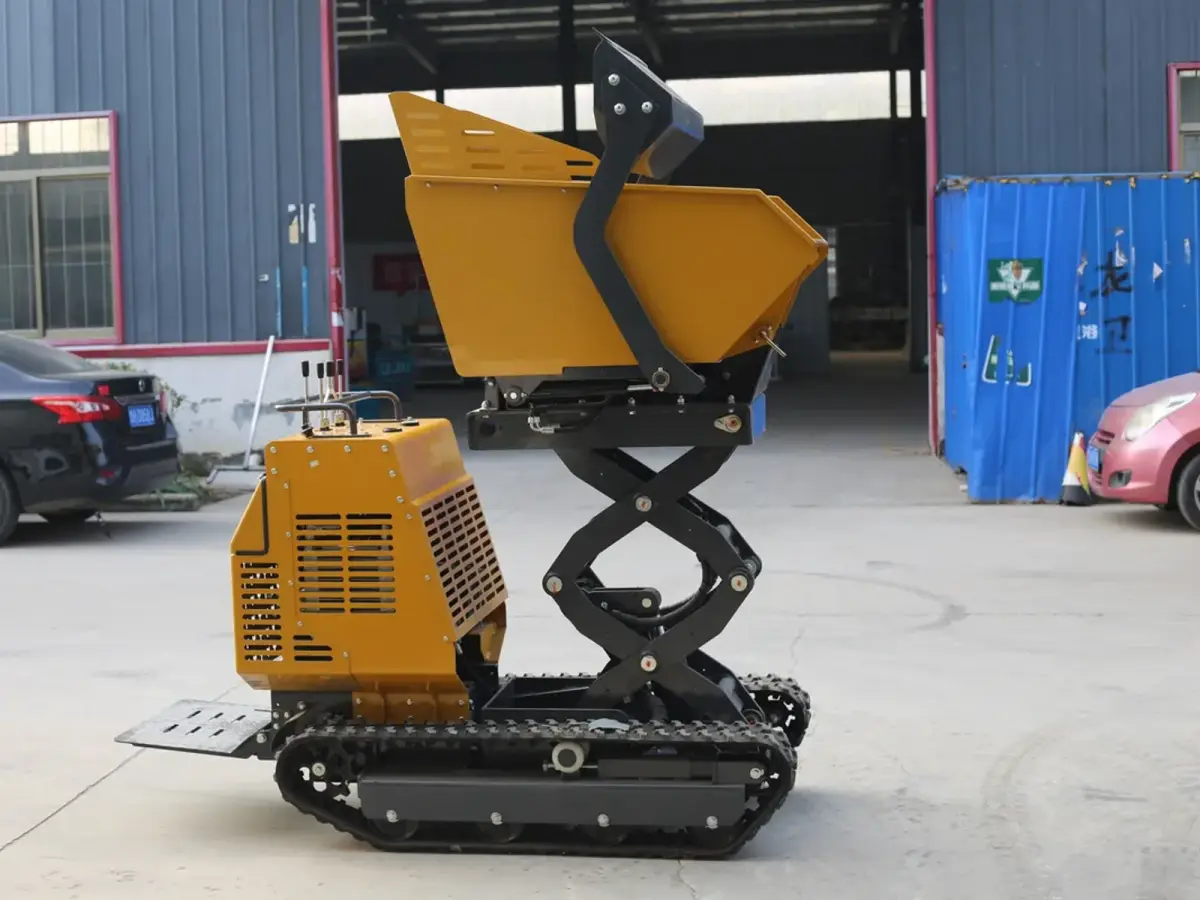

1,500 mm Scissor Lift
Highest dump height in the TerraCub lineup. Hydraulic scissor mechanism raises the 450 dm3 bucket to 1,500 mm, with a 1,300 mm unload height - above most mixer drums, formwork, and container sides.
1,000 kg Payload
Double the capacity of the 500 kg models. Move a tonne per cycle across steep or soft terrain without requiring a larger machine. 880 kg machine weight keeps ground pressure manageable.
Briggs & Stratton 420 cc
13.5 HP petrol engine delivers the torque required for full-load operation on slopes. 6.5 L fuel tank for extended heavy-duty site runs without refuelling interruptions.
20-degree Hillclimb, 850 mm Chassis
Engineered for sloped residential and civil sites. Wide rubber tracks, 1,000 mm contact length, and 110 mm ground clearance maintain stability on gradient terrain and loose surfaces.
Full specifications
Lift 1000 Spec Sheet
| Net Weight | 880 kg |
| Max. Payload | 1,000 kg |
| Bucket Capacity | 450 dm3 |
| Chassis Width | 850 mm |
| Track Width | 180 mm |
| Track Contact Length | 1,000 mm |
| Ground Clearance | 110 mm |
| Dump Type | Hydraulic self-dump, 90 deg |
| Max. Lift Height | 1,500 mm |
| Unload Height | 1,300 mm |
| Tipping Clearance | 300 mm |
| Travel Speed | 5 km/h |
| Min. Turn Radius | 1,300 mm |
| Hillclimb | 20 deg |
| Engine | Briggs & Stratton |
| Displacement | 420 cc |
| Rated Power | 13.5 HP / 3,600 rpm |
| Fuel Type | 92# Gasoline |
| Fuel Tank | 6.5 L |
Buyers
Who Orders the Lift 1000
Concrete Contractors
Tip directly into elevated formwork and wall pours. Eliminates manual bucketing on smaller pours where a concrete pump or crane is not justified.
Civil & Landscaping Firms
Terraced garden construction, slope stabilisation, and retaining wall builds where heavy material must be lifted and placed precisely on uneven terrain.
Equipment Dealers
Top-of-range model in the lift dumper category. Higher ASP, strong appeal to serious contractors who need maximum lift height and payload in a compact machine.
