Walk-Behind Rollers

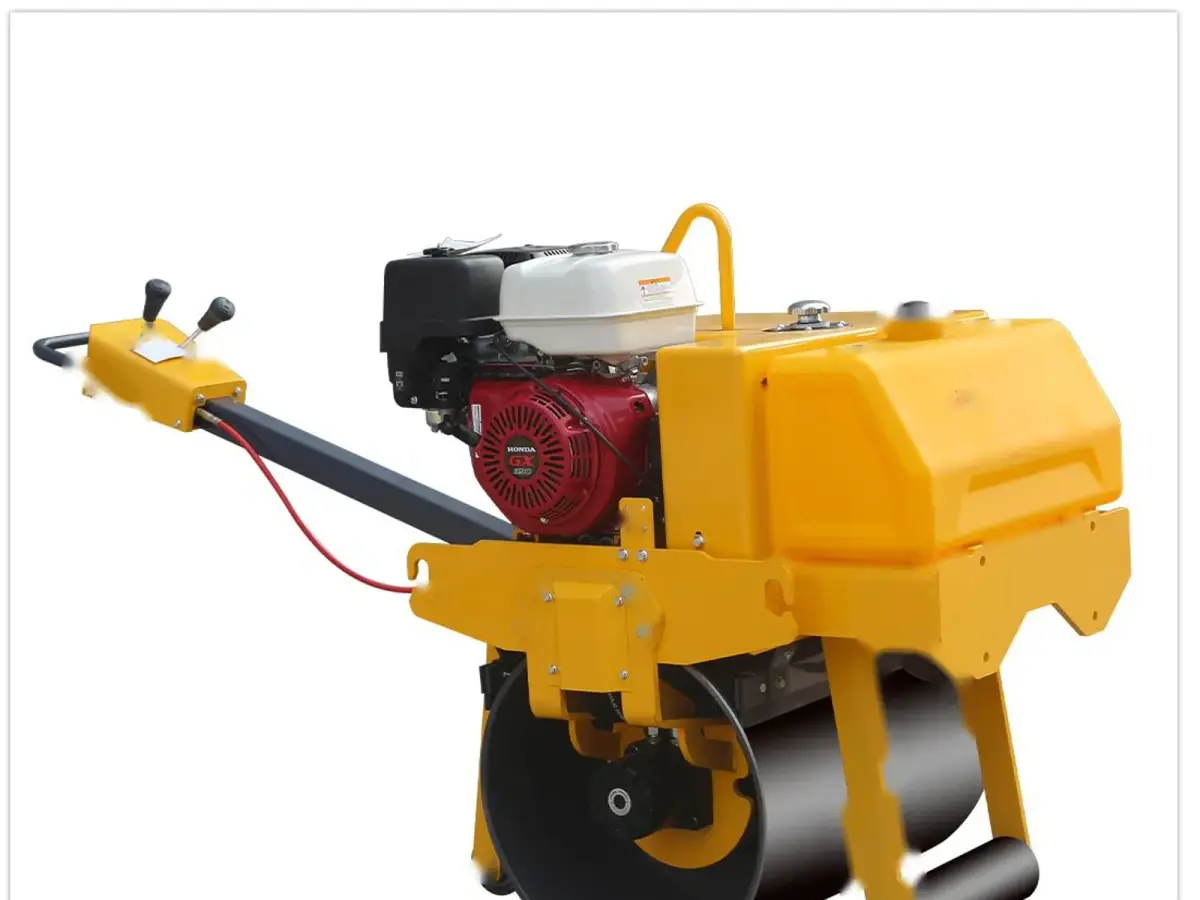

Hand-Guided Fully Hydraulic Single-Drum Road Roller TC-YL708

TC-YL708

Hand-guided fully hydraulic single-drum roller widely used to compact asphalt surfaces, gravel and sandy engineering foundations. Hydraulic drum drive and hydraulic vibration — agile, convenient operation.

500 kg
Operating weight
468 kg
Net weight
720 mm
Drum width
13 hp / 3600 rpm
Engine

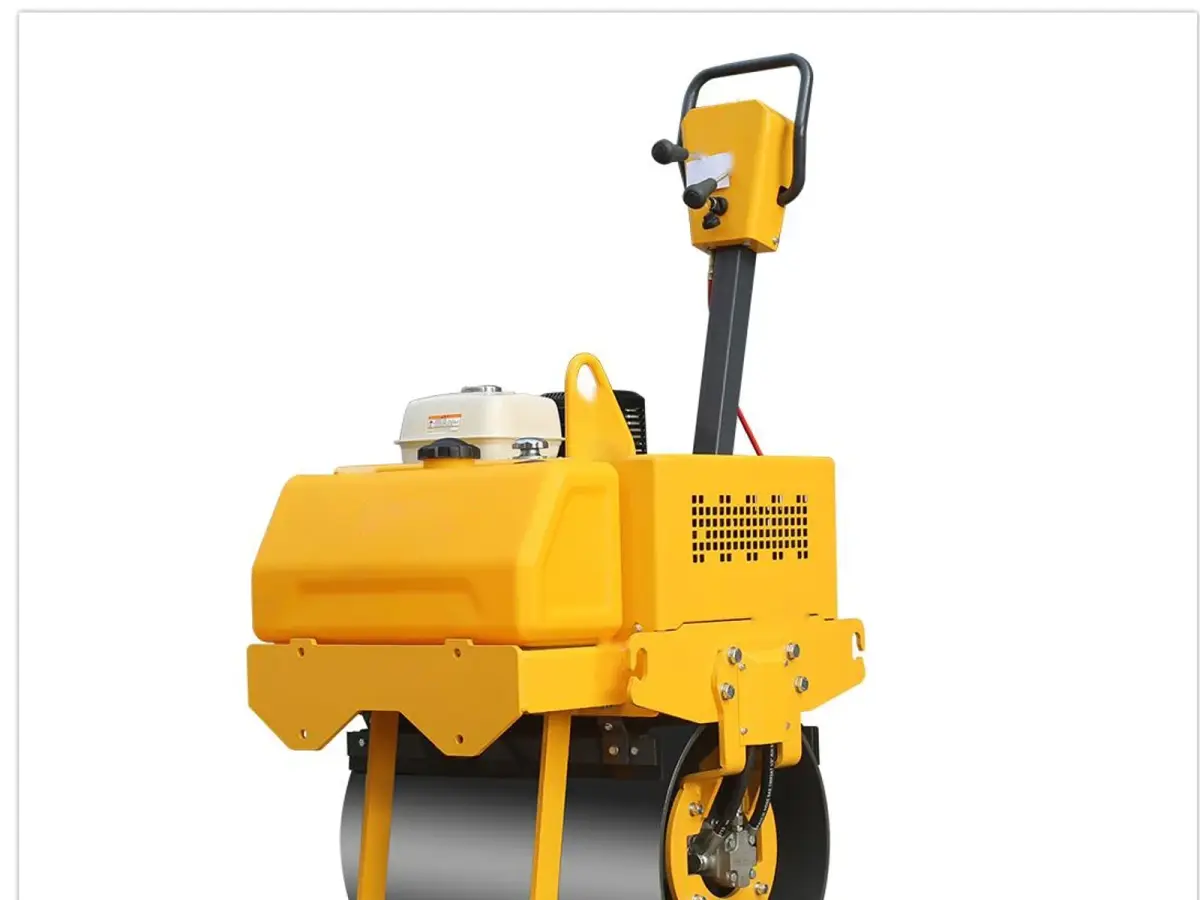

TerraCub Hand-Guided Fully Hydraulic Single-Drum Road Roller TC-YL708 image 1

Applications

Where This Model Fits

01

Asphalt Patching and Sidewalk Work

Walk-behind rollers suit patch jobs, small asphalt surfaces, pedestrian areas, and compact sites where turning room is limited.

02

Trench and Foundation Edges

They work well for pipe-trench backfill, shoulder repair, landscaping bases, and edge compaction where a larger roller is impractical.

03

Service Crews and Rental Stock

These models are straightforward for contractors, municipal service teams, and rental fleets that need compact compaction coverage.

Highlights

What Buyers Usually Check

Hand-guided fully hydraulic single-drum roller widely used to compact asphalt surfaces, gravel and sandy engineering foundations.

Hydraulic drum drive and hydraulic vibration — agile, convenient operation.

Brand-name engine: strong power, easy starting.

International-brand NSK high-precision self-aligning ball bearings ensure sound overall performance.

Bidirectional hydraulic travel with stepless speed; small working radius, easy handling, high efficiency.

Large roto-moulded water tank — never rusts; electronically controlled pressure spray sprinkles evenly.

Specifications

TC-YL708

Travel

Travel speed0–4 km/h
Gradeability30%

Compaction

Nominal amplitude0.5 mm
Vibration frequency75 Hz
Exciting force20 kN
Water tank capacity40 L
Hydraulic oil tank10 L

Operation

Drive typeHydraulic pump and motor
VibrationHydraulic vibration

Weight

Net weight468 kg
Operating weight500 kg

Engine

ModelHonda GX390
TypeGasoline, air-cooled
Power13 hp / 3600 rpm
Fuel tank capacity5.5 L
Optional engines (EPA / Euro V / China II / China IV)Changchai 192 / Honda GX390 / Briggs & Stratton — other engines on request

Dimensions

Drum width720 mm
Drum diameter530 mm
Length (handle upright)1100 mm
Overall width900 mm
Height (handle upright)1950 mm
Fumigation-free wooden case1200 × 950 × 2040 mm
