Mini Dumpers
Tracked mini dumpers for narrow-access hauling, high-tip discharge, rotary dumping, and compact contractor jobs that need mini and heavy-lift dumper options.
Products
Models
Compare Dumping Mechanisms
Use this section to compare standard dump, scissor-lift, rotary dump, and heavy-lift TerraCub models by price, payload, engine, discharge method, and job fit.
| Specification | Compact 500 Standard Dump | Lift 500 Best Seller | PIVOT 1200 180 deg Rotary | Lift 1000 Heavy Lift |
|---|---|---|---|---|
| Starting Price | $2,500 | $3,500 | $4,200 | $5,500 |
| Core Function | Standard Dump | Scissor Lift | 180 deg Rotary Dump | Heavy Lift |
| Max Payload | 500 kg | 500 kg | 1200 kg | 1000 kg |
| Engine | Briggs & Stratton | Briggs & Stratton | Briggs & Stratton | Briggs & Stratton |
| Horsepower | 6.5 HP / 3600 rpm | 6.5 HP / 3600 rpm | 13.5 HP / 3600 rpm | 13.5 HP / 3600 rpm |
| Max Lift Height | N/A | 1200 mm | N/A | 1500 mm |
| Rotation Angle | N/A | N/A | 180 deg | N/A |
| Discharge Height | 260 mm | 1050 mm | N/A | 1300 mm |
| Dumping Method | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Net Weight | 414 kg | 535 kg | 850 kg | 880 kg |
| Bucket Capacity | 200 dm3 | 200 dm3 | 594 dm3 | 450 dm3 |
| Fuel Tank Capacity | 3.6 L | 3.6 L | 6.5 L | 6.5 L |
| Max Speed | 2.88 km/h | 2.88 km/h | 5.0 km/h | 5.0 km/h |
| Max Gradeability | 20 deg | 20 deg | 20 deg | 20 deg |
| Chassis Width | 700 mm | 700 mm | 850 mm | 850 mm |
| Min. Turning Radius | 1.15 m | 1.15 m | 1.30 m | 1.30 m |
| Track Width | 180 mm | 180 mm | 180 mm | 180 mm |
| Ground Clearance | 110 mm | 110 mm | 110 mm | 110 mm |
| Dimensions (L x W x H) | 2050 x 880 x 1300 mm | 2050 x 880 x 1450 mm | 2470 x 900 x 1400 mm | 2500 x 900 x 1560 mm |
| Package Size (L x W x H) | 1630 x 940 x 1450 mm | 1570 x 980 x 2480 mm | 2000 x 960 x 2560 mm | 2050 x 960 x 2500 mm |
| Buyer Fit | Entry model | Best seller | Rotary specialist | Heavy-duty lift |
Related Guides
Guides
Buyer's Guide
Mini Track Dumper: Types, Specs and How to Choose
The strongest general-entry guide for buyers comparing the tracked dumper family.
Buyer's Guide
Compact Dump Truck Buyer Guide
A tighter guide for 500 kg tracked-dumper buyers who care about payload, access, and terrain.
Comparison
Petrol vs Electric Mini Dumper
Useful when the buyer is comparing runtime, site type, and operating environment before choosing a machine path.
FAQ
FAQs
The Compact 500 and Lift 500 share a 700 mm chassis width, which clears a standard residential gate and most side passages. This is the figure that decides whether the machine can reach the work, and it is the first thing to check before payload.

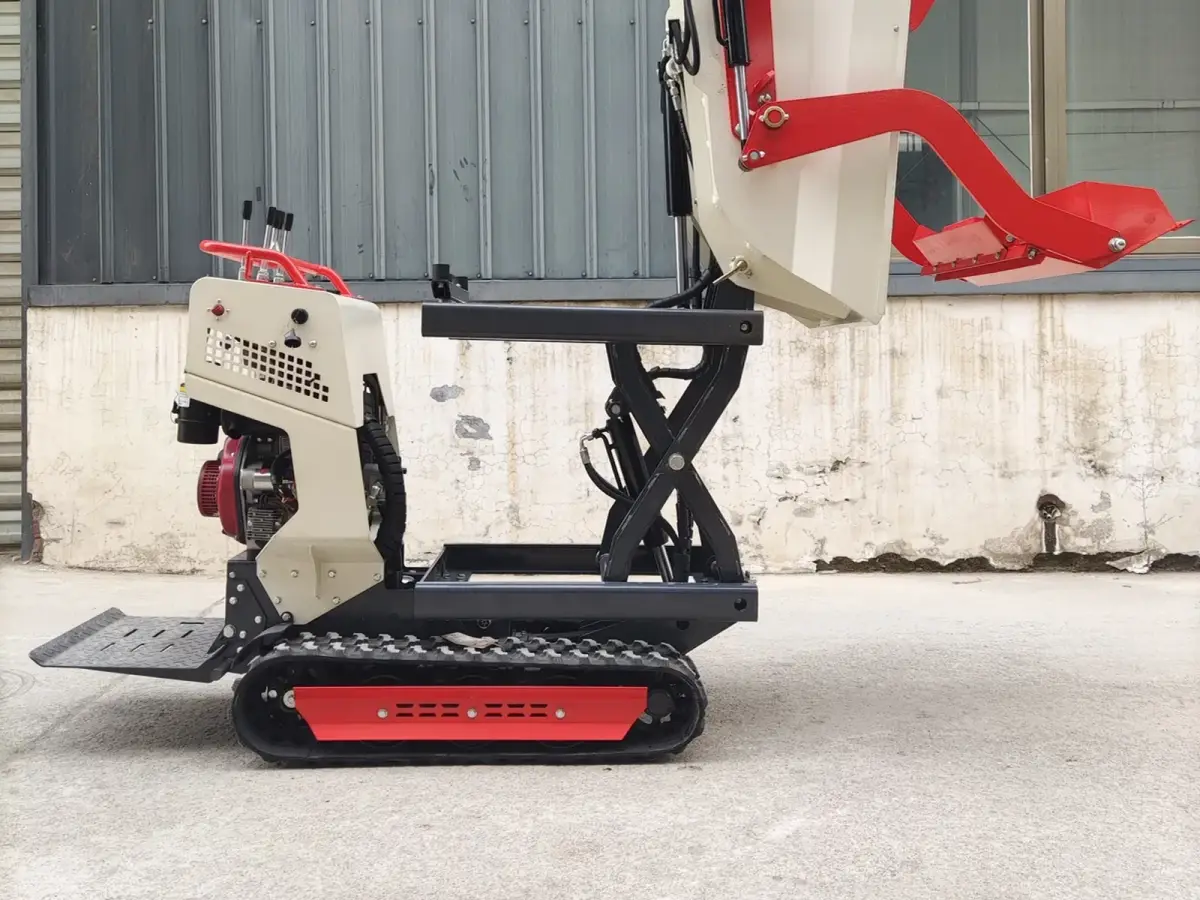

A high-tip machine such as the Lift 500 raises the bucket on a scissor lift to 1,200 mm before discharging, so it can empty over a skip wall, into a mixer, or above formwork. If the receiving edge sits above knee height, a standard dumper cannot do the job.

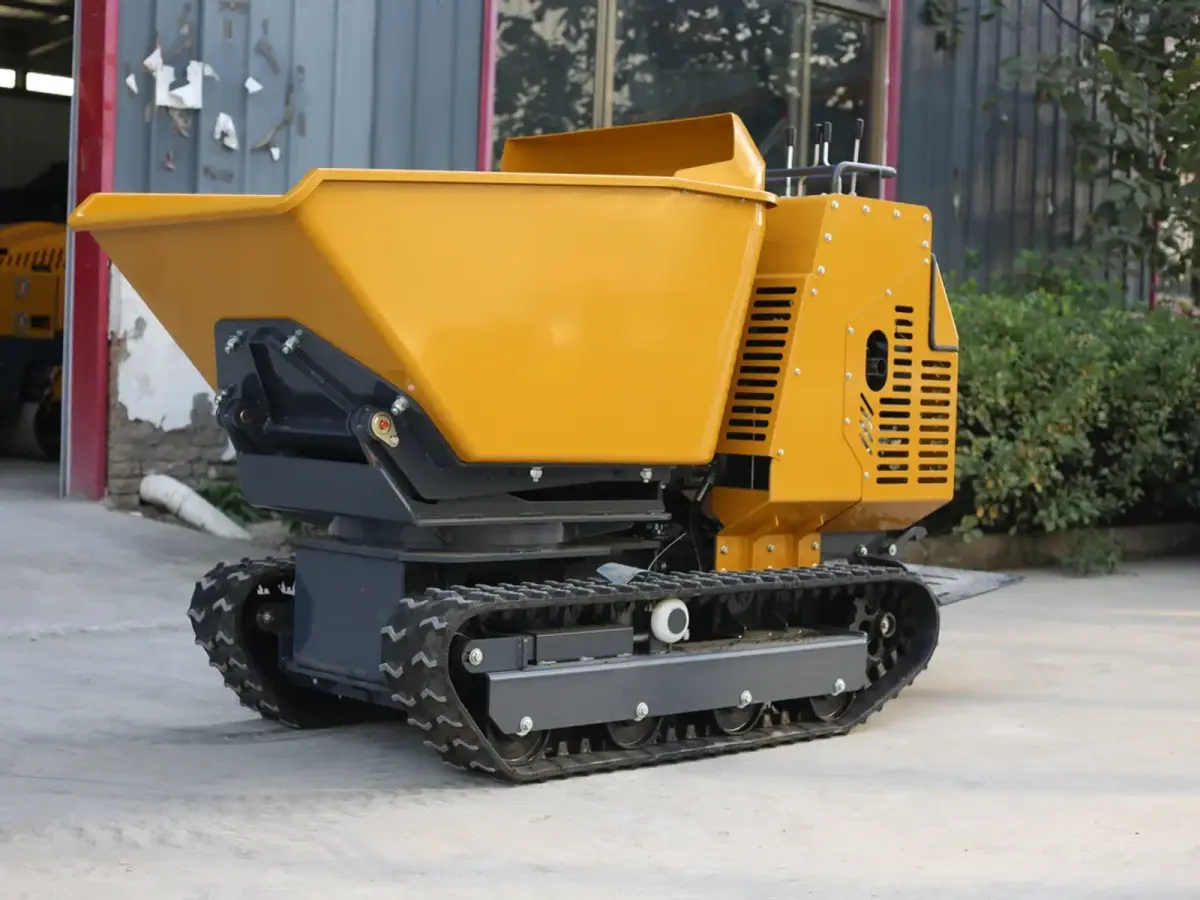

The PIVOT 1200 rotates the bucket 180 degrees, so it discharges to either side without turning the machine. In a trench corridor or between building lines where there is no room to swing the chassis around, that is the difference between one pass and three.

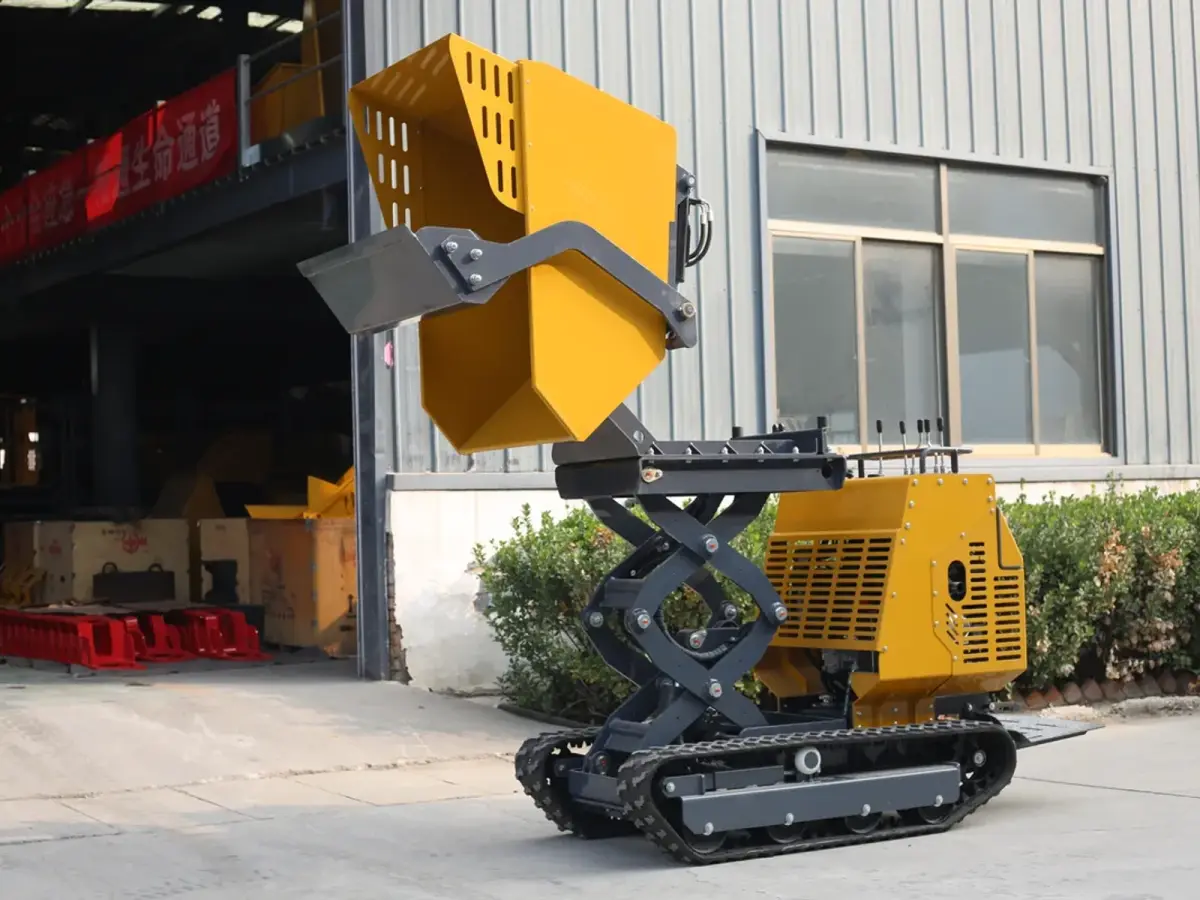

Most garden and narrow-access work is served by the 500 kg class, because gate width limits the machine long before payload does. The 1,000 kg Lift 1000 and 1,200 kg PIVOT 1200 are for open sites where trips per hour, not access, is the constraint.
On soft ground, freshly backfilled trenches, and lawns, tracks spread the load and leave less damage. On hard standing, wheels are faster and cheaper to maintain. Every TerraCub dumper in this category is tracked, because narrow-access work is almost always on unfinished ground.
Access width, then dump mechanism, then payload and lift height, and finally whether the machine is being sourced for direct use, resale, rental, or OEM discussion.
