WM312 Compact Skid Steer Loader
WM312 is a wheeled skid steer loader with a 1,200 kg rated load, 54.6 kW Kubota V3307 power, closed-type hydrostatic travel, 80 L/min working hydraulics, and an air-conditioned enclosed cab.
Shipping data
Packing Details
Where it works
Compact Loading Use Cases
Warehouse and Yard Loading
Closed-cab wheel loaders in this size range fit paved yards, depots, warehouse support zones, and compact loading tasks where weather protection matters.
Daily Material Handling
Useful for loose-material transfer, pallet-area cleanup, and repetitive daily support work on compact commercial or industrial sites.
Dealer Stock Expansion
A practical add-on for dealers who want an enclosed compact loader beside mini dumpers, mini excavators, and general support equipment.
Key points
What Buyers Usually Check

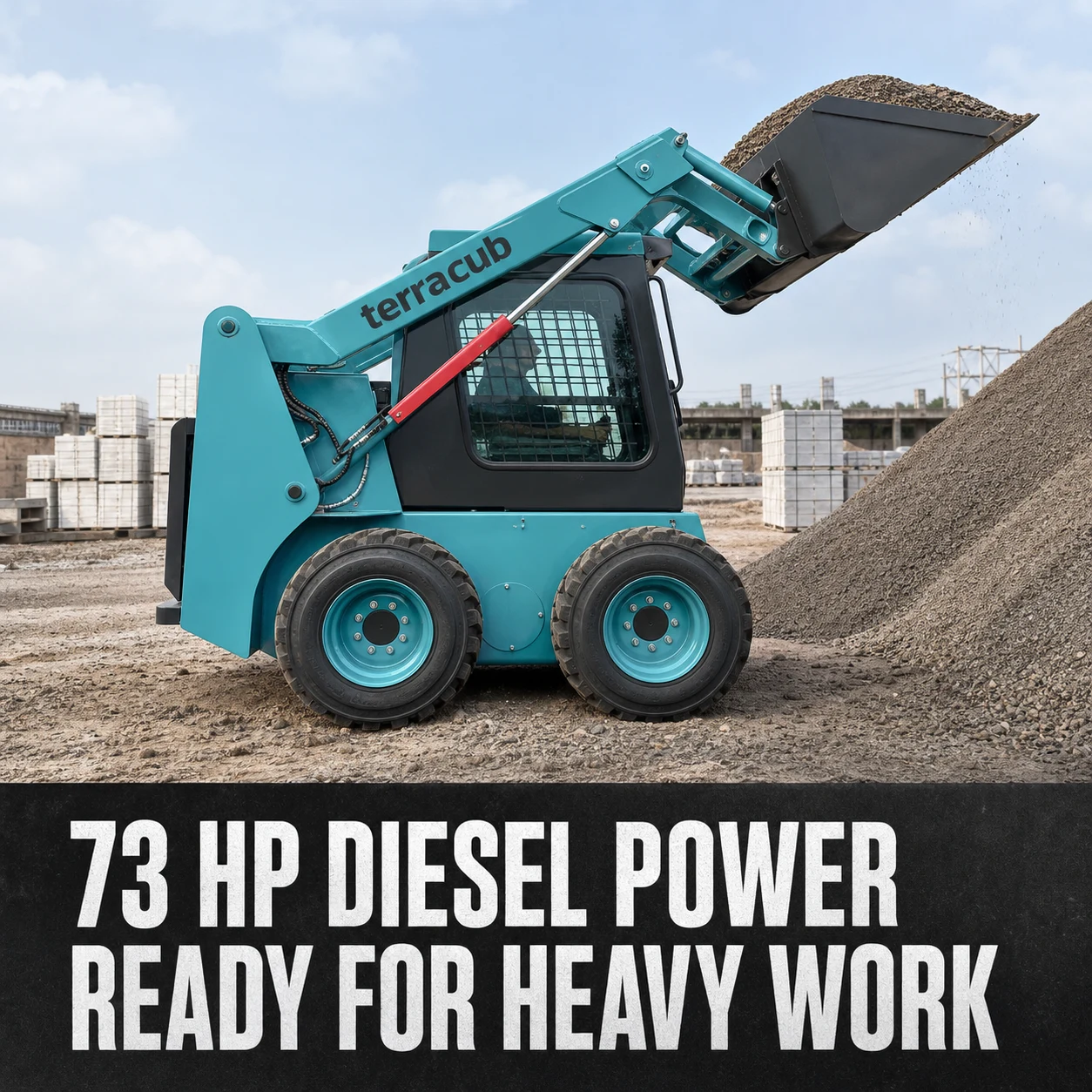

The Kubota Euro III V3307-DI-T-E3B-CSL-1 engine is rated at 54.6 kW / 73 HP at 2,400 r/min for the selected WM312 configuration.
A 1,200 kg rated load, 3,500 kg self weight with bucket, and 0.54 m3 bucket define the machine's confirmed loading profile.

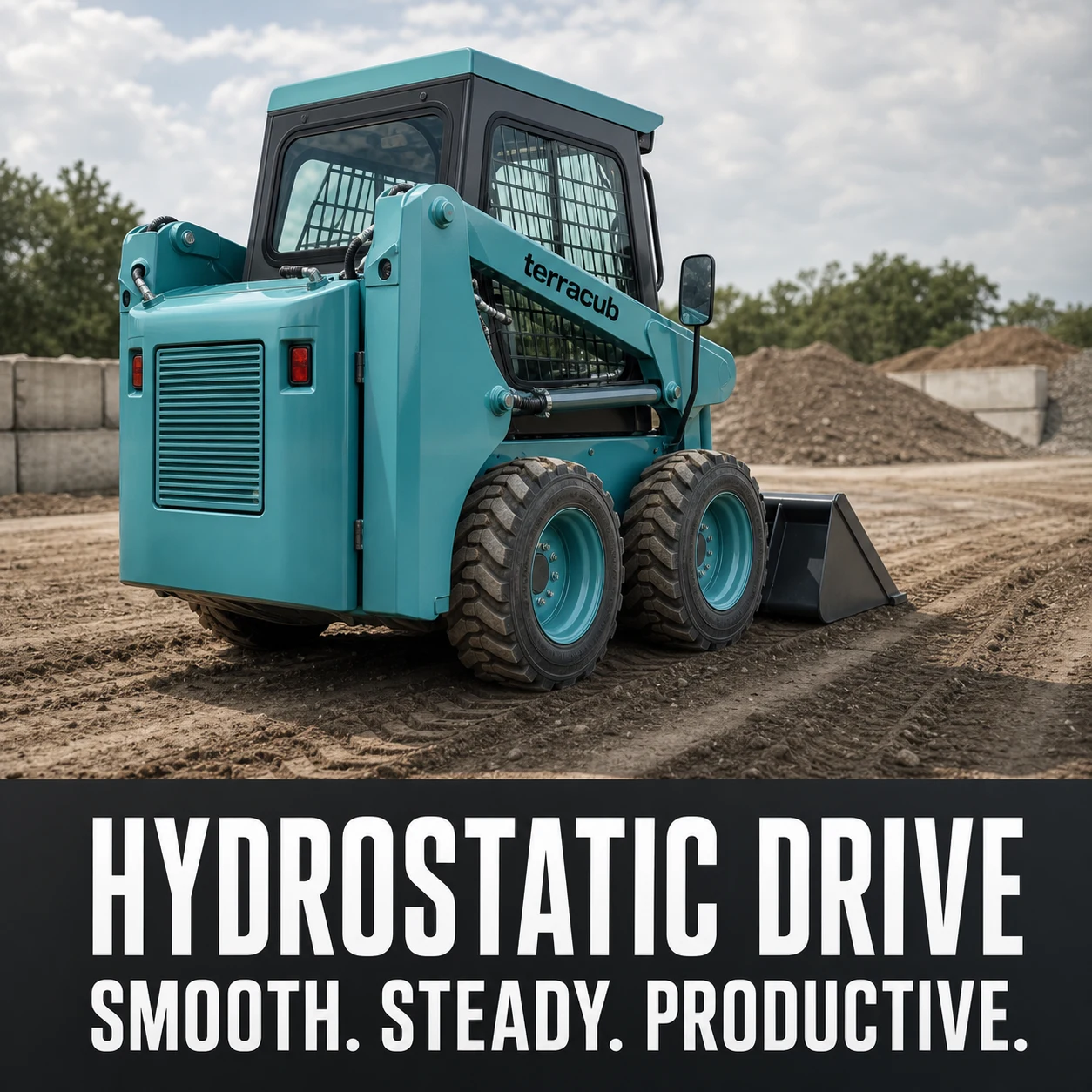

Closed-type hydrostatic travel uses a Rexroth variable-displacement piston pump and Rexroth radial piston motors with pilot controls.
The 80 L/min working hydraulic system supports the included 4-in-1 bucket, automatic leveling, one-click quick unlock, and optional high-flow hydraulics.
With the standard bucket, the WM312 measures 3,550 x 1,640 x 2,050 mm and provides a 2,500 mm dumping height with 620 mm unloading reach.
Full specifications
WM312
| Rated load capacity | 1,200 kg |
| Self weight (with bucket) | 3,500 kg |
| Bucket capacity | 0.54 m3 |
| Engine | Kubota V3307-DI-T-E3B-CSL-1 (Euro III) |
| Rated engine power | 54.6 kW / 73 HP |
| Rated engine speed | 2,400 r/min |
| Hydraulic flow rate | 80 L/min |
| Travel system | Closed-type hydrostatic transmission |
| Working hydraulic system | Fixed-displacement system |
| Travel piston pump | Rexroth variable-displacement |
| Radial piston motor | Rexroth |
| Working valve | Pilot-operated triple valve |
| Control method | Pilot controls |
| Tire model | 12-16.5 |
| Tire tread width | 305 mm |
| Fuel tank capacity | 100 L |
| Standard bucket | 4-in-1 bucket |
| High-flow hydraulic system | Optional |

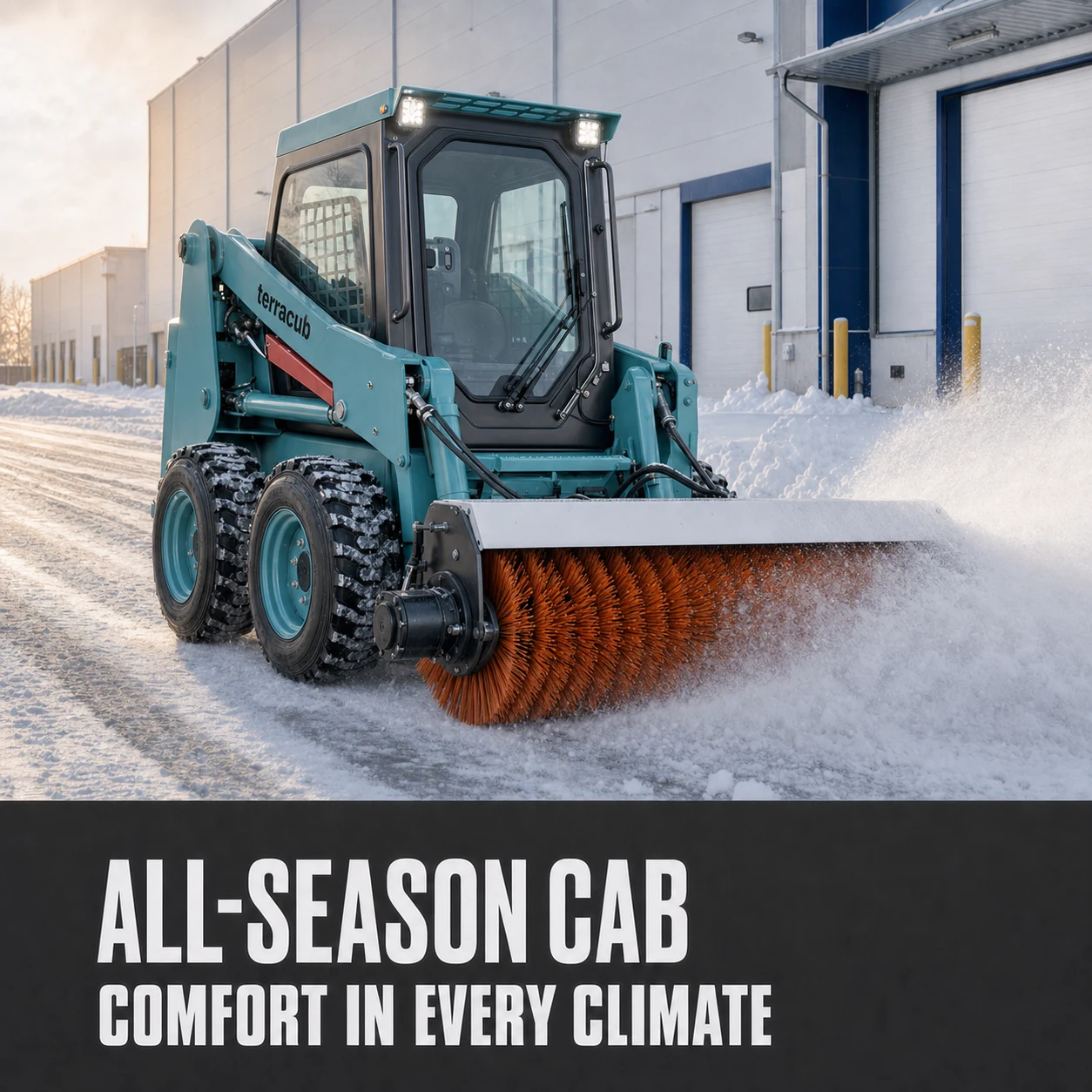

| Air conditioning | Included |
| Automatic leveling | Included |
| One-click quick unlock | Included |
| Overall dimensions | 3,550 x 1,640 x 2,050 mm (standard bucket) |
| Length without attachments | 2,530 mm |
| Length with standard bucket | 3,550 mm |
| Overall width | 1,640 mm |
| Cab roof height | 2,050 mm |
| Bucket width | 1,850 mm |
| Max. operating height | 3,880 mm |
| Bucket pin height | 3,200 mm |
| Max. height of horizontal bucket | 2,950 mm |
| Dumping height | 2,500 mm |
| Unloading distance | 620 mm |
| Max. unload angle | 40 deg |
| Bucket-on-ground rollback angle | 29 deg |
| Bucket tip rollback angle | 96 deg |
| Wheelbase | 1,080 mm |
| Ground clearance | 200 mm |
| Front turning radius | 2,050 mm |
| Rear turning radius | 1,580 mm |
| Tail length | 1,000 mm |
| Wheel track width | 1,320 mm |
