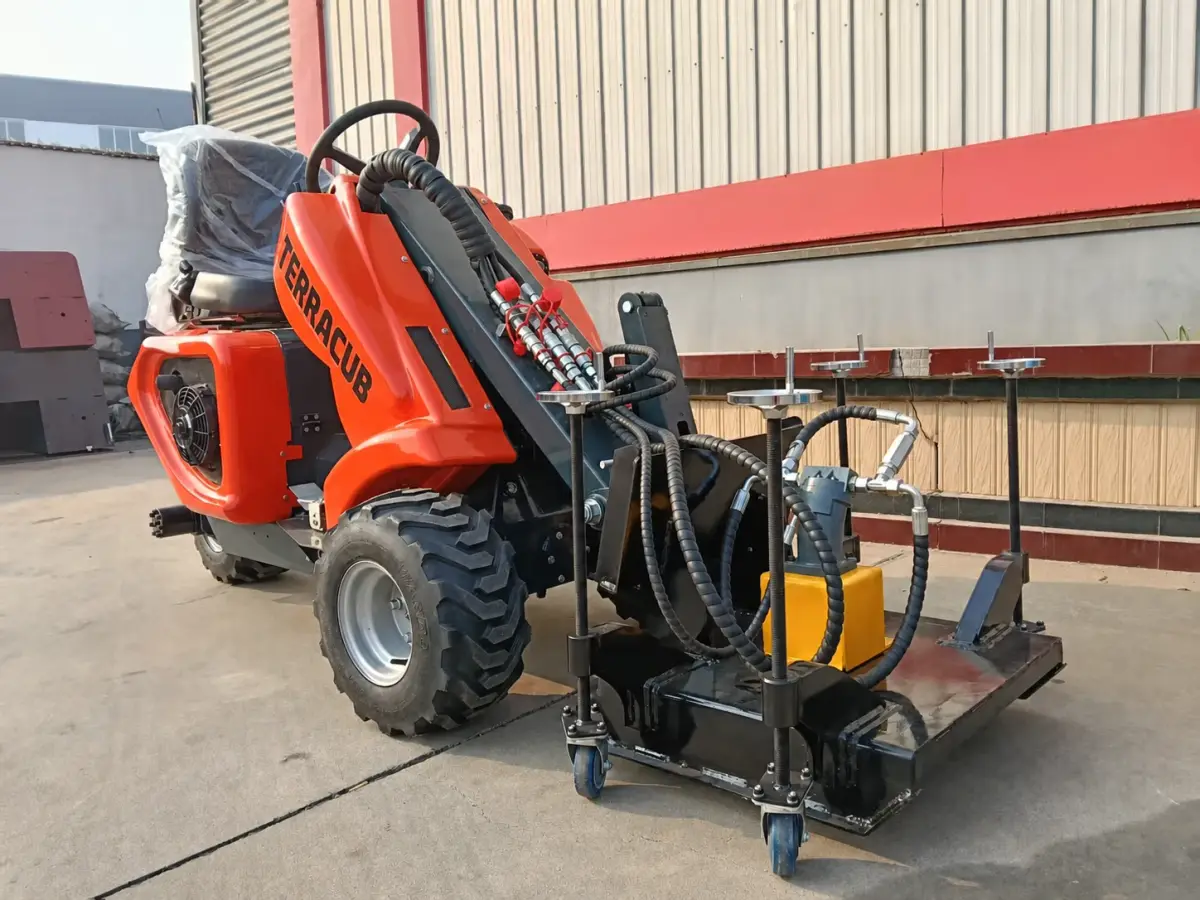

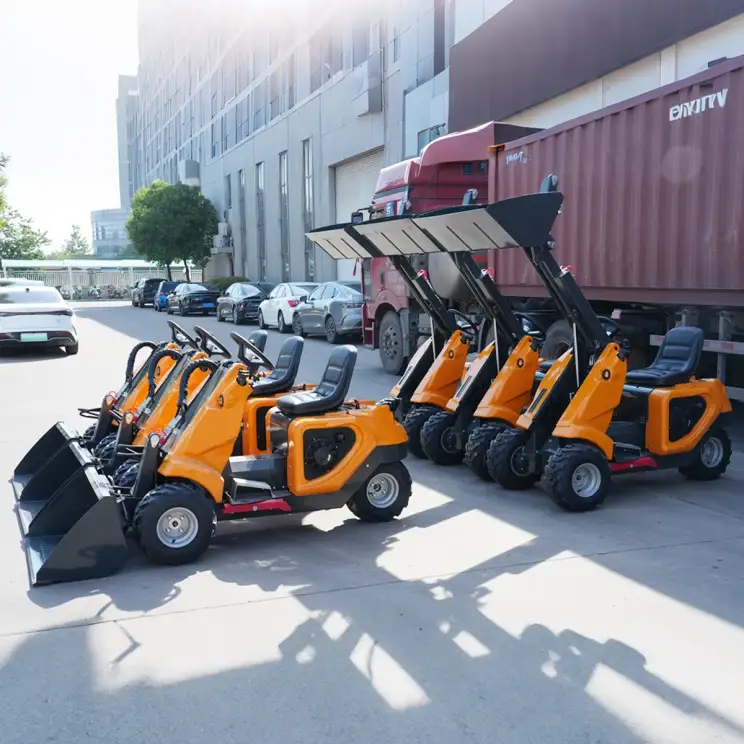

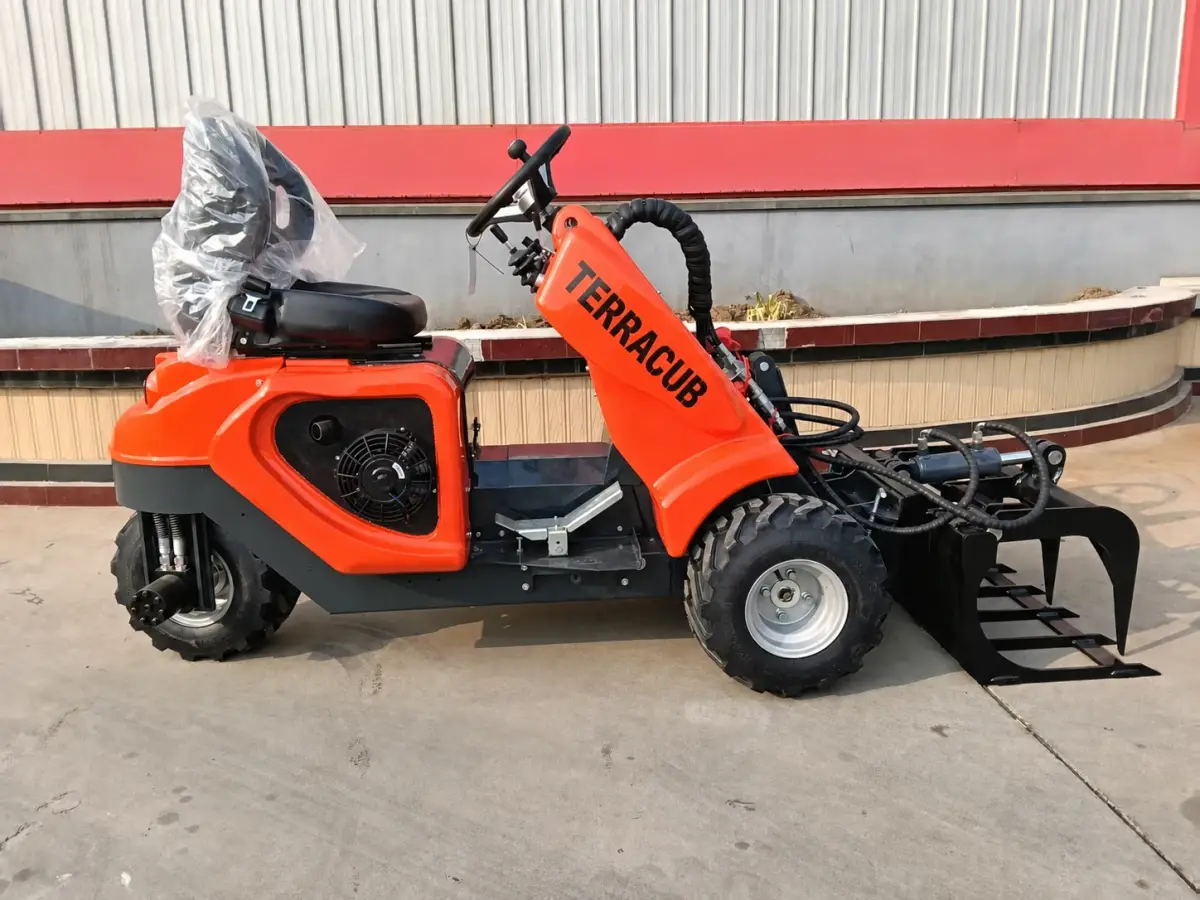

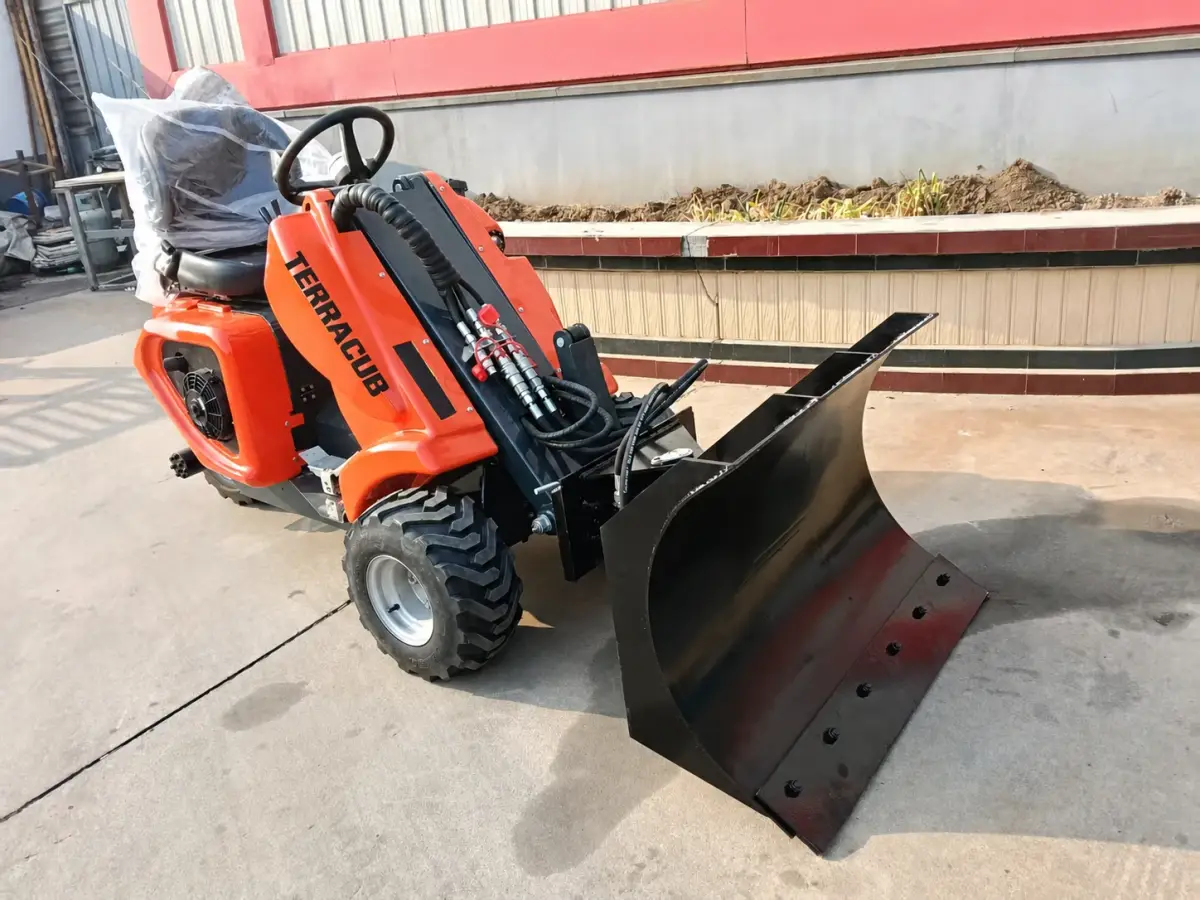

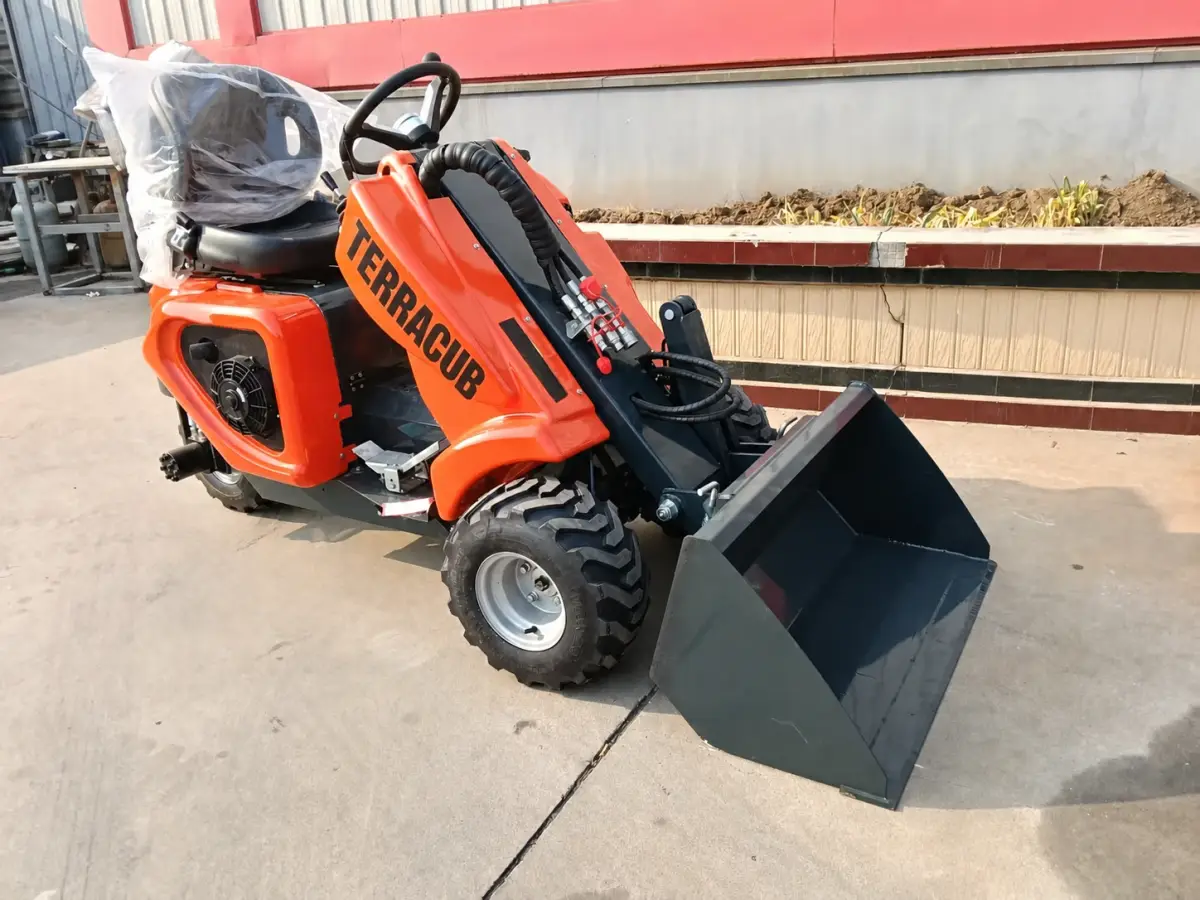

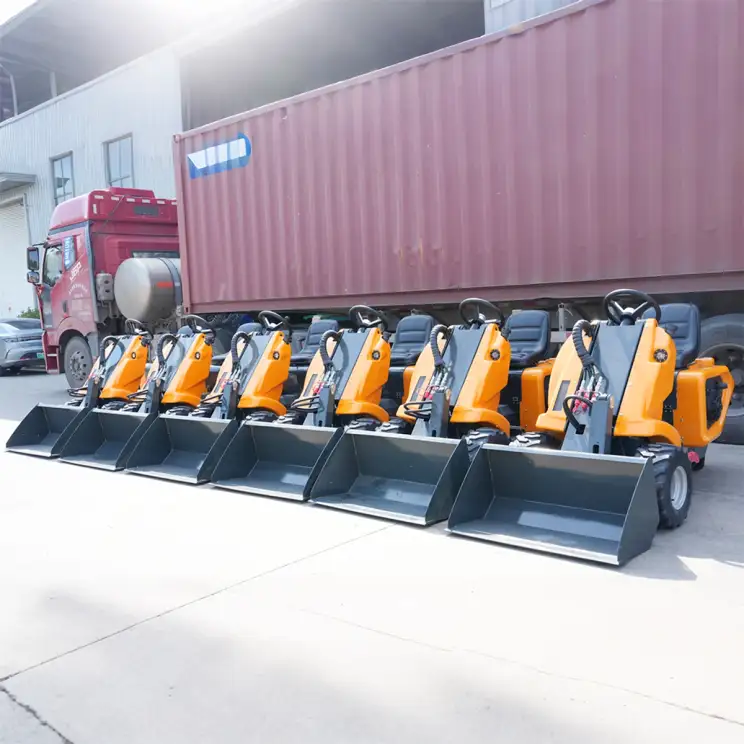

LH130 3WD Wheel Loader
Compact 3WD wheel loader with 350 kg maximum lift, 16.8 kW RATO gasoline power, 993 mm width, and hydrostatic drive for material handling and site support.
Where it works
Compact Loading Use Cases
Hard-Ground Landscaping
Wheeled mini loaders suit paved yards, garden renovation work, depot lanes, and landscaping jobs where quick movement on firm surfaces matters.
Property Cleanup and Loading
Use them for aggregate loading, spoil transfer, grading support, and day-to-day cleanup where a full-size loader is too large.
Rental and Dealer Entry Models
These compact wheel loaders are easy to position as practical first-step loading machines for small contractors, farm buyers, and hire fleets.
Key points
What Buyers Usually Check
A 0-360 degree steering range and 0/993 mm inside/outside turning radius support compact maneuvering in yards and narrow work zones.
The 740 cc two-cylinder RATO R740D gasoline engine delivers 16.8 kW at 3,600 rpm and 47 Nm at 2,500 rpm.
Hydrostatic transmission and 0-15 km/h travel provide controlled low-speed loading with faster repositioning on firm surfaces.
A 29 L/min working hydraulic flow and 160 bar pressure support the supplied bucket and photographed jobsite attachments.
The 1,854 x 993 x 1,304 mm footprint and 500 kg operating weight keep transport and site-access requirements compact.
Full specifications
LH130
| Engine model | RATO R740D |
| Fuel type | Gasoline |
| Cylinders | 2 |
| Displacement | 740 cc |
| Emission standards | EU Stage V and EPA Tier 4 Final |
| Maximum engine output | 16.8 kW at 3,600 rpm |
| Maximum engine torque | 47 Nm at 2,500 rpm |
| Cooling system | Air cooled |
| Operating voltage | 12 V |
| Battery | 20 Ah |
| Operating weight | 500 kg |
| Maximum tipping load | 400 kg |
| Maximum lifting capacity | 350 kg |
| Headline maximum lift height | 1.6 m |
| Operator cab | Open operator station |
| Travel speed | 0-15 km/h |
| Steering angle | 0-360 degrees |
| Turning radius, inside/outside | 0/993 mm |
| Standard tires | 18x9.50-8 |
| Fuel tank capacity | 10 L |
| Hydraulic oil tank capacity | 10 L |
| Working hydraulic flow | 29 L/min |
| Working hydraulic pressure | 160 bar |
| Transmission type | Hydrostatic |
| Overall dimensions | 1,854 x 993 x 1,304 mm |
