Mini Excavator
12Q

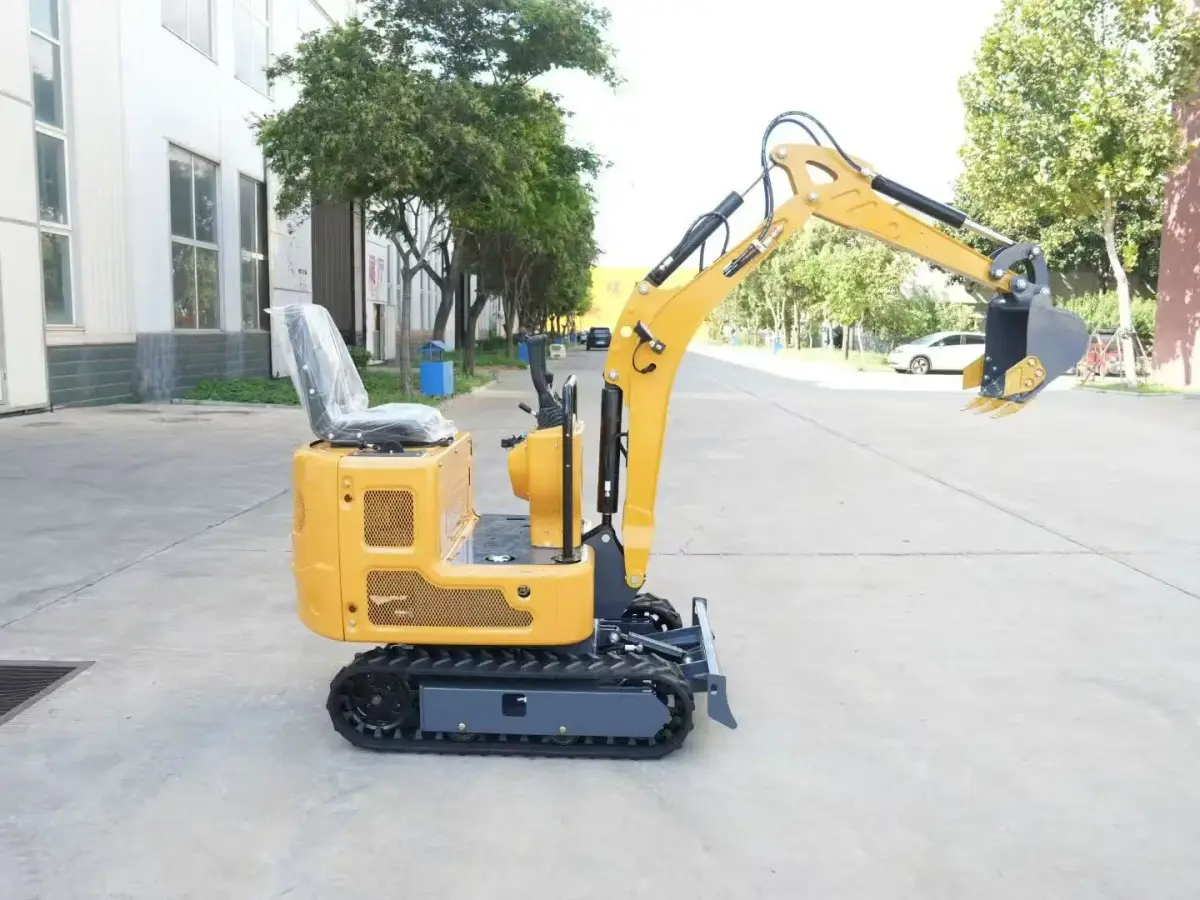

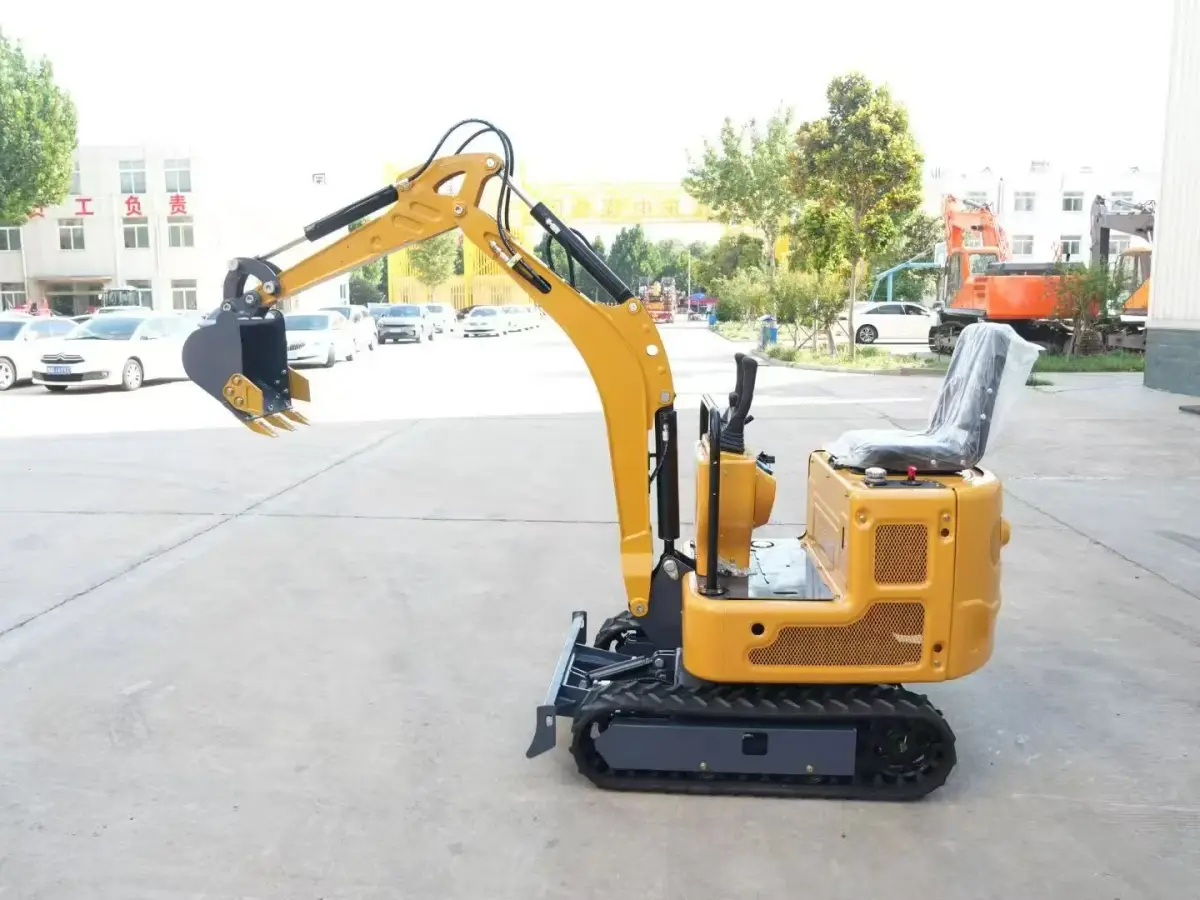

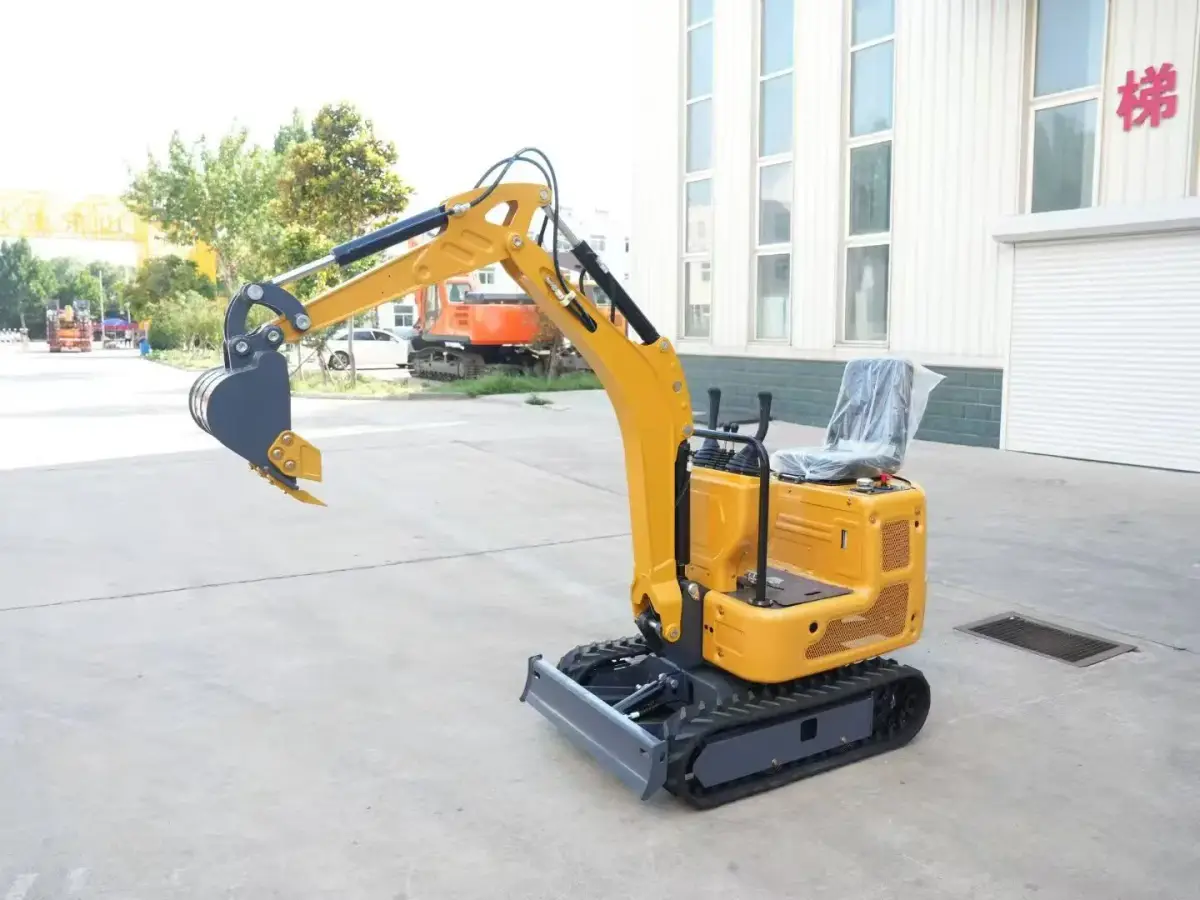

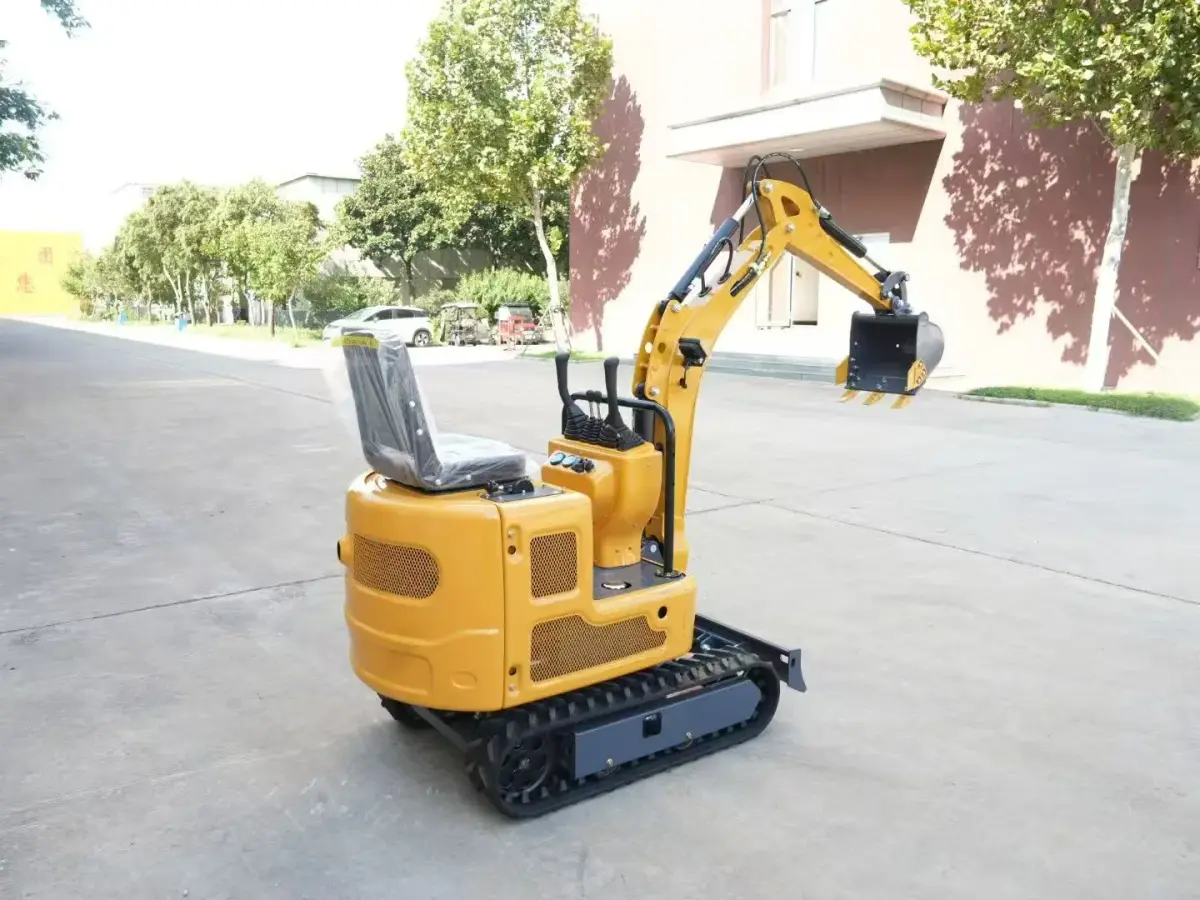

The 12Q combines narrow-site access with useful reach for everyday trenching, landscaping, and property work. Its 925 mm overall width, 1,700 mm digging depth, 2,900 mm digging radius, and compact 2,200 mm transport length make it practical for jobs where maneuverability and simple transport matter.
Applications
Where 12Q Fits Best
Landscaping and Property Maintenance
The narrow undercarriage and compact transport length suit garden construction, planting, drainage cleanup, fence-line work, and access through restricted site entrances.
Utility Trenches and Drainage
A 1,700 mm digging depth and 2,900 mm digging radius provide useful reach for cable routes, small pipe runs, irrigation, and drainage projects.
Small Construction Sites
The compact footprint is suited to light excavation, site preparation, material cleanup, and support work where a larger excavator would be difficult to position.
Specifications
12Q Technical Data
Configuration
12Q Standard And Optional Setup
Standard configuration
8 kW / 3600 rpm standard engine
400 mm standard bucket
0.025 m3 bucket capacity
180 mm rubber tracks

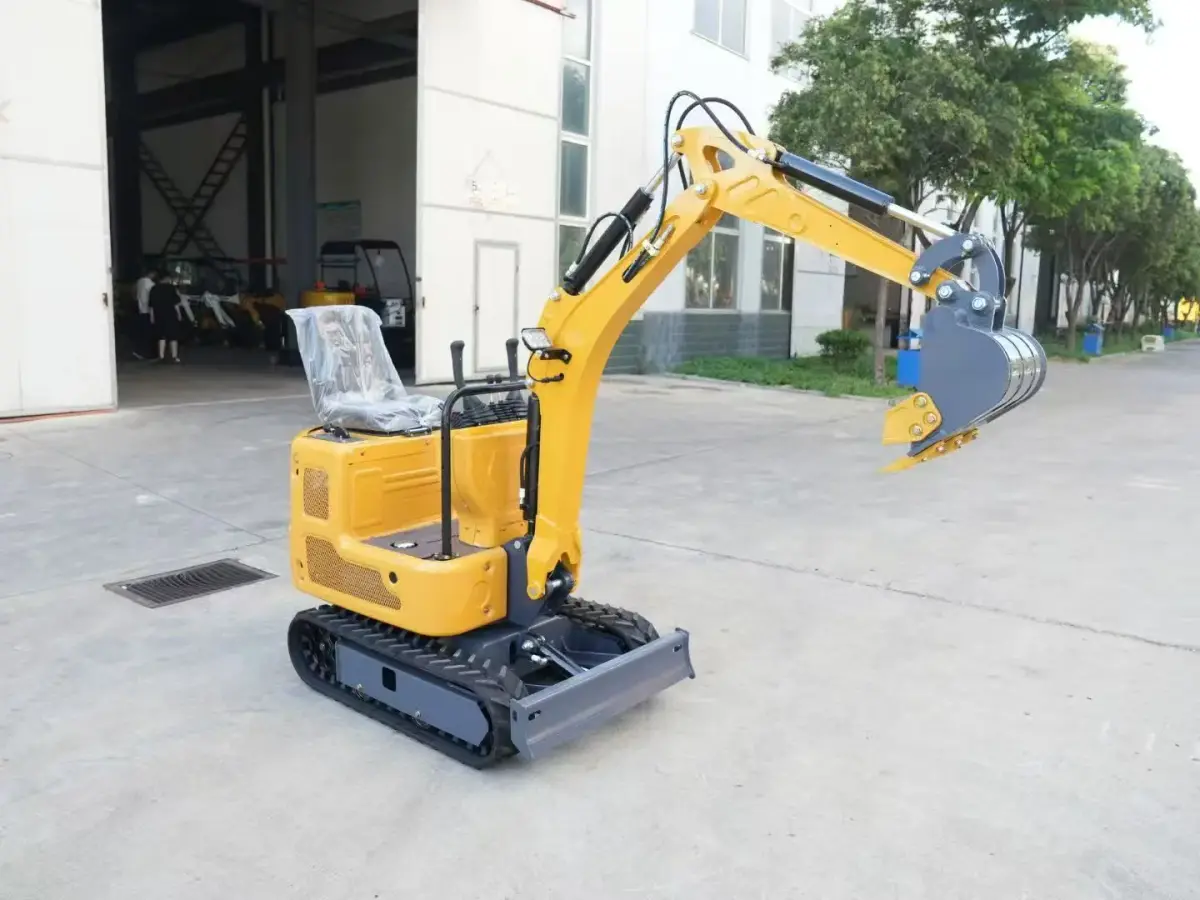

Front dozer blade
Open operator station

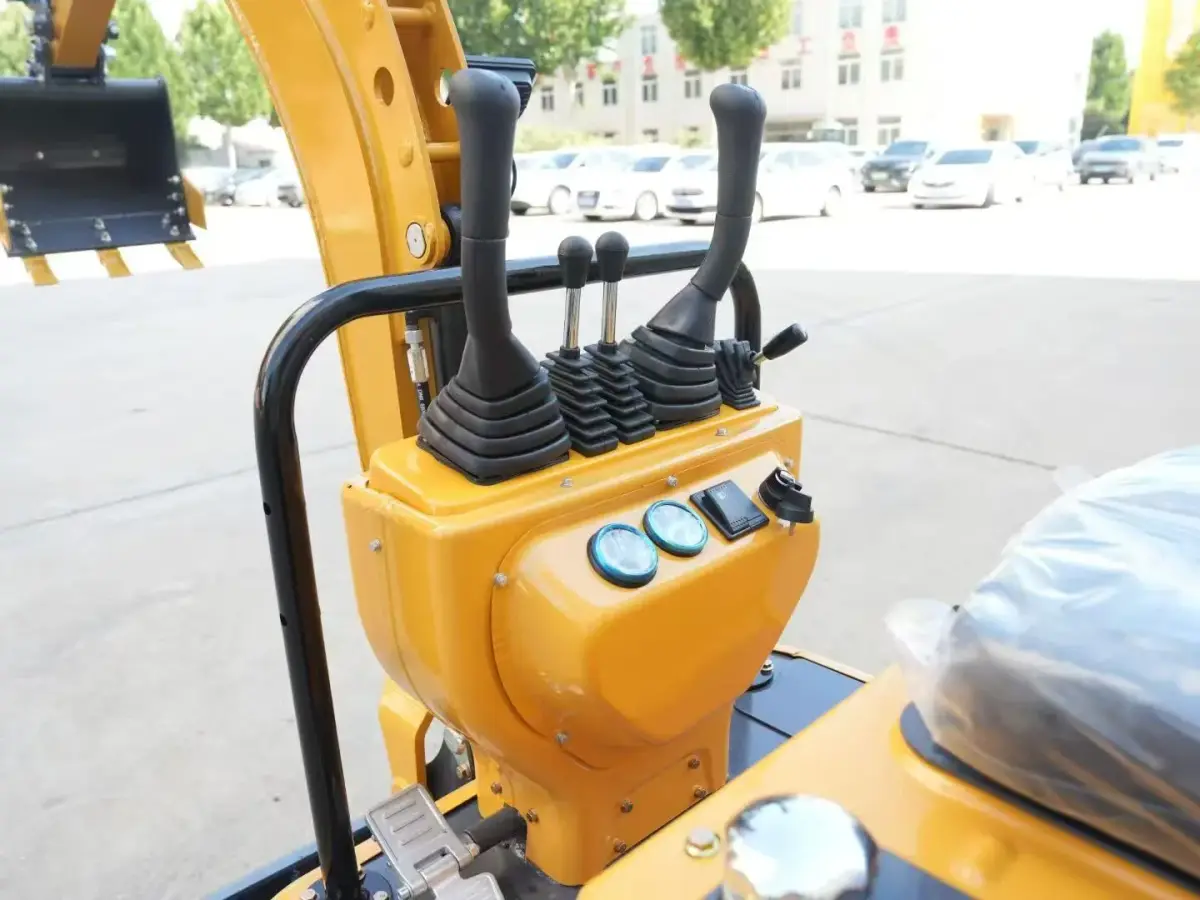

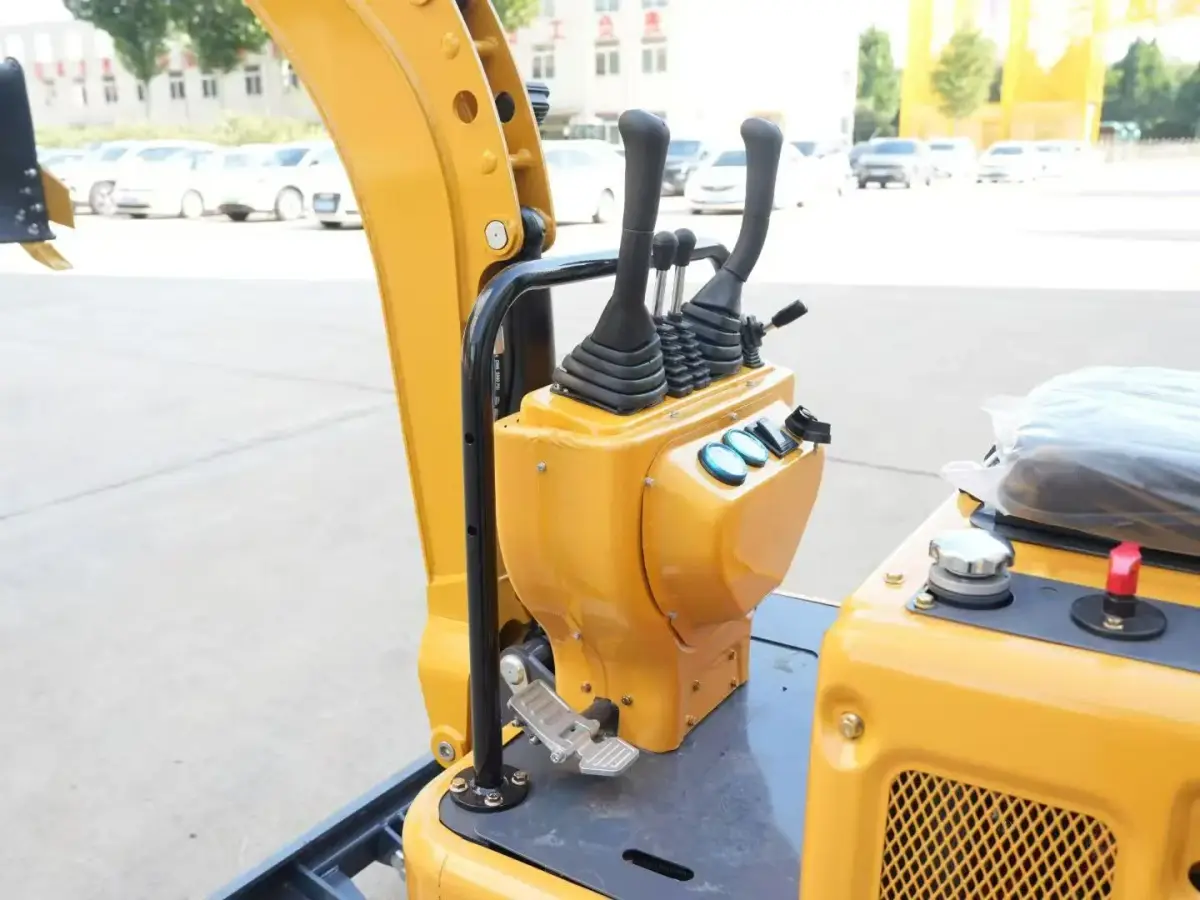

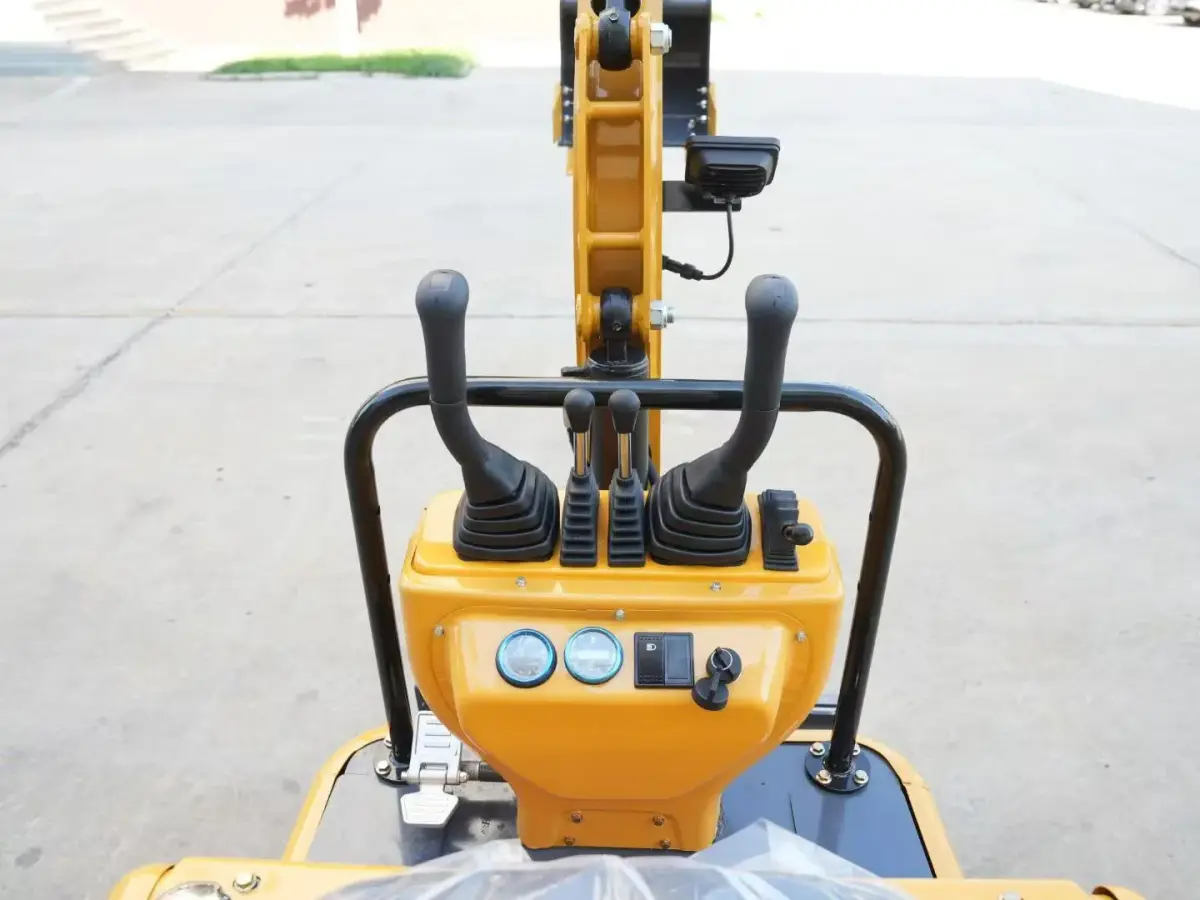

Mechanical control levers
Optional equipment
Changchai engine
Kopper engine
Paragon engine
Lithium battery power system
Electric motor power system
Attachments
Optional Attachments
Quote
Quote 12Q
Email info@terracub.com or send a WhatsApp message with your quantity, project region, and required attachments.
