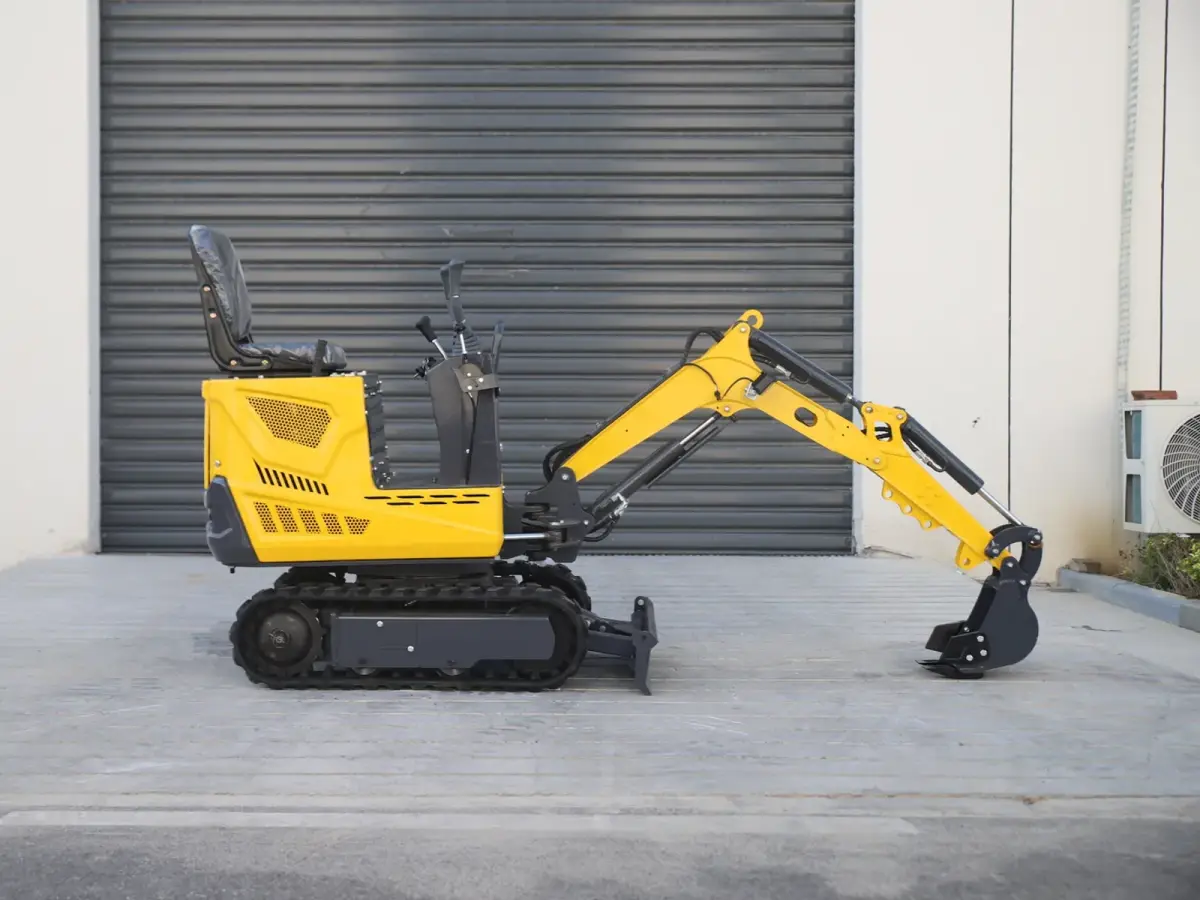

660 kg micro excavator

Mini Excavator
06Q

The 06Q is built for jobs that need real digging capability without full-size transport and access constraints. Its 700 mm width, 660 kg operating weight, and 1,200 mm digging depth make it practical for gate-width access, property work, pipe laying, trench cleaning, and compact site support.

660 kg
Operating weight
700 mm
Transport width
1200 mm
Max digging depth
2354 mm
Max digging radius
06Q mini excavator front three-quarter view with blade lowered and boom folded

Shipping data

Packing Details

Package dimensions
2,387 × 800 × 1,784 mm
Gross weight
680 kg

Applications

Where 06Q Fits Best

01

Landscaping and Property Work

A 700 mm transport width suits backyard access, orchard rows, planting work, and ditch cleanup where the excavator needs to pass through gates and narrow site paths.

02

Utility and Trenching Support

The 1,200 mm digging depth and 2,354 mm digging radius give the 06Q enough reach for cable laying, pipe runs, drainage work, and small foundation preparation.

03

Indoor Demolition and Tight-Site Jobs

This compact class is practical for light concrete breaking, indoor stripping, and confined renovation work where machine size and maneuverability matter more than bulk tonnage.

Specifications

06Q Technical Data

Machine data

Operating weight660 kg
Total length2287 mm
Total width700 mm
Total height1684 mm

Digging performance

Max. digging radius2354 mm
Max. digging depth1200 mm
Max. digging height2214 mm
Max. dumping height1486 mm
Max. digging force7.2 kN

Powertrain

Engine brandZONGCHENG
Engine modelTR306
Maximum power6.3 kW

Travel

Walking speed0-4 km/h
Climbing angle30 deg

Configuration

06Q Standard And Optional Setup

Standard configuration

Zongcheng TR306 engine

Imported oil cylinders and oil pipes with built-in NOK sealing ring

Twin gear pump

Adjustable bulldozer blade

Wear-resistant engineering rubber tracks

Adjustable driving seat

Standard bucket

Optional equipment

Hydraulic hammer

Ripper

Log grapple

Rake

Auger drill

Large bucket

Mud bucket

Mini excavators

Category And Next Models

925 mm | 1700 mm

Mini Excavator 12Q

925 mm compact excavator with 1,700 mm digging depth, 2,900 mm digging radius, and an 8 kW standard engine.

Attachments

Optional Attachments

Pallet Fork view 1

Fork handling | Yard loading

Pallet Fork

Fork setup for palletized stock, packaged landscape materials, nursery loads, and compact site logistics.

View attachment
4-in-1 Bucket view 1

General purpose | Grab bucket

4-in-1 Bucket

Combination bucket format that covers loading, grading, clamping, and cleanup without constant tool changes.

View attachment
Backhoe Attachment view 1

Digging arm | Trenching

Backhoe Attachment

Rear-arm digging setup for controlled excavation where the compact loader must trench or spot-dig in tight access areas.

View attachment

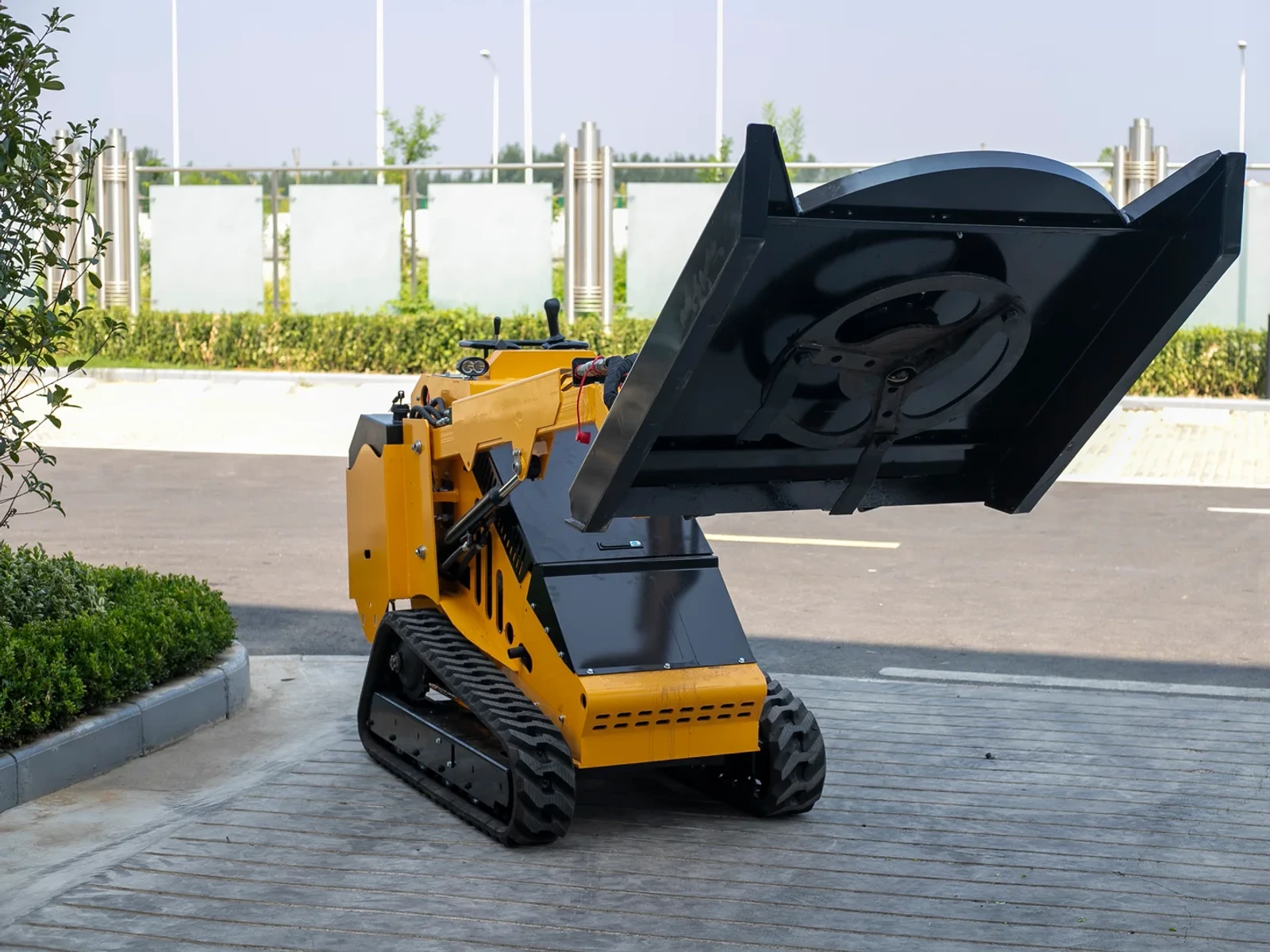

Brush Cutter view 1

Brush clearing | Vegetation control

Brush Cutter

Compact brush cutter for overgrowth removal, roadside maintenance, property cleanup, and site preparation.

View attachment
Chain Trencher detail view

Trenching | Cable runs

Chain Trencher

Narrow trenching tool for irrigation, utilities, drainage slots, and repetitive line work on compact-access jobs.

View attachment

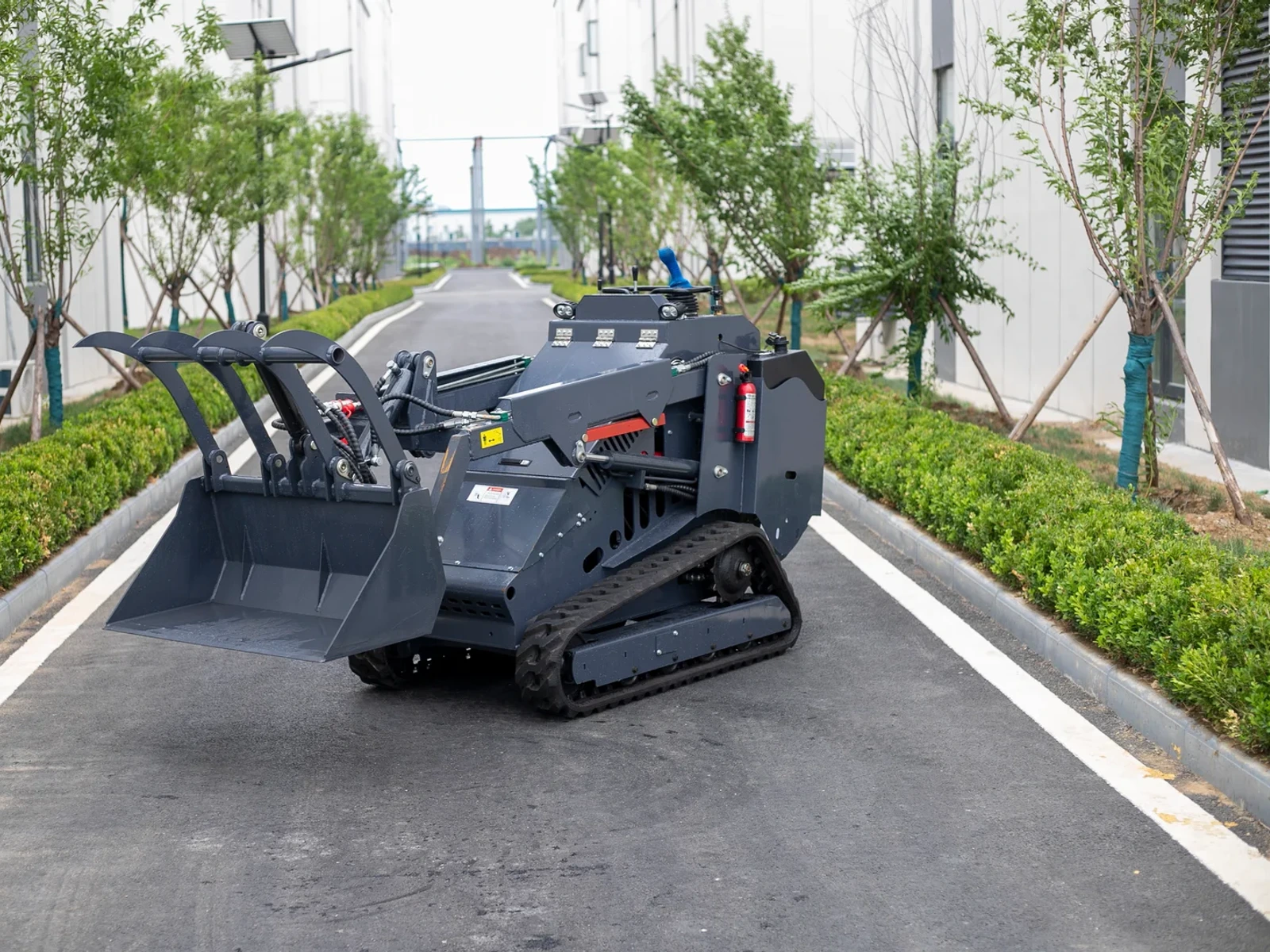

Grapple Bucket view 1

Grabbing | Cleanup

Grapple Bucket

Clamp bucket for awkward debris, roots, logs, brush, and bulk cleanup where loose loads shift in a plain bucket.

View attachment

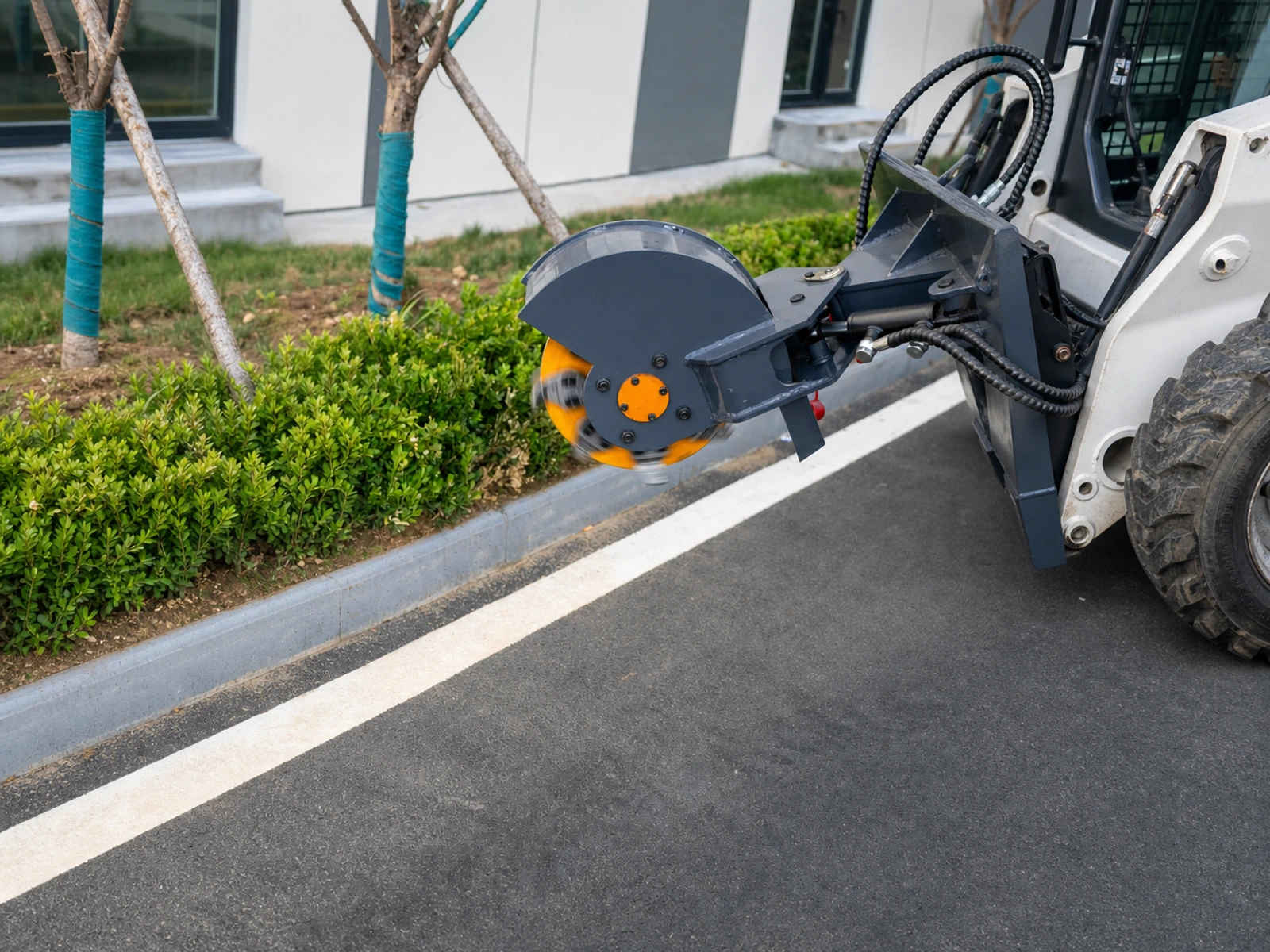

Stump Grinder view 1

Grinding | Tree removal

Stump Grinder

Stump grinding tool for reducing cut stumps below grade and cleaning tree-removal sites before reinstatement.

View attachment

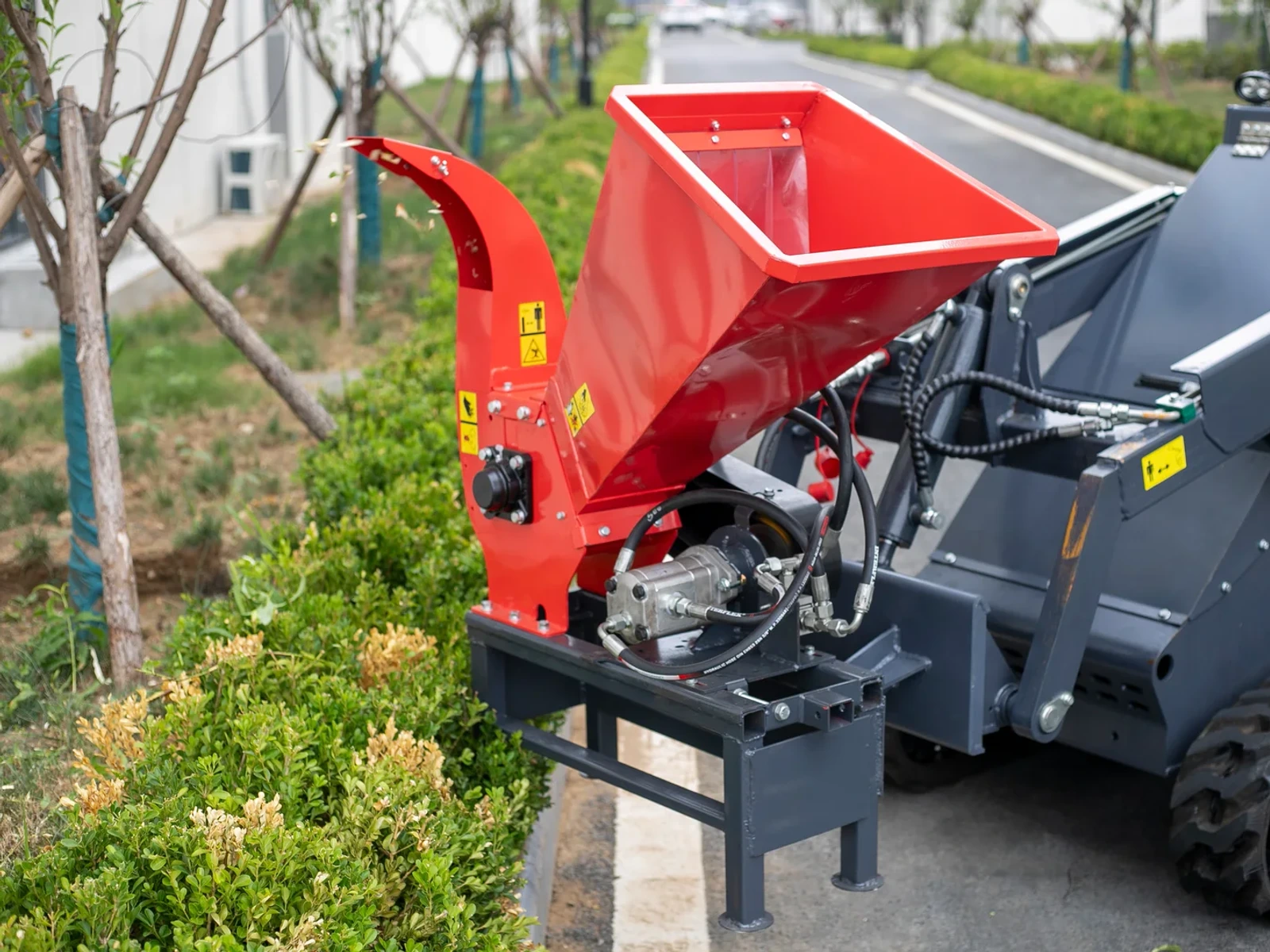

Wood Chipper view 1

Chipping | Green waste

Wood Chipper

Branch-chipping attachment for reducing trimming waste and clearing residue directly on compact work sites.

View attachment
Brush Cutter view 1

Brush control | Rough cutting

Brush Cutter

Heavy-duty rough-cut attachment for weeds, scrub, and unmanaged vegetation in compact or uneven access areas.

View attachment

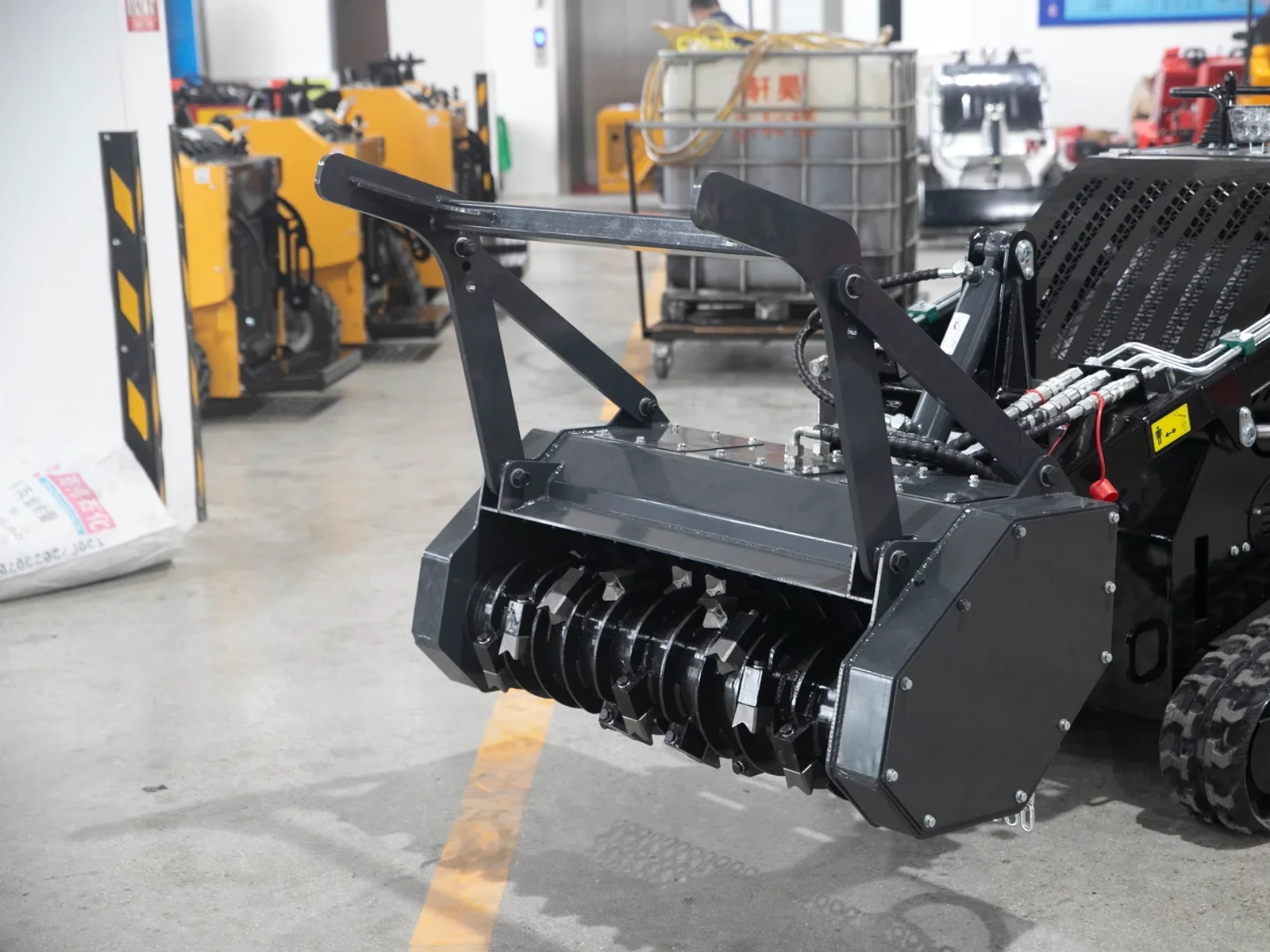

Forestry Mulcher view 1

Mulching | Land clearing

Forestry Mulcher

High-duty vegetation processing tool for woody overgrowth, saplings, right-of-way work, and heavy clearing jobs.

View attachment

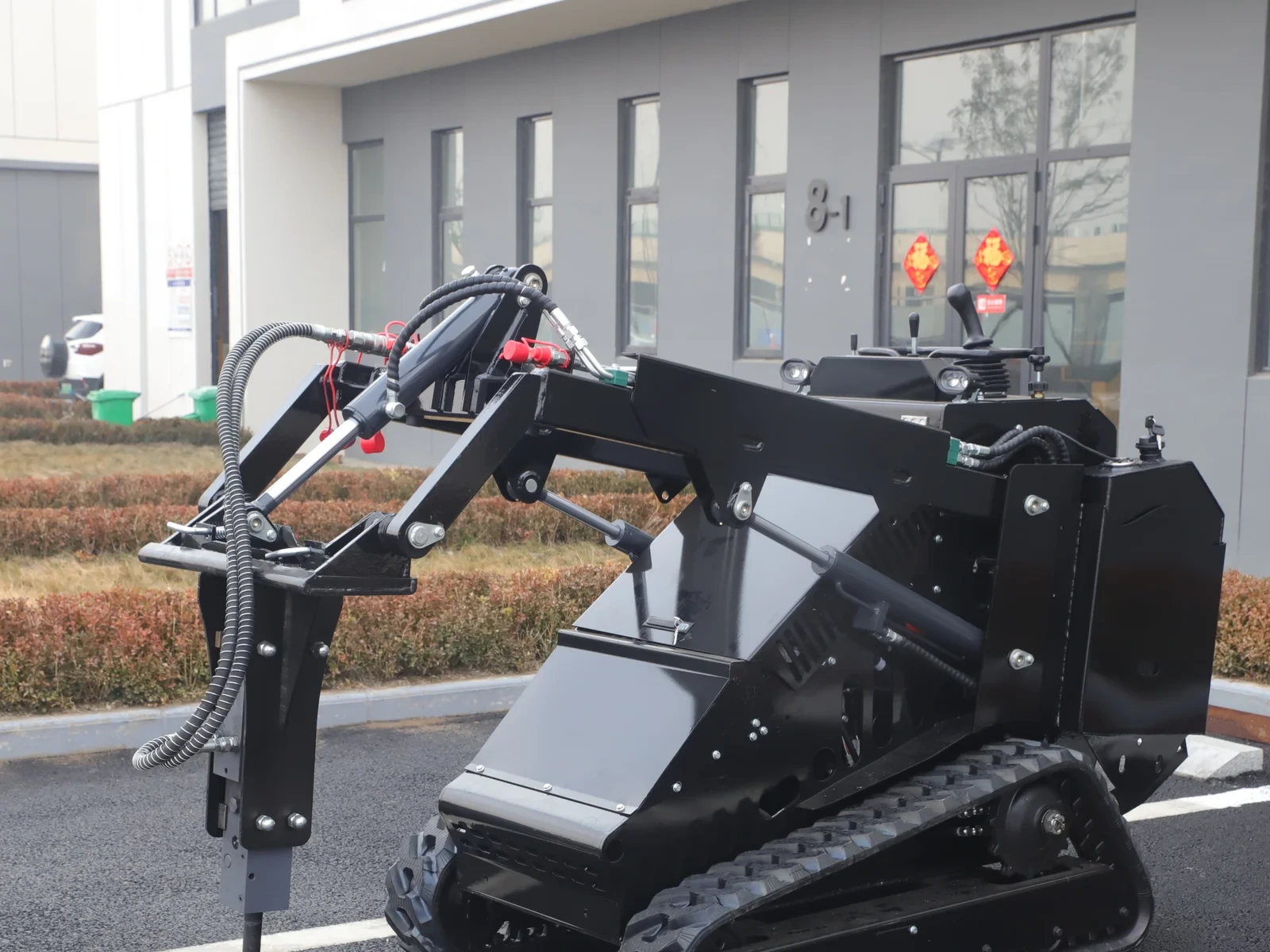

Hydraulic Breaker view 1

Breaking | Demolition

Hydraulic Breaker

Hydraulic hammer for pavement opening, slab breakup, trench starts, and compact demolition tasks.

View attachment

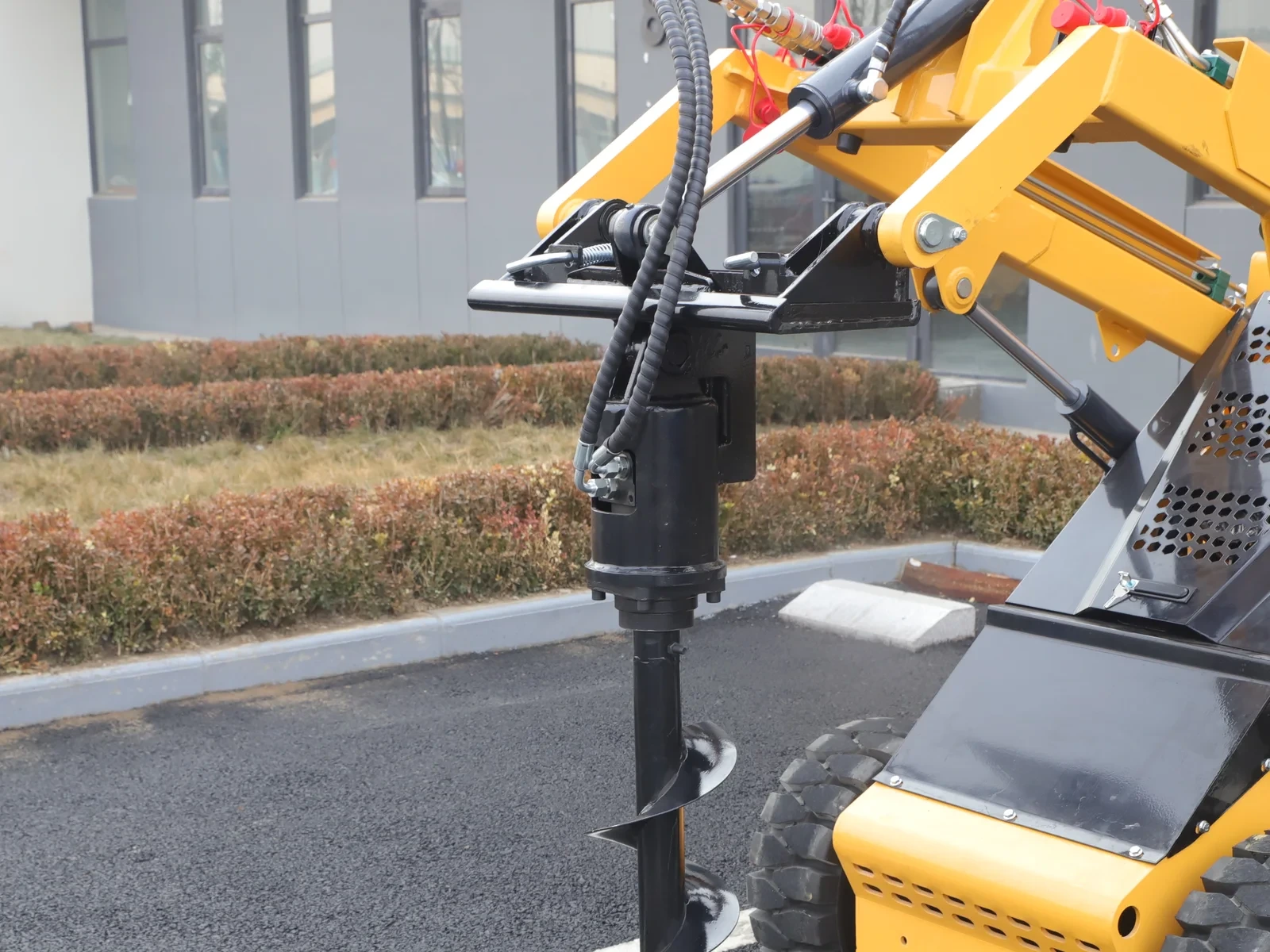

Skid Steer Auger mounted carrier view

Hole drilling | Post work

Skid Steer Auger

Auger setup for fencing, planting pits, light foundations, and repeated drilling on compact-access sites.

View attachment

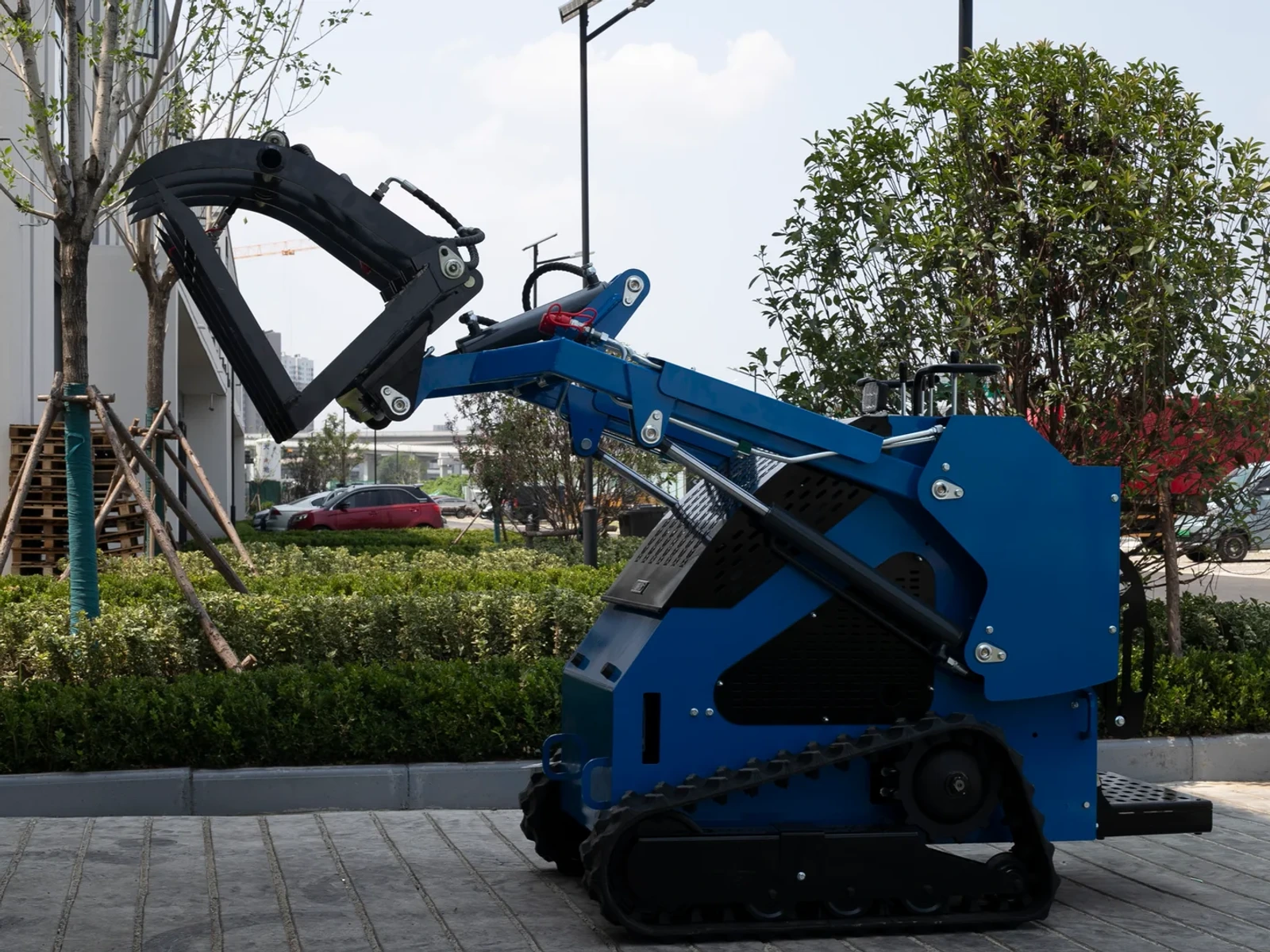

Log Grapple view 1

Timber handling | Grapple

Log Grapple

Open-frame grapple for logs, trunks, bundled branches, and long awkward material on compact sites or yards.

View attachment

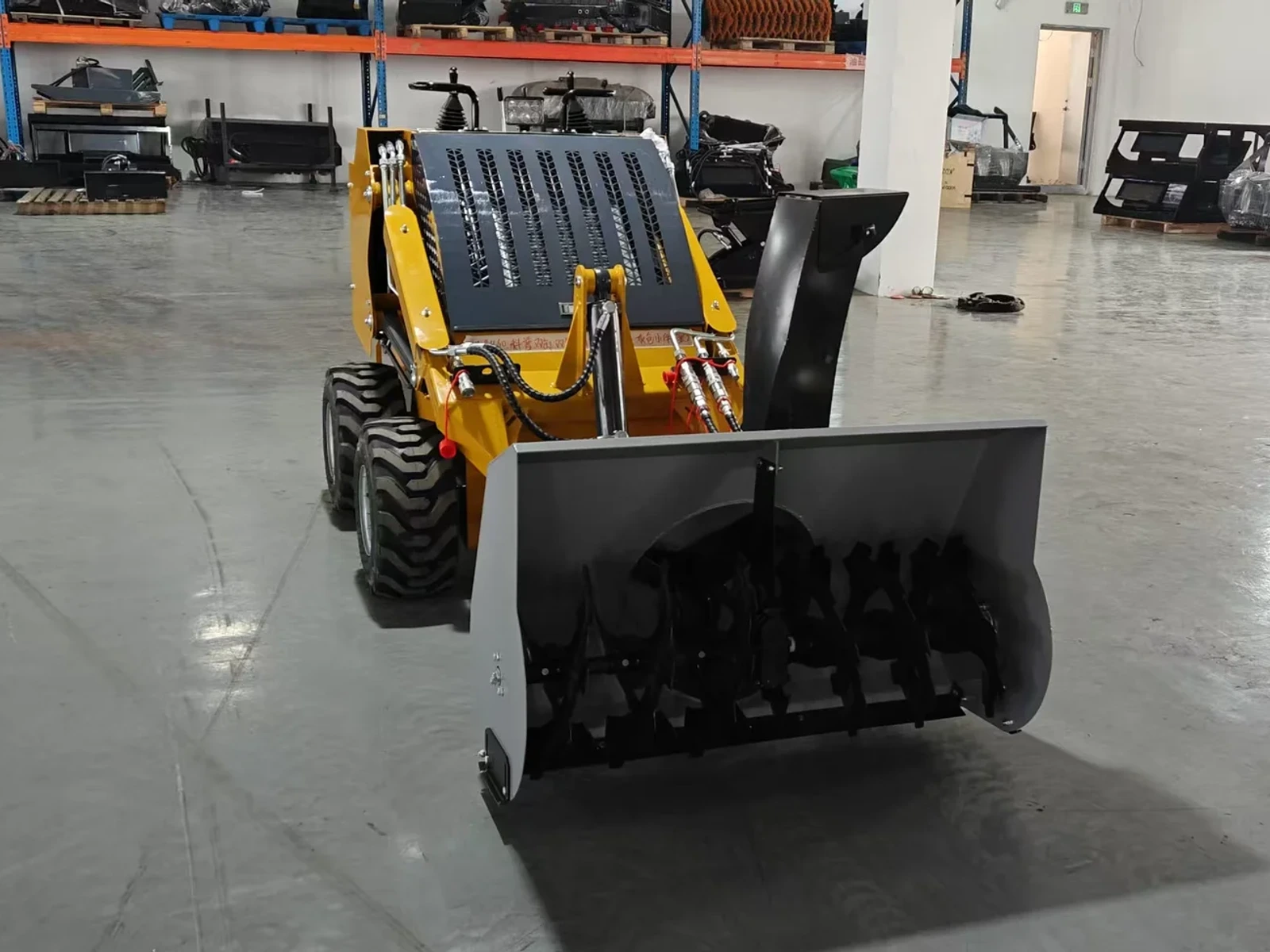

Snow Blower view 1

Snow clearing | Throwing

Snow Blower

Winter attachment for blowing snow away from travel paths where pushing alone causes spillback or stacking problems.

View attachment

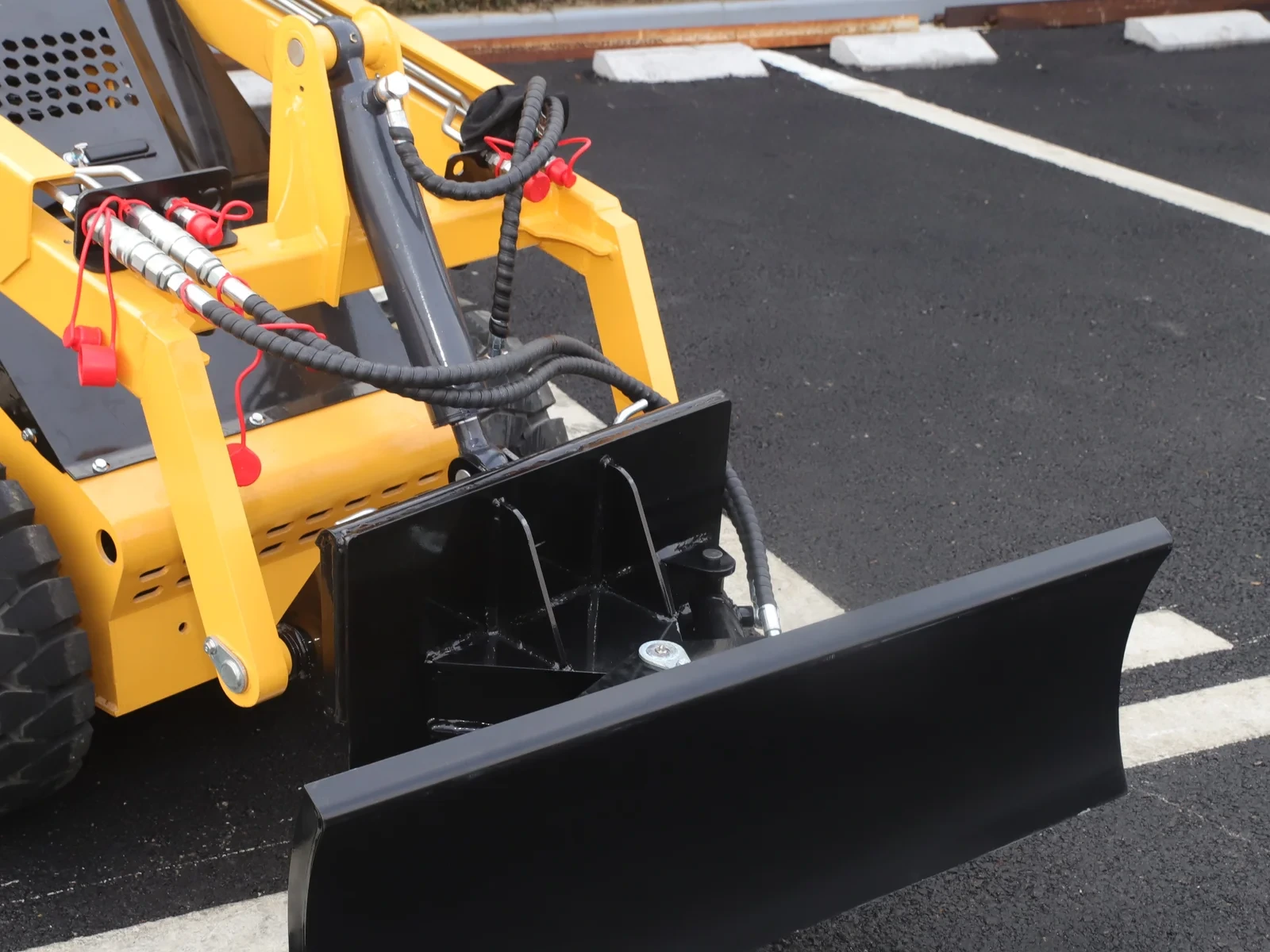

Snow Blade view 1

Snow pushing | Winter access

Snow Blade

Angled blade for fast surface clearing where snow can be windrowed or pushed to an edge efficiently.

View attachment

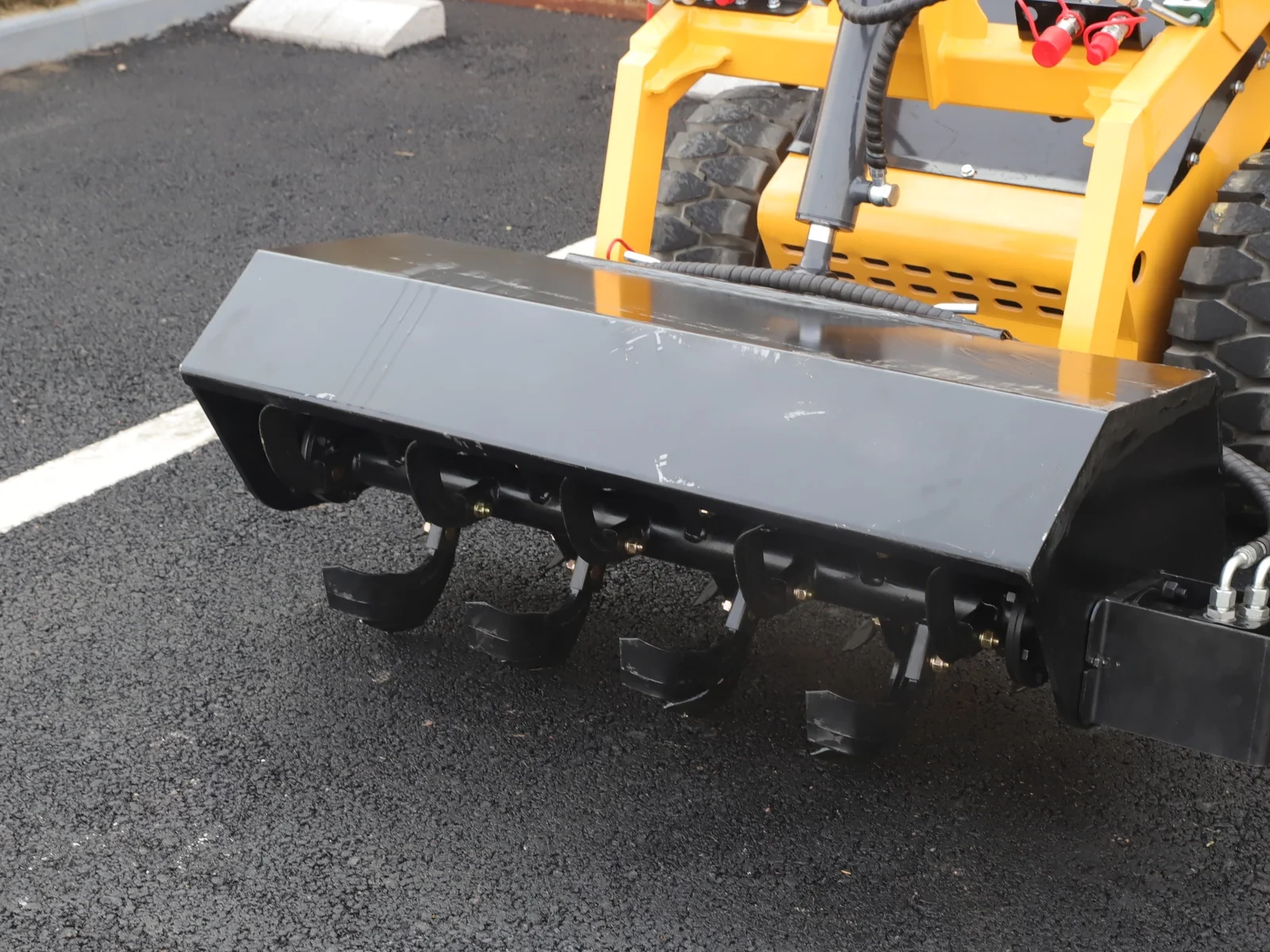

Rotary Tiller view 1

Cultivation | Soil prep

Rotary Tiller

Soil-working attachment for loosening and preparing cultivated ground on farms, gardens, and landscape projects.

View attachment

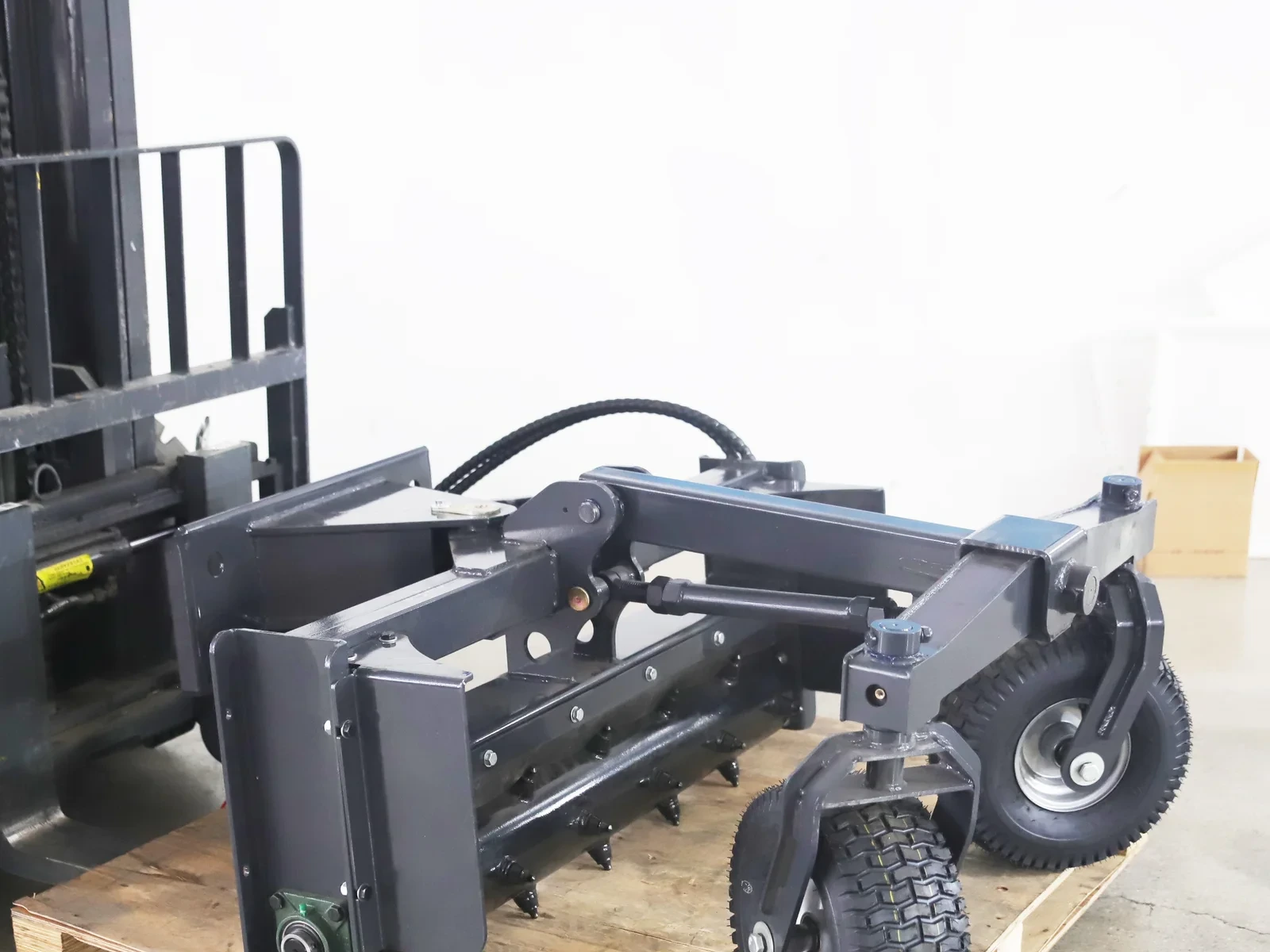

Soil Conditioner view 1

Finish prep | Surface conditioning

Soil Conditioner

Finishing tool for conditioning upper soil layers, separating small stones, and refining surfaces before turf or planting.

View attachment

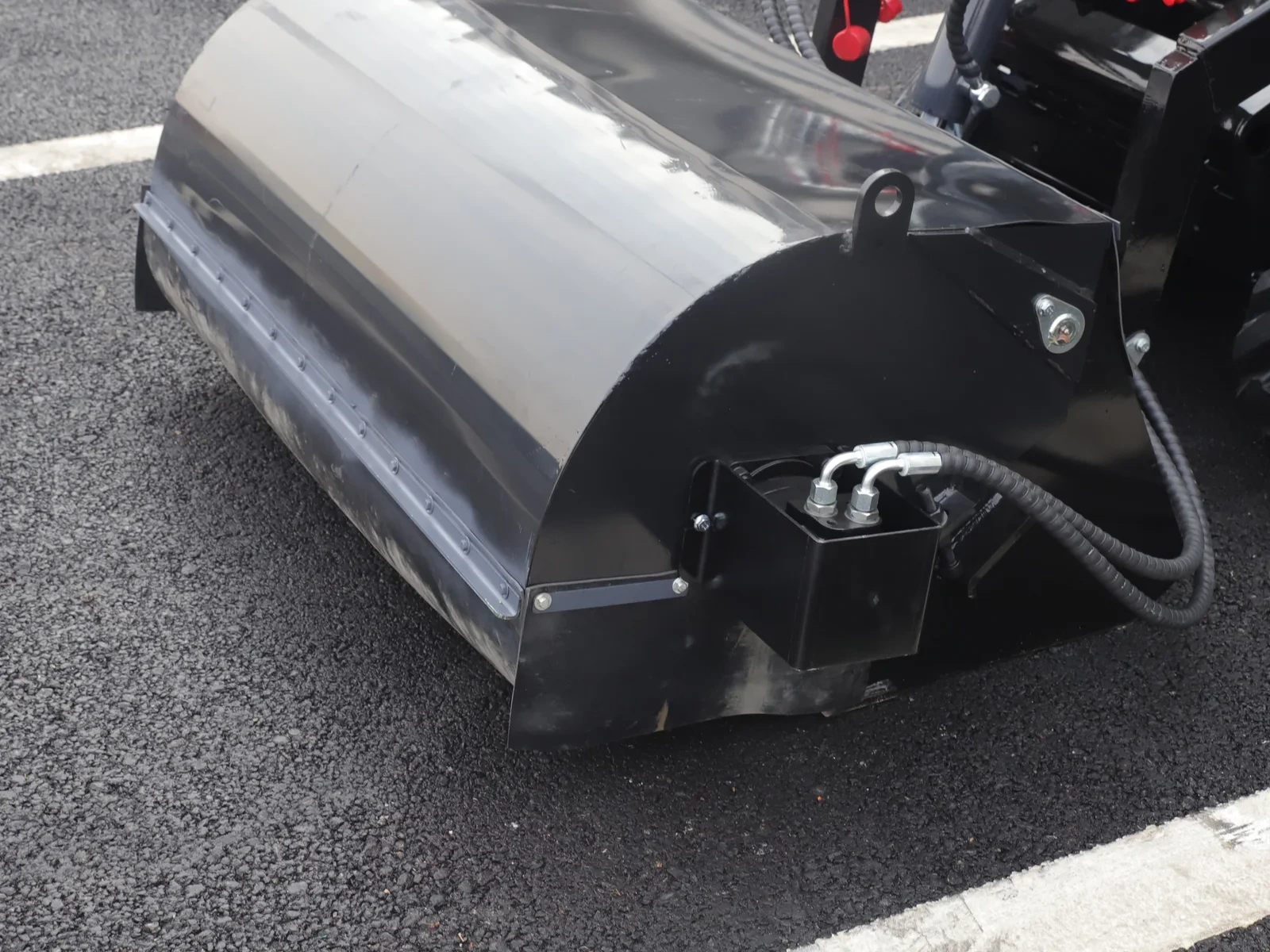

Enclosed Broom view 1

Sweeping | Debris collection

Enclosed Broom

Pickup sweeper attachment that gathers debris while controlling dust better than an open broom pass.

View attachment

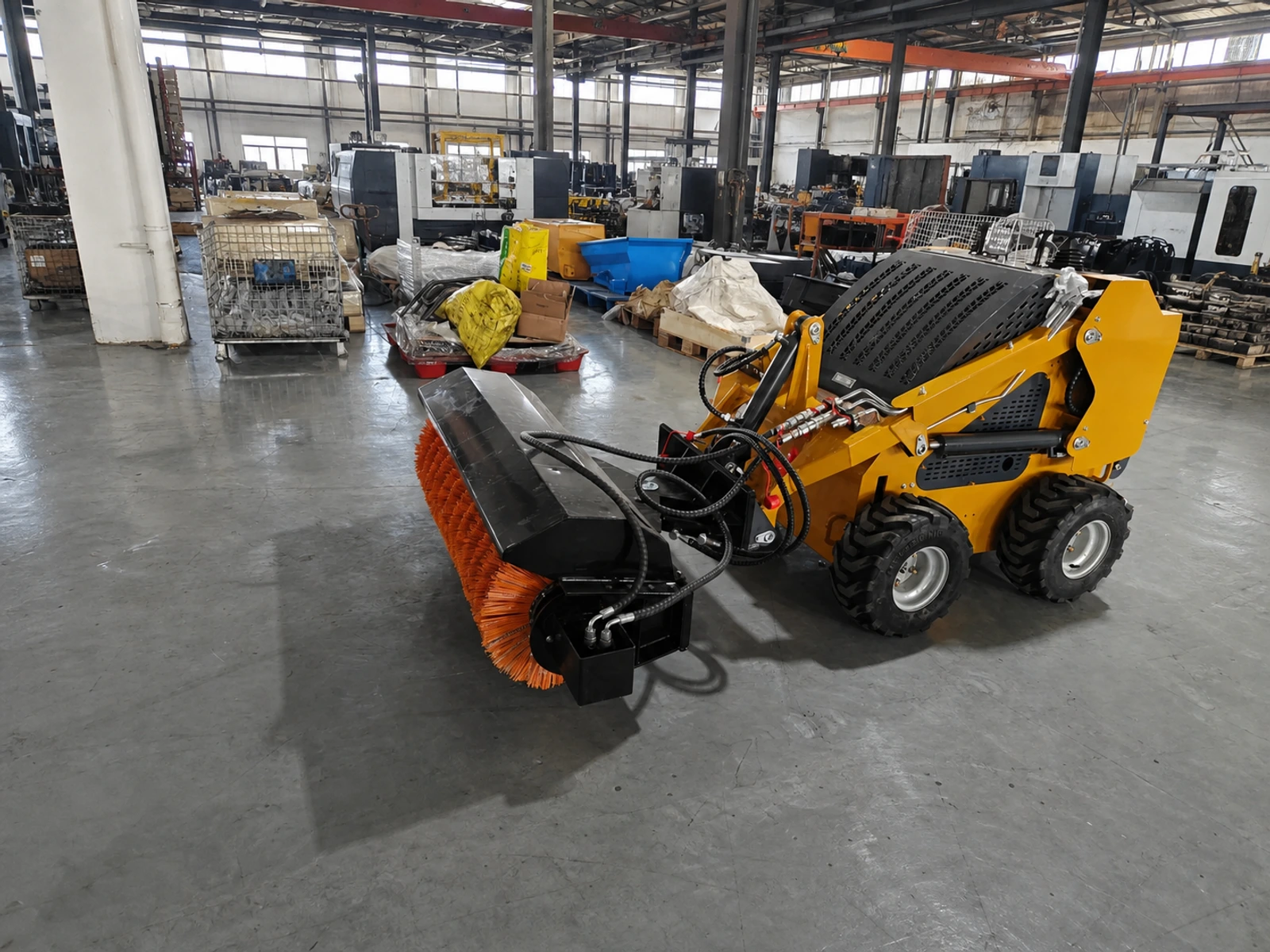

Angle Broom view 1

Open broom | Surface cleanup

Angle Broom

Angled brush tool for windrowing debris, light snow, and loose material away from travel paths and edges.

View attachment

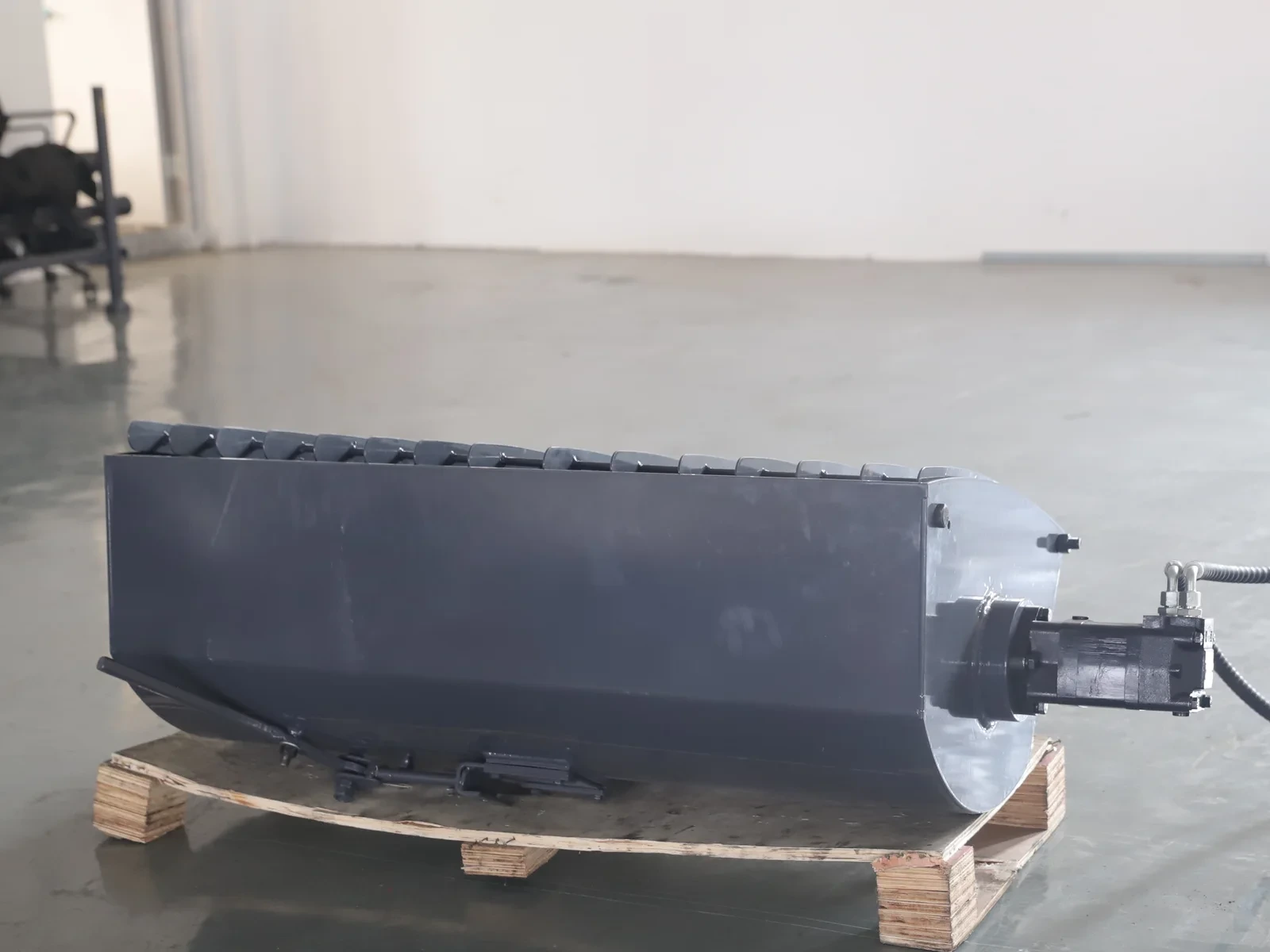

Mixer Bucket view 1

Concrete mixing | Batch delivery

Mixer Bucket

Bucket-style mixer that blends smaller concrete batches and places them where wheelbarrow transfer wastes time.

View attachment

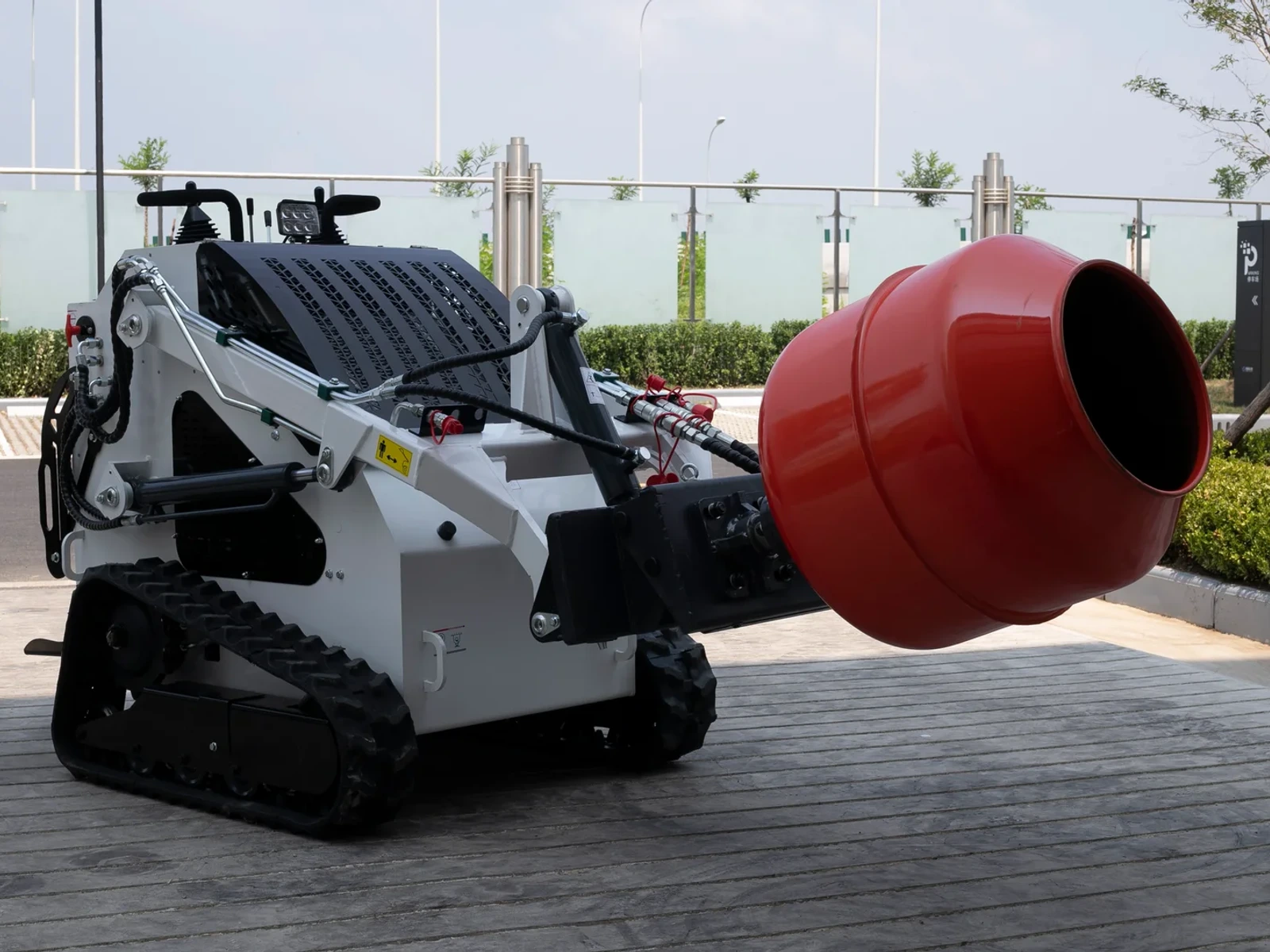

Mixer Drum view 1

Drum mixing | Mortar and concrete

Mixer Drum

Rotating drum attachment for repeatable smaller-batch mixing where a dedicated tow mixer is impractical.

View attachment

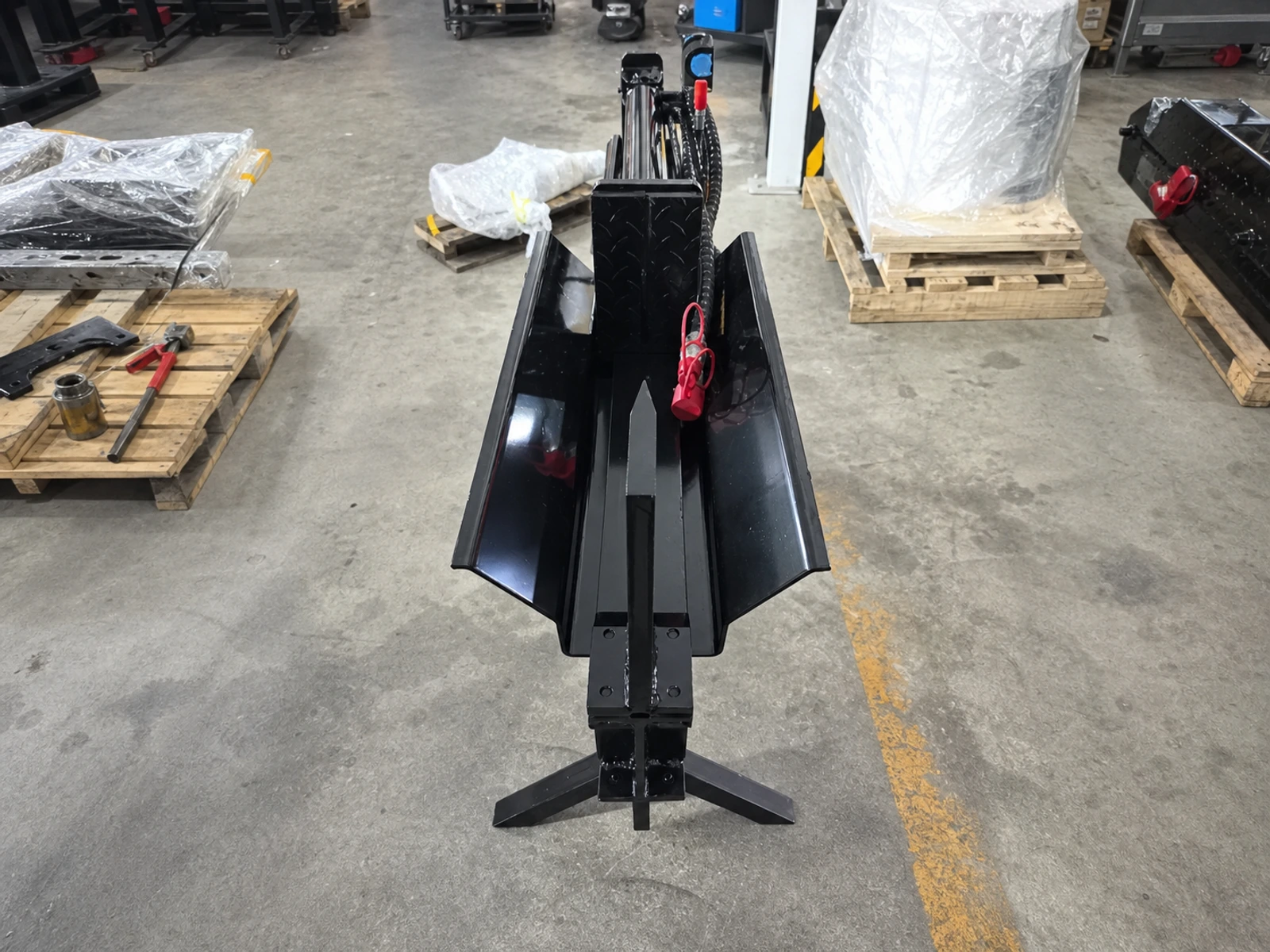

Log Splitter view 1

Splitting | Firewood prep

Log Splitter

Timber splitting attachment for estates, yards, and firewood operations where the loader already handles the stock.

View attachment

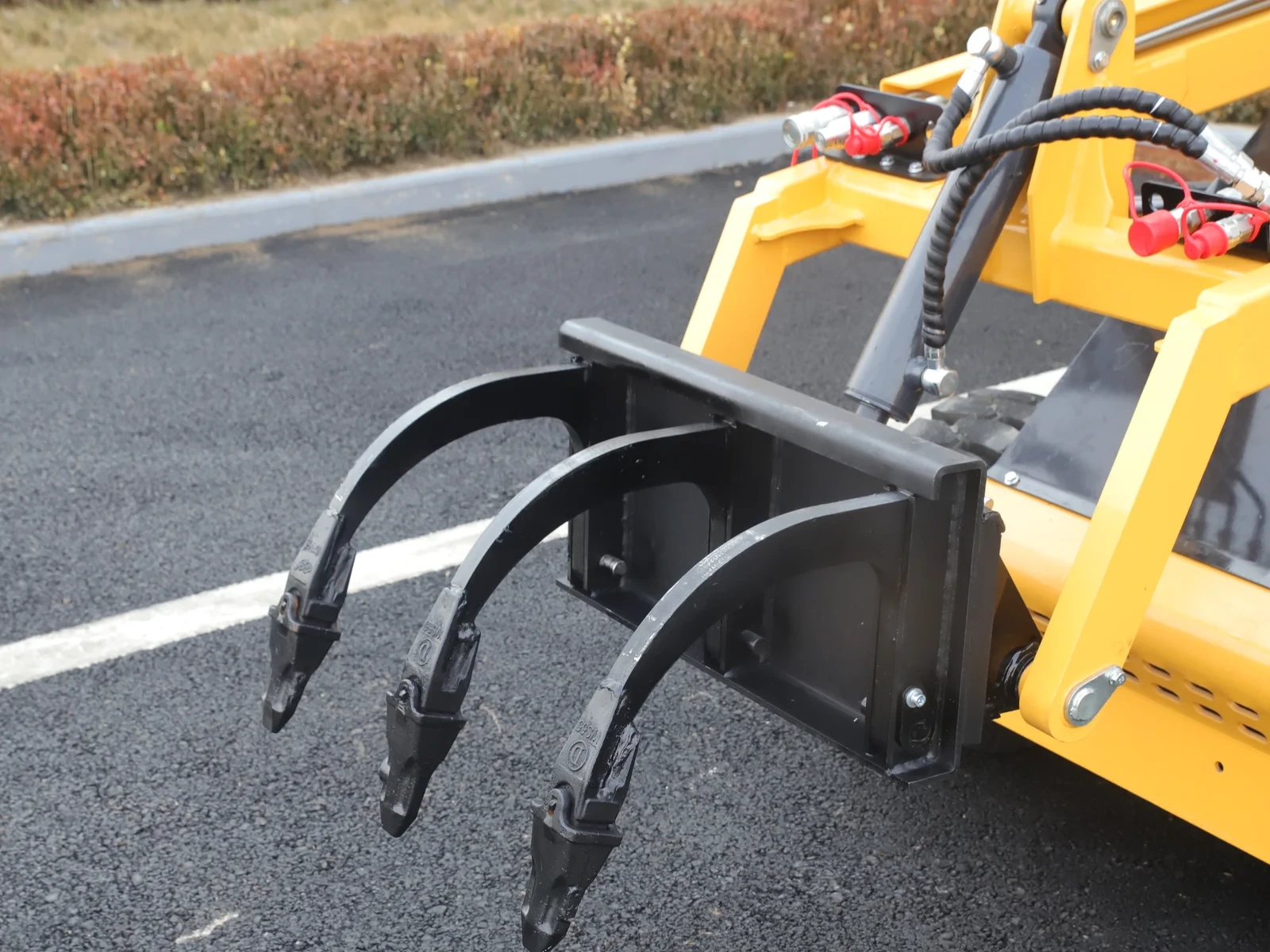

Ripper view 1

Ground loosening | Hard soil

Ripper

Tooth attachment for breaking compacted material, opening root zones, and starting excavation in resistant ground.

View attachment

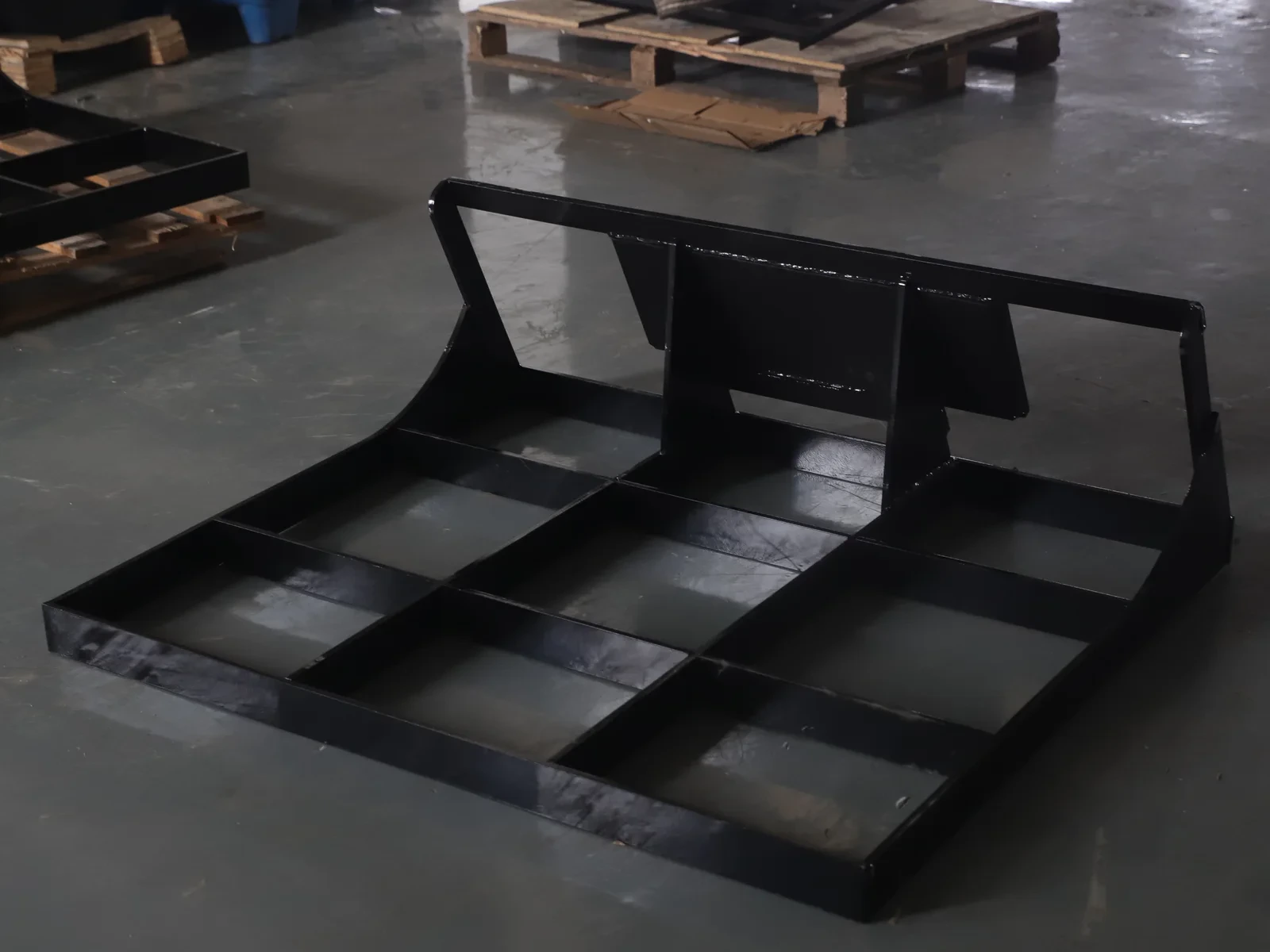

Dozer Blade view 1

Grading | Backfilling

Dozer Blade

Blade attachment for pushing, leveling, and spreading loose material where a bucket is too blunt for the finish.

View attachment

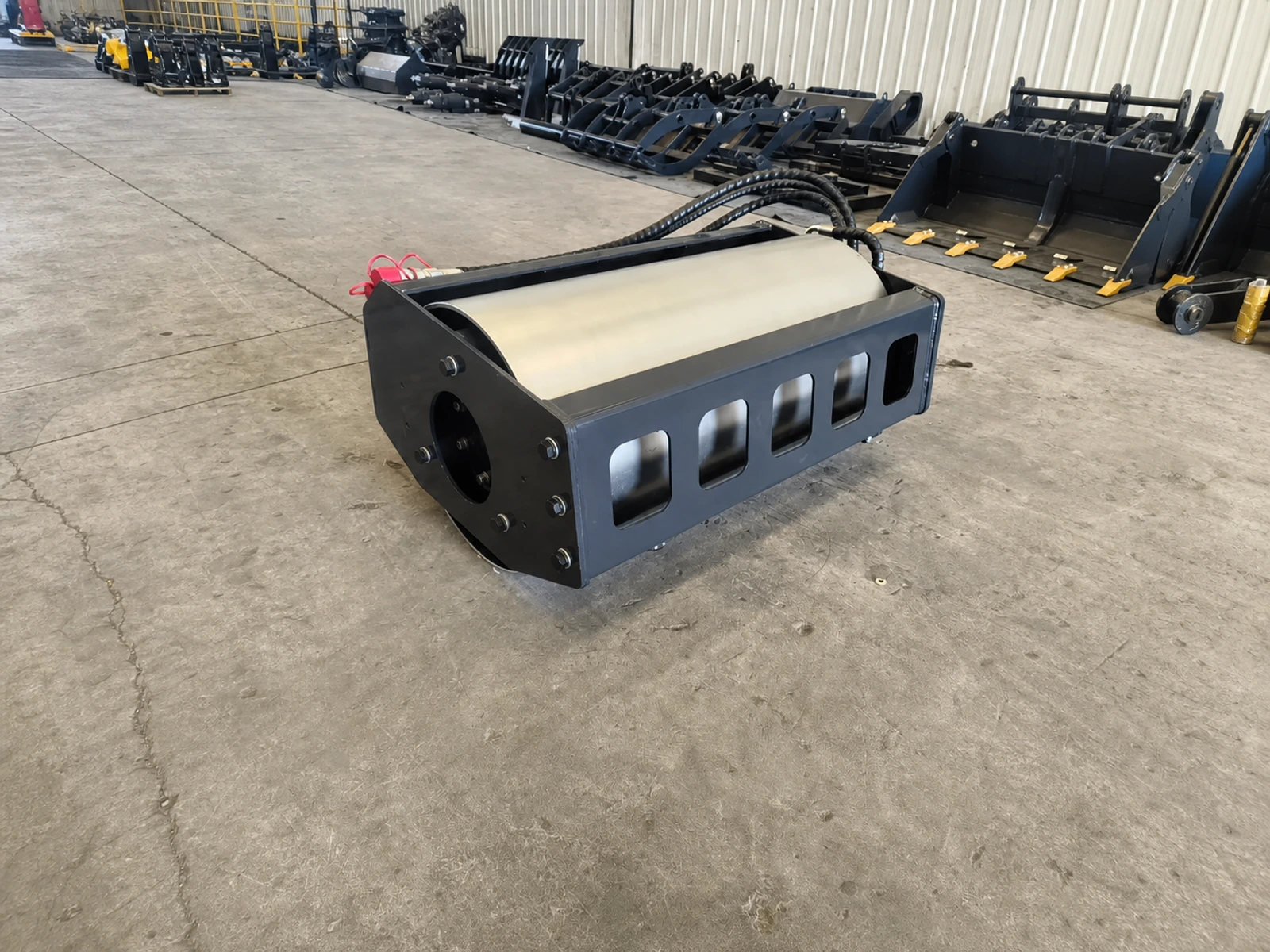

Roller Compactor view 1

Compaction | Patch works

Roller Compactor

Roller-format attachment for compacting narrow runs and localized repair areas with the same carrier already on site.

View attachment

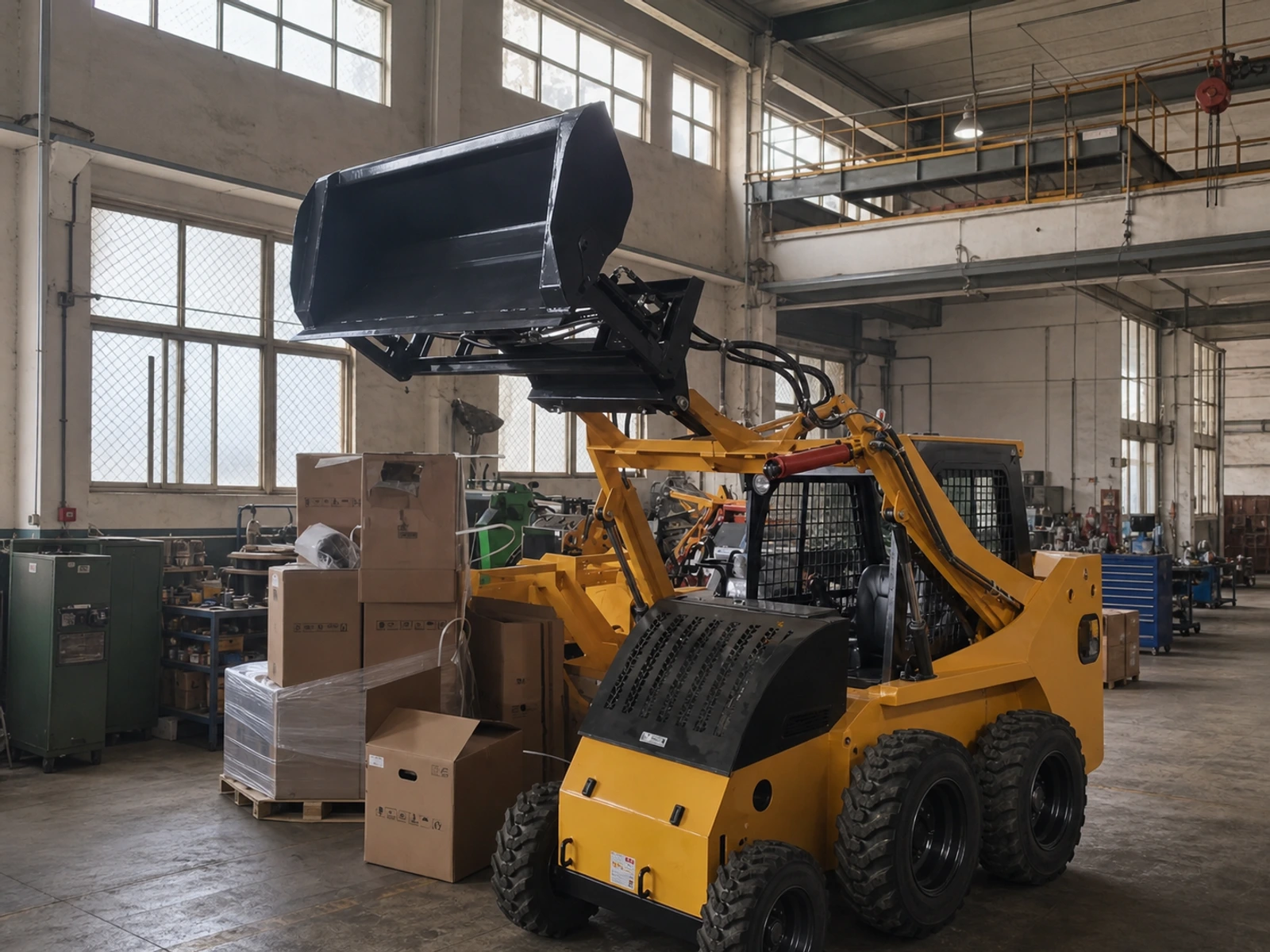

High Dump Bucket view 1

Elevated discharge | Loading height

High Dump Bucket

High-tip bucket format for loading above standard bucket dump height on compact loader material-handling jobs.

View attachment
Skid steer tree shear attachment in use

Tree cutting | Land clearing

Tree Shear

Tree shear for selective cutting and controlled handling of woody growth before it becomes a clearing or disposal problem.

View attachment
Skid steer aerial work platform attachment

Elevated access | Maintenance

Aerial Work Platform

Work-platform attachment for controlled access to elevated maintenance points where a compact loader is already on site.

View attachment
Skid steer tire handler attachment

Tire handling | Secure grip

Tire Handler

Specialist tire-handling attachment for workshops, yards, and fleet-support operations moving awkward round loads.

View attachment
Skid steer root grapple attachment

Root handling | Material sorting

Root Grapple

Root grapple for land clearing and cleanup work that needs a secure grip with less carryover of loose soil.

View attachment
Skid steer industrial grapple attachment

Bulk handling | Sorting

Industrial Grapple

Heavy-duty grapple for controlled handling of loose industrial material, bulky waste, and uneven loads.

View attachment
Skid steer sweeper attachment

Surface cleanup | Site maintenance

Sweeper

General-purpose sweeper for routine surface cleanup where a compact loader can cover more area than manual tools.

View attachment

Quote

Quote 06Q

Email info@terracub.com or send a WhatsApp message with your quantity, project region, and required attachments.

Request a quoteWhatsapp us
