Rotary Dump
Mini Dumper

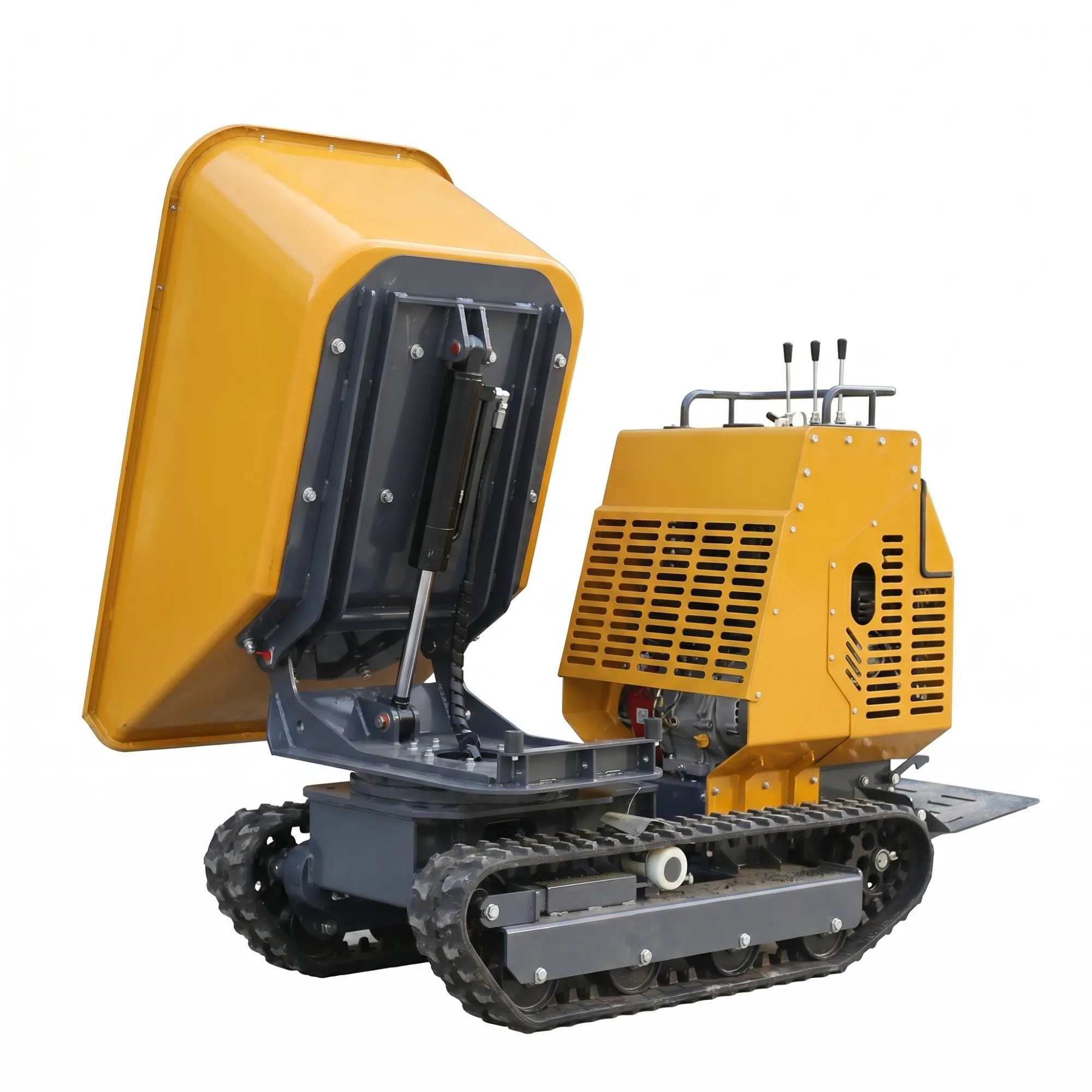

The PIVOT 1200 carries 1,200 kg and rotates the bucket 180° in either direction without repositioning the machine. Briggs & Stratton 420 cc, 13.5 HP petrol engine. Built for commercial excavation and confined heavy-load sites. Factory-direct FOB.
Where it works
Built for Heavy Commercial Work
Commercial Excavation
Move 1,200 kg per haul on commercial building sites. Rotate the bucket sideways to discharge into trenches or skip bins alongside excavations without turning the machine.
Demolition & Clearance
Handle heavy rubble, broken concrete, and compacted fill on confined urban demolition sites. 180° rotation eliminates the reversing manoeuvres that slow down clearance work.
Confined Heavy Hauls
Access sites a wheeled loader cannot enter. The 850 mm chassis navigates internal corridors, basement ramps, and narrow service roads while carrying loads up to 1.2 tonnes per cycle.
Key features
What Makes It Work
180° Rotary Dump
The bucket rotates 180° left or right from the forward position. Discharge to either side without repositioning the machine — critical on confined sites where turning space is limited.
1,200 kg Payload
594 dm³ bucket and 1,200 kg max load — 2.4× the capacity of the 500 kg models. Fewer haul cycles per job means faster site clearance and lower operating cost per tonne moved.
Briggs & Stratton 420 cc
13.5 HP petrol engine with consistent torque output under heavy load. 6.5 L fuel tank for extended site runs. Reliable cold starts in low-temperature conditions.
850 mm Chassis
Wide enough for stability under heavy loads, narrow enough for internal site access. 1,000 mm track contact length for ground pressure distribution on soft or loose terrain.
Full specifications
PIVOT 1200 — Spec Sheet
| Net Weight | 850 kg |
| Max. Payload | 1,200 kg |
| Bucket Capacity | 594 dm³ |
| Chassis Width | 850 mm |
| Track Width | 180 mm |
| Track Contact Length | 1,000 mm |
| Ground Clearance | 110 mm |
| Dump Type | Hydraulic self-dump, 90° |
| Rotation | 180° (left / right) |
| Travel Speed | 5 km/h |
| Min. Turn Radius | 1,300 mm |
| Hillclimb | 20° |
| Engine | Briggs & Stratton |
| Displacement | 420 cc |
| Rated Power | 13.5 HP / 3,600 rpm |
| Fuel Type | 92# Gasoline |
| Fuel Tank | 6.5 L |
Buyers
Who Orders the PIVOT 1200
Commercial Contractors
Multi-trade sites where speed matters. Rotary dump eliminates turnaround time on confined commercial foundations, podium decks, and internal courtyard excavations.
Plant Hire Companies
High-utilisation hire fleet machine. The rotary capability differentiates from standard dumpers. Strong demand from demolition, civil, and residential builder segments.
Demolition Crews
Load heavy rubble and rotate to discharge sideways into a skip or crusher inlet. Significantly faster clearance rates than reversing and re-positioning a standard dumper.
